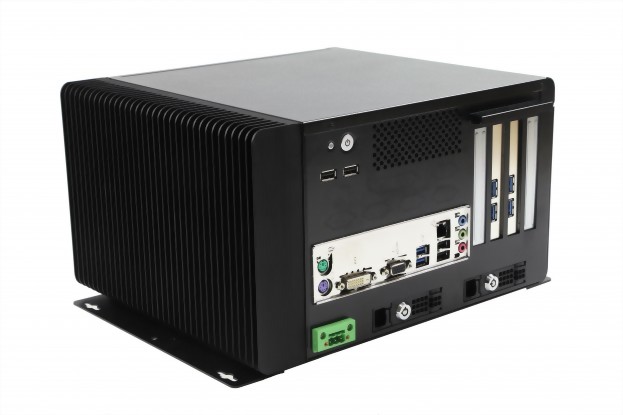

12th Gen Powerfull Embedded Controller

● 12th Gen Alder Lake Intel® Core/i3/i5/i7Processors
● 8 x USB, 2 x RS232/422/485, 3 x GLAN, 2 x DP ++
● 1 x PCI e x 16, 1 x E key, 1 x M key, 1 x B Key
● Wall mount installation
Model : PE150SW, PE151SW, PE150FW, PE151FW


Specifications

Model No.

     PE150SW

                     PE151SW

                    PE150FW

                 PE151FW

System

CPU

                                   12th Gen Alder Lake Intel® Core/Pentium/Celeron/i3/i5/i7Processors

CPU socket

                        LGA 1700 socket

Memory

4 x 288-pin DDR4 3200Mhz SODIMM up to 128GB

Chipset

R680 Express

Q670 Express

H/W Monitor

Watch Dog

 Timer 256 Level

Security

TPM

Nuvoton TPM 2.0 ( Opt : MOQ required )

I/O Ports

RS232/422/485

  2 ( RS232 w/ power )

DP ++

2

VGA

1

HDMI 2.0a

1

GLAN

                                          2 x Intel I225LM PCI e ( 10/100/1000/2.5G speeds) only Core i9 / i7 /i5 support iAMT                                      2 x Intel x550-AT2 ( 10 GBASE-T/ 1 GbE/100 Mbps)

USB

4 x USB 3.2 Gen 2       4 x USB 3.2 Gen 1

Audio

1 x Line out 1 x Mic in

1 x Line-in ( opt by request MOQ required )

Storage

Storage

                                                                                   4 x SATA 3.0 for RAID 0/1/5/10

Expansion

PCI e x 16 ( Gen 5 )

1

PCI e x 4  ( Gen 4 )

2

PCI e x 4 or PCI e x 1

1 x PCI e x 4 ( Gen3 )

1 x PCI e x 1

M.2

             1 x E Key ( PCI e / USB 2.0 / Intel CNVi support)( Discrete WIFI 6E support) 2230

               1 x M Key ( PCI e x 4 / SATA /Intel Optane Memory support) 2242/2260/2280

                   1 x M Key ( PCI e x 4 / Intel Optane Memory support) 2242/2260/2280

Power Requirement

Power Requirement

DC in 19 ~ 24V with 3 Pin power terminal block for DC in 19V external power adapter

            500W internal single power supply

Fanless / No Graphic card : 150W

Fan / Graphic card : 500W

OS support

OS support

Windows 10 IoT Enterprise 64-bit          Linux

Mechanical & Environmental

Operation Temp.

                         0 ~ 50°C

Storage Humidity

10 ~ 90%, non-condensing

Mounting

                     wall mount

Construction

                        Aluminum + Steel

Dimension (WxHxD)

                           TBD

Weight

                           TBD

Optional

P/N: 2390000003

                       External antenna (WIFI)

P/N: 3121700002

                    External antenna (5GB LTE module)

P/N: 3121700001

  External antenna (4GB LTE module with SIM socket)

**Specifications are subject to change without notice.

Ordering Information

PE150SW08128

Fanless Powerful barebone embedded controller with W480, 8GB DDRR 4 So-DIMM. TLC M.2 128GB SSD 1 x DC in external power adapter

PE151SW08128

Fanless Powerful barebonee embedded controller with Q470, 8GB DDRR 4 So-DIMM. TLC M.2 128GB SSD 1 x DC in external power adapter

PE150FW08128

Fan Powerful barebone embedded controller with W480, 8GB DDRR 4 So-DIMM. TLC M.2 128GB SSD 1 x Internal single power supply

PE151FW08128

Fan Powerful barebone embedded controller with Q470, 8GB DDRR 4 So-DIMM. TLC M.2 128GB SSD 1 x Internal single power supply
