What is Optical Bonding?

Some factors can affect displays’ readability. The most common reason is “fog”, or "condensation". Another factor is the reflection of sunlight. Both issues can be resolved by using optical bonding.

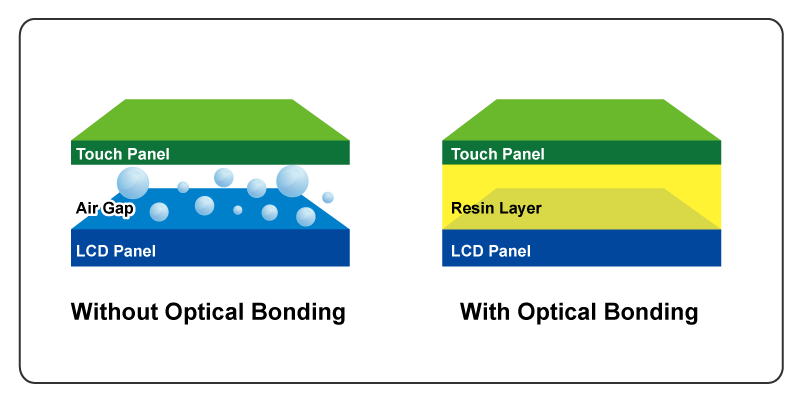

Optical bonding is implemented by either liquid or sheet form OCA. Optical bonding is the process that touch panel and LCD panel together with optical clear adhesives. Optical Bonding uses liquid gel to laminate/affix the cover glass or touchscreen on the front of the LCD panel. It eliminates air gap between the touch panel and the display.

In addition, optical bonding significantly reduces internal reflections, contributes to the brightness and contrast of the display, enhances the robustness of the system, and strengthens resistance to shock and vibration.

What are the benefits of optical bonding?

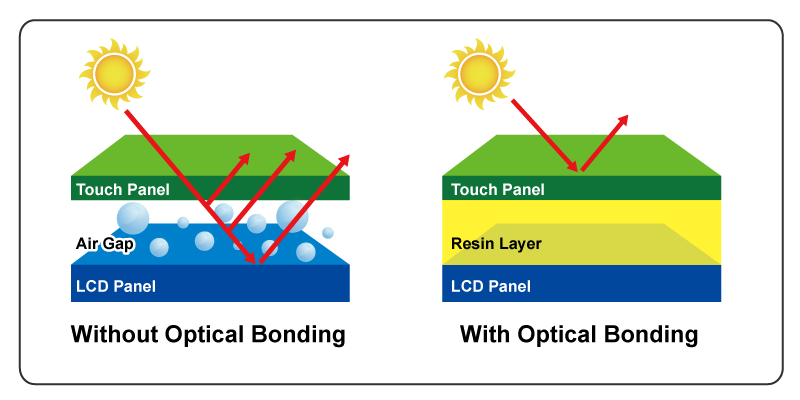

(1) Reduce reflections
Optical bonding eliminates reflections between the display and the touchscreen. It reduces glare effects and mirroring. It improves sunlight readability.

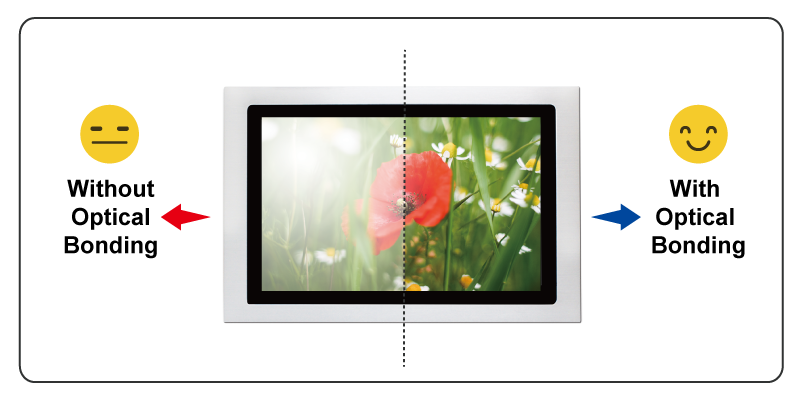

(2) Better Readability
It also increases the contrast and the optical brilliance of panel.

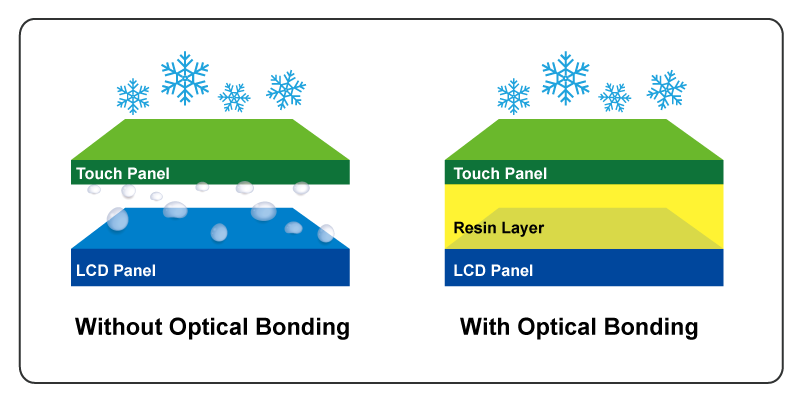

(3) No Condensation
In environments with extreme temperatures, the screens are susceptible to water vapor condensation and penetration into air gaps. Optical bonding that fills air gaps effectively prevents condensation and fogging.

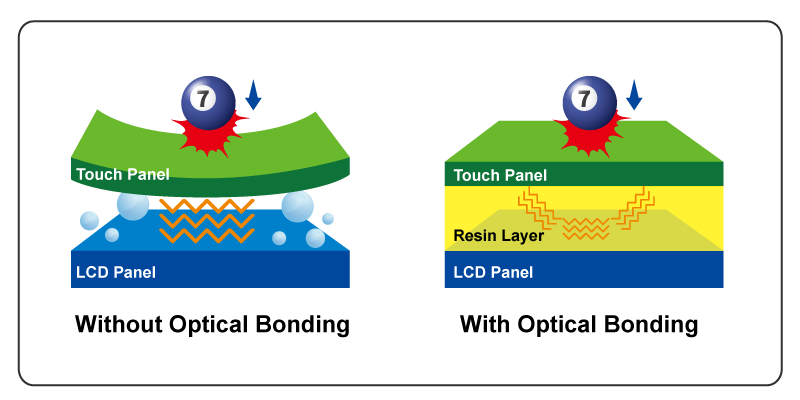

(4) Enhance Ruggedness
Optical bonding not only improves the impact of scratches resistance but also enhances safety against broken glass.

(5) Improve Sensitivity
The touch monitor with optical bonding provides accurate touch experience and make it easy for users to operate.

(6) Increase Anti-Vibration Capabilities
Optical bonding increases the resistance to mechanical shock and vibration. This is especially useful for military and transportation applications.

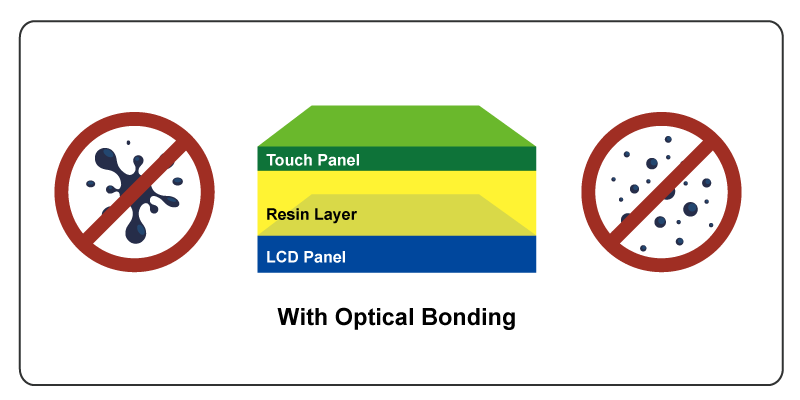

(7) No dust and dirt particles
Optical bonding can resist the stains, dirt and dust.
