WM Series - 5W Resistive

Kingdy’s WM series –Full IP65 Stainless steel 5 wire resistive monitor is a kind of products which are adopt using in harsh environmental conditions. Compare with general factories, some factories are full with dust, oil and chemicals; some factory equipment as food processing machine and pharmaceutical equipment needs to be flushed with plenty of water to avoid bacteria breeding or products to become rotten to reach the local requirements of food hygiene and safety standards; or some outdoor occasions are usually attacked by heavy rain, but there cannot set up any shelter to keep the operation of the device. In this time, the product function of waterproof  is very important and helpful to avoid any damage of the device. For this reason, the full IP65 display are often applied in food processing, chemical, petrochemical, pharmaceutical, butchery and mining …etc. severe industrial environmental conditions.



The waterproof function is one of the main features of this kinds of touch panel display. Besides, The displays adopt 15”, 17”,19” 4:3 ratio panel, there are 16:9 ratio 15.6", 21.5” 24" panel can refer . The same with kindgy others touch panel monitors, they adopt mainstream LED Backlight module. Not only save power, but also let the display output color can be more vivid. In the part of I/O ports, kingdy use M12 waterproof connector to connect the device. The main output surface is VGA Ports, HDMI ports, the other I/O ports is USB or RS232 for touch screen.


If the temperature range of the environment is higher, kingdy also offer wide temperature models for reference. In order to let the full IP65 display more durable or keep from glare, kingdy also have optional AR glass item to protect the panel. If your display is applied for semi outdoor and special usage, Optional Bonding panel and sunlight readable can be applied according to customer demand..



View:

Full IP65 Stainless 15.6" Touch Monitor (Wide Temp.)

● Fanless and rugged housing design
● Wide temperature : -10~60°C
● 5 wires resistive touch solution
● Resolution 1920 x 1080 dpi
● Full 304 IP65 6 sides stainless enclosure
● VESA mount & Yoke mount
● Full 316 IP65 6 sides stainless enclosure optional
● RS232 for remote control function optional
● Optical bonding solution

Full IP65 Stainless 15.6" Touch Monitor

● Fanless and rugged housing design
● 5 wires resistive touch solution
● Resolution 1920 x 1080 & 1366 x 768 dpi
● Full 304 IP65 6 sides stainless enclosure
● VESA mount & Yoke mount
● Full 316 IP65 6 sides stainless enclosure optional
● RS232 for remote control function optional
● Optical bonding solution

Full IP65 Stainless 21.5" Touch Monitor (WT)

● Fanless and rugged housing design
● Wide temperature: -20 ~ 60°C
● 5 wires resistive touch solution
● Resolution : 1920 x 1080 dpi
● Full 304 IP65 6 sides stainless enclosure
● VESA mount & Yoke mount
● Full 316 IP65 6 sides stainless enclosure optional
● RS232 for remote control function optional
● Optical bonding, high brightness sunlight readable solution

Full IP65 Stainless 15" Touch Monitor

● Fanless and rugged housing design
● 5 wires resistive touch solution
● Resolution 1024 x 768 dpi
● Full 304 IP65 6 sides stainless enclosure
● VESA mount & Yoke mount
● Full 316 IP65 6 sides stainless enclosure optional
● RS232 for remote control function optional
● Optical bonding, high brightness sunlight readable solution

Full IP65 Stainless 17" Touch Monitor

● Fanless and rugged housing design
● 5 wires resistive touch solution
● Resolution 1280 x 1024 dpi
● Full 304 IP65 6 sides stainless enclosure
● VESA mount & Yoke mount
● Full 316 IP65 6 sides stainless enclosure optional
● RS232 for remote control function optional
● Optical bonding, high brightness sunlight readable solution

Full IP65 Stainless 19" Touch Monitor

● Fanless and rugged housing design
● General temperature & Wide temperature
● Resolution 1280 x 1024 dpi
● 5 wires resistive touch solution
● Full 304 IP65 6 sides stainless enclosure
● VESA mount & Yoke mount
● Full 316 IP65 6 sides stainless enclosure optional
● RS232 for remote control function optional
● Optical bonding, high brightness sunlight readable solution

Full IP65 Stainless 21.5" Touch Monitor

● Fanless and rugged housing design
● 5 wires resistive touch solution
● Resolution 1920 x 1080 dpi
● Full 304 IP65 6 sides stainless enclosure
● VESA mount & Yoke mount
● Full 316 IP65 6 sides stainless enclosure optional
● RS232 for remote control function optional
● Optical bonding, high brightness sunlight readable solution

Full IP65 Stainless 24" Touch Monitor

● Fanless and rugged housing design
● 5 wires resistive touch solution
● Resolution 1920 x 1080 dpi
● Full 304 IP65 6 sides stainless enclosure
● VESA mount & Yoke mount
● Full 316 IP65 6 sides stainless enclosure optional
● RS232 for remote control function optional
● Optical bonding, high brightness sunlight readable solution

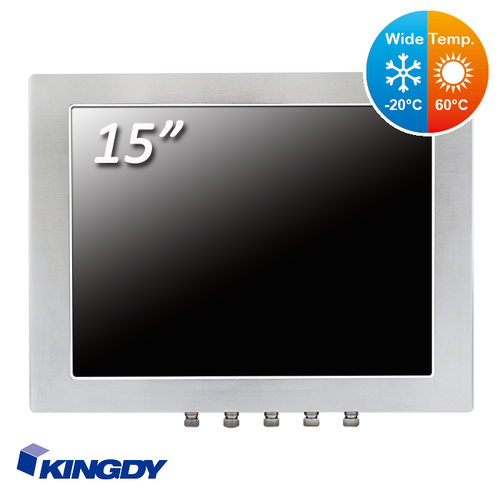

Full IP65 Stainless 15" Touch Monitor (Wide Temp.)

● Fanless and rugged housing design
● Wide temperature : -20~60°C
● 5 wires resistive touch solution
● Resolution 1024 x 768 dpi
● Full 304 IP65 6 sides stainless enclosure
● VESA mount & Yoke mount
● Full 316 IP65 6 sides stainless enclosure optional
● RS232 for remote control function optional
● Optical bonding, high brightness sunlight readable solution

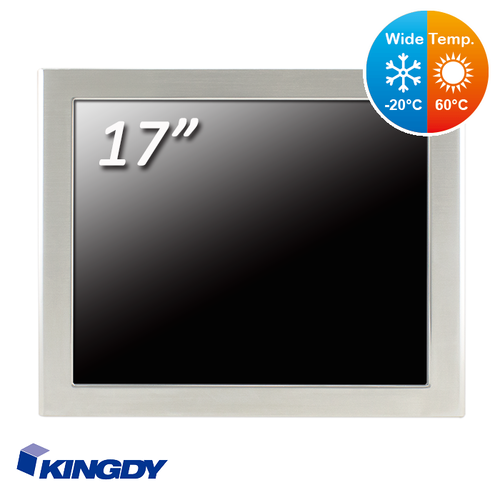

Full IP65 Stainless 17" Touch Monitor (Wide Temp.)

● Fanless and rugged housing design
● Wide temperature : -20~60°C
● 5 wires resistive touch solution
● Resolution 1280 x 1024 dpi
● Full 304 IP65 6 sides stainless enclosure
● VESA mount & Yoke mount
● Full 316 IP65 6 sides stainless enclosure optional
● RS232 for remote control function optional
● Optical bonding, high brightness sunlight readable solution

Full IP65 Stainless 19" Touch Monitor (Wide Temp.)

● Fanless and rugged housing design
● Wide temperature : -20~60°C
● 5 wires resistive touch solution
● Resolution 1280 x 1024 dpi
● Full 304 IP65 6 sides stainless enclosure
● VESA mount & Yoke mount
● Full 316 IP65 6 sides stainless enclosure optional
● RS232 for remote control function optional
