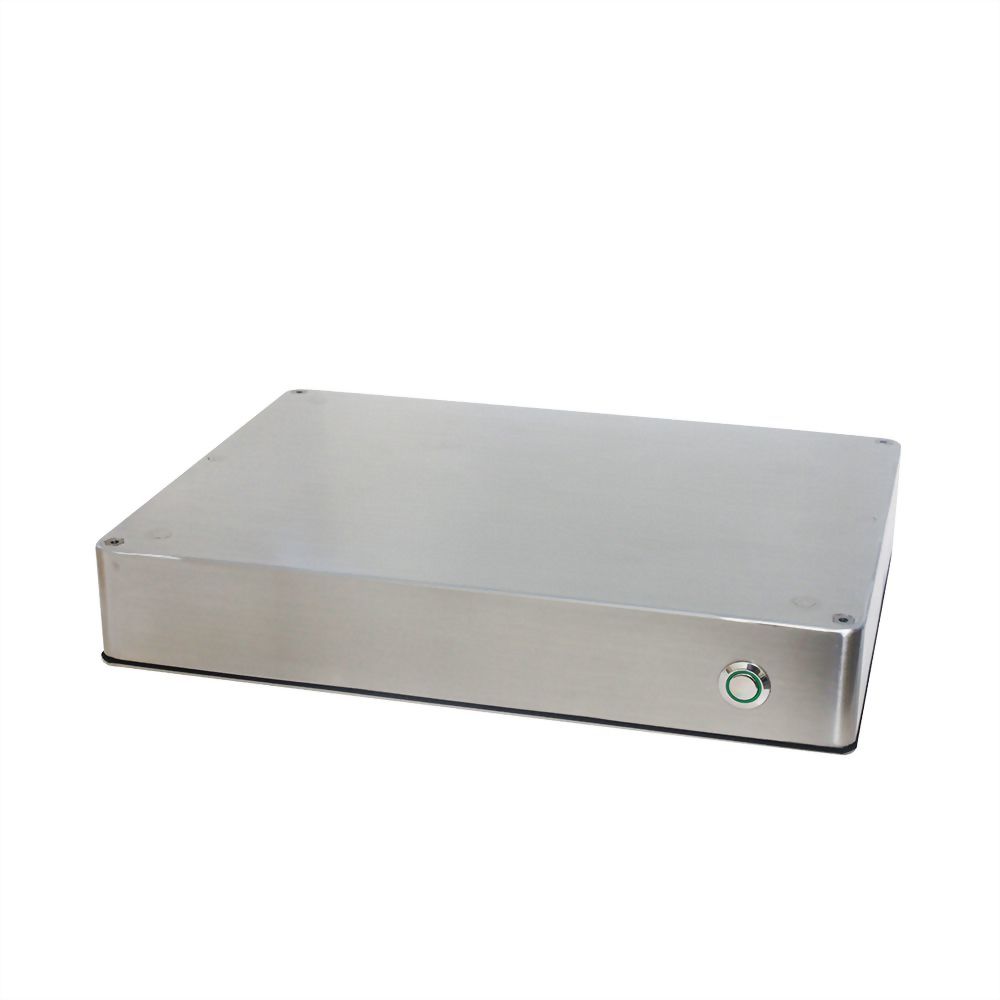

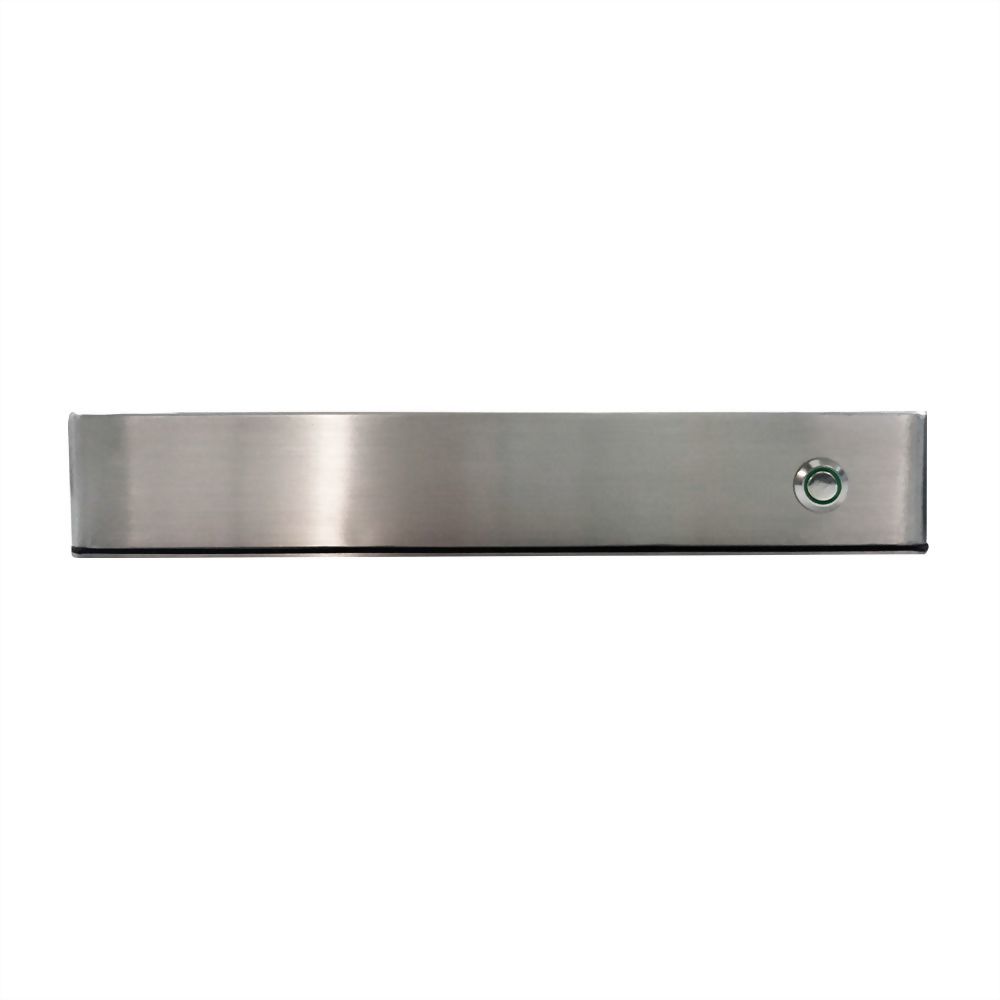

Wide Temp Intel E3940 Full IP65 Box PC

● Fanless and rugged housing
● Wide temperature: -40~75°C
● Intel® Celeron E3940 Processor
● Full IP65 304 stainless steel enclosure
● All M12 waterproof connectors with cables
● 1 x GLAN, 1 x HDMI, 2 x RS232, 1 x USB
● 2 x Mini PCI-E slot
● Wall mount
● IIoT gateway
Model : FB081WW

Specifications

Model No.

FB081WW

System

CPU

Intel® Celeron Apollo Lake E3940 1.6Ghz, up to 1.8Ghz Processor

Memory

1 x 204-pin DDR3L SODIMM up to 8 GB

H/W Monitor

H/W Monitor

Watch Dog Timer 256 Level

I/O Ports

USB 2.0

2

RS232

2

HDMI

1

GLAN

1

Storage

Storage

1 x SATA 2.0 2.5” HDD/SSD

Expansion

Mini PCI-E

1 x Full size, 1 x Full size with mSATA

Power Requirement

Power Requirement

DC in 12V ~ 24V

OS support

OS support

Win Pro 10 / Embedded Win 10 / Win 10 IoT / Linux Fedora 25, Ubuntu 16.04

Mechanical & Environmental

Operation Temp.

-40~75°C

Storage Humidity

10 ~ 90%, non-condensing

Mounting

Wall mount

Construction

Full stainless steel enclosure

Dimension (WxHxD)

286 x 210 x 50 mm

Weight

TBD

Optional

P/N: 2351206003

Full IP65 Waterproof Power adaptor with European power cord
 ( 60W /
90 ~ 295V AC input / 12V DC output)

P/N: 2352406011

Full IP65 Waterproof Power adaptor with European power cord
(60W /
90 ~ 295V AC input / 24V DC output)

P/N: 2351206004

Full IP65 Waterproof Power adaptor with US power cord
(60W /
90 ~ 295V AC input / 12V DC output)

P/N: 2352406012

Full IP65 Waterproof Power adaptor with US power cord
(60W /
90 ~ 295V AC input / 24V DC output)

P/N: 2340000003

1 x Full IP65 LAN port

P/N: 2390000003

external antenna (WIFI)

P/N: 3121700001

4GB LTE module with SIM socket

**Specifications are subject to change without notice.

Ordering Information

Standard

FB081WW04064

Fanless full IP65 stainless steel box PC , Intel E3940, 4GB DDR III L So-DIMM. TLC mSATA64GB SSD. DC in external power adapter
