Q1. What environments are suitable for the IP Series with 260J?
A1. It is ideal for harsh industrial settings such as food processing, automation, chemical plants, outdoor control stations, and environments requiring full IP65 waterproof protection.

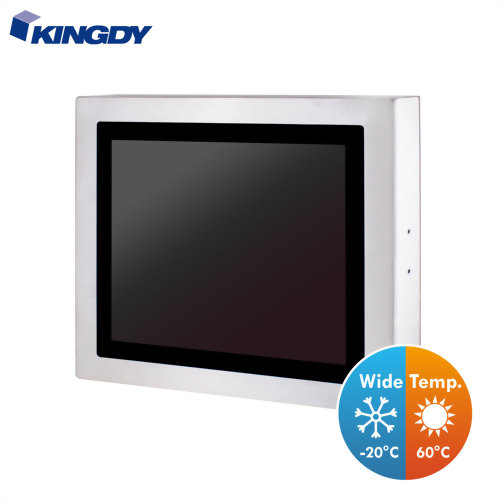

Q2. Does the 260J support wide-temperature operation in the IP Series?
A2. Yes, the IP Series chassis supports wide-temperature operation, allowing the 260J to maintain stable performance in both high-heat and low-temperature environments.
Q3. What waterproof features does this combination offer?
A3. The system includes a full 304 stainless IP65 enclosure with all-sides sealing and M12 waterproof connectors for LAN, USB, and COM ports.
Q4. Can the system run continuously 24/7?
A4. Yes, the fanless structure and industrial-grade stability make it suitable for round-the-clock operation.
Q5. What touch options are available?
A5. You can choose between 5-wire resistive touch for gloved operation or true-flat PCT for high sensitivity and modern HMI design.
Q6. Does the 260J support multiple OS installations?
A6. Yes, it supports Windows and Linux distributions commonly used in industrial applications.
Q7. Is wide-voltage DC-IN supported?
A7. Yes, the IP Series chassis provides wide-voltage input support, ensuring stable power in factory or outdoor conditions.
Q8. Can I customize I/O or add optional modules?
A8. Yes. The IP Series can be customized with additional I/O, storage, Wi-Fi/4G modules, or application-specific features based on project requirements.
|

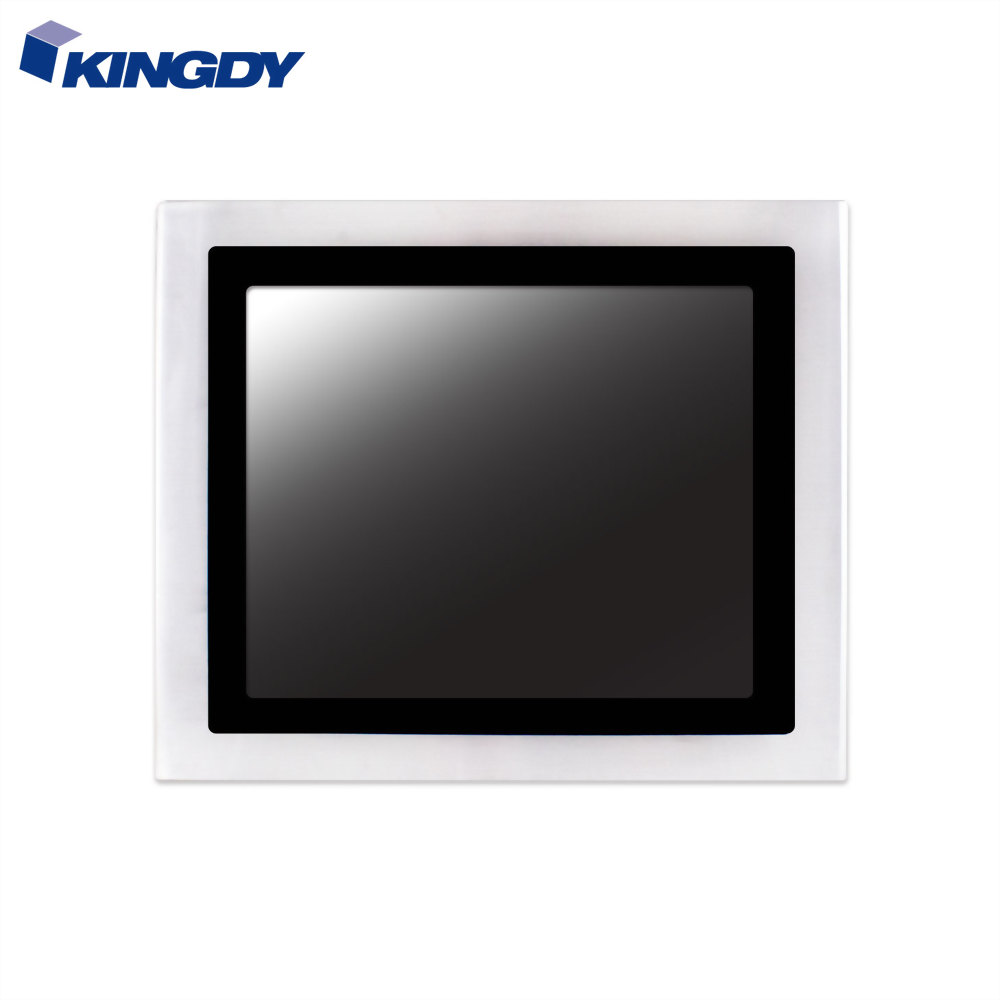

Display for 3:4 Ratio |
|
|||||||||
|
Size |
15" TFT |
17" TFT |
19" TFT |
|
||||||
|
Resolution |
1024 x 768 |
1280 x 1024 |
1280 x 1024 |
|
||||||
|
Colors |
16.7M |
16.7M |
16.7M |
|
||||||
|
Luminance |
300 cd/m2 |
350 cd/m2 |
250 cd/m2 |
|
||||||
|
Contrast Ratio |
2500:1 |
1000:1 |
1000：1 |
|
||||||
|
View Angle (H/V) |
176°/176° |
170°/160° |
170°/160° |
|
||||||
|
Model NO. |
IP150R113S |
IP170R113S |
IP190R113S |
|
||||||
|
SYSTEM |
|
|||||||||
|
CPU |
12th Gen Intel® Alder Lake-N N97 |
|
||||||||
|
Memory |
1 x 260-pin SO-DIMM DDR4 3200 MHz, up to 32GB |
|
||||||||
|
Storage |
1 x SATA 3.0 / 1 x M.2 (Key M, 2242/2260/2280) with PCIe x1 or SATA3 for SSD |
|
||||||||
|
OS Support |
Windows 10 Pro / Windows 10 IoT Windows 11 Pro / Windows 11 IoT |
|
||||||||
|
TPM |
TPM 2.0 onboard IC |
|
||||||||
|
I/O Ports |
⁕ The I/O interface shown may vary depending on the selected motherboard. |
|
||||||||
|
M12 RS232 |
2 |
M12 USB 2.0 |
2 |
|
||||||
|
M12 GLAN |
2 |
|
|
|
||||||
|
Expansion Slot |
|
|||||||||
|
M.2 |
1 x M.2 ( Key E, 2230 ) with 1 x PCIe, USB 2.0 and CNVi / WiFi optional 1 x M.2 ( Key B, 3042/3052 ) with PCIe x1/USB 3.2/USB 2.0 and SIM for 4G/5G |
|
||||||||
|
MECHANICAL & ENVIRONMENTAL |
|
|||||||||
|
Operation Temp. |
0 ~ 45°C |
|
||||||||
|
Storage Humidity |
10 ~ 90%, non-condensing |
|
||||||||
|
Form Factor |
|
|||||||||
|
Touch Screen |
15"/17"/19"：PCT / 5W(Single touch) 12"/15"/17"/19"/21.5"/24"：Projected Capacitive Multi-Touch Panel |
|
||||||||
|
Mounting |
VESA mount (100 x 100mm) & Yoke mount |
|
||||||||
|
Power Supply |
M12 DC-in 9V~36V |
|
||||||||
