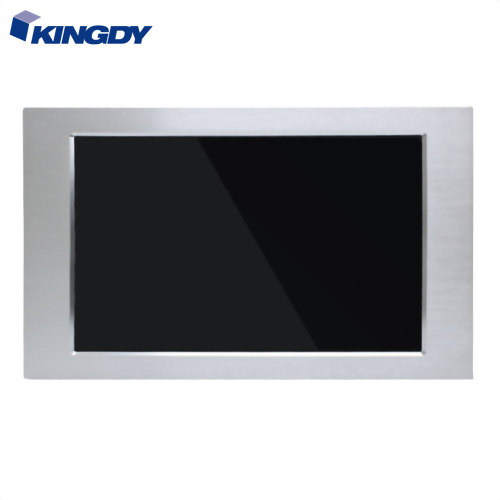

Display for 16:9 Ratio

Size

15.6" TFT

17.3" TFT

18.5" TFT

Resolution

1366 x 768

1920 x 1080

1920*1080

1366 x 768

1920*1080

Colors

16.7M

16.7M

16.7M

16.7M

16.7M

Luminance

400 cd/m²

400 cd/m²

400 cd/m²

250 cd/m²

350 cd/m²

Contrast Ratio

500：1

700：1

600：1

1000：1

1000：1

View Angle (H/V)

170°/160°

160°/140°

160°/140°

170°/160°

178°/178°

Model NO.

SP156R118S  SP173R118S  SP185R118S

SP156R119S  SP173R119S  SP185R119S

SYSTEM

CPU

Intel® IOTG Alder Lake-N Processor N97, QC, 12W

Intel® IOTG Alder Lake-N Core i3-N305, QC, 9W up to 15W

Memory

Single Channel for DDR5 4800MHz Up to 16GB

Single Channel for DDR5 4800MHz Up to 16GB

Storage

1 x SATA 3.0

1 x SATA 3.0

OS Support

Windows 10 IoT Enterprise 2021 LTSC (64-bit, 21H2)
Windows 11 IoT Enterprise (64-bit, 23H2, pre-scan)
Linux (Support by request)

I/O Ports

⁕ The I/O interface shown may vary depending on the selected motherboard.

RS232/422/485

1 (COM1) Optional

GLAN

2

RS232

5 (COM2~6) Optional

USB 2.0

1

HDMI

1

USB 3.2 Gen 1

1

DP

1

USB 3.2 Gen 2

2

AUDIO

1

Expansion Slot

M.2

1 x M.2 B key (SATA/PCIe x1), 2242/3042/2280

1 x M.2 (Key E, 2230) with PCIe x1, USB 2.0 and CNVi for WiFi optional

1 x M.2 E key (PCIe x1, USB 2.0), 2230

1 x M.2 (Key B, 3042/3052) with PCIe x1,USB 3.2/USB 2.0 and SIM for 4G/5G

MECHANICAL & ENVIRONMENTAL

Operation Temp.

0 ~ 45°C

Storage Humidity

10 ~ 90%, non-condensing

Form Factor

Touch Screen

5 Wires Resistive ( Single touch )

Mounting

VESA mount ( 75 X 75 mm) /  ( 100 X 100 mm)  & Panel mount & Clip mount

Power Supply

3 Pin Power Terminal Block for DC-in 12V

WIFI Optional

External Antenna (Wi-Fi): Supports M.2 Wi-Fi module with external antenna connection for enhanced signal performance
