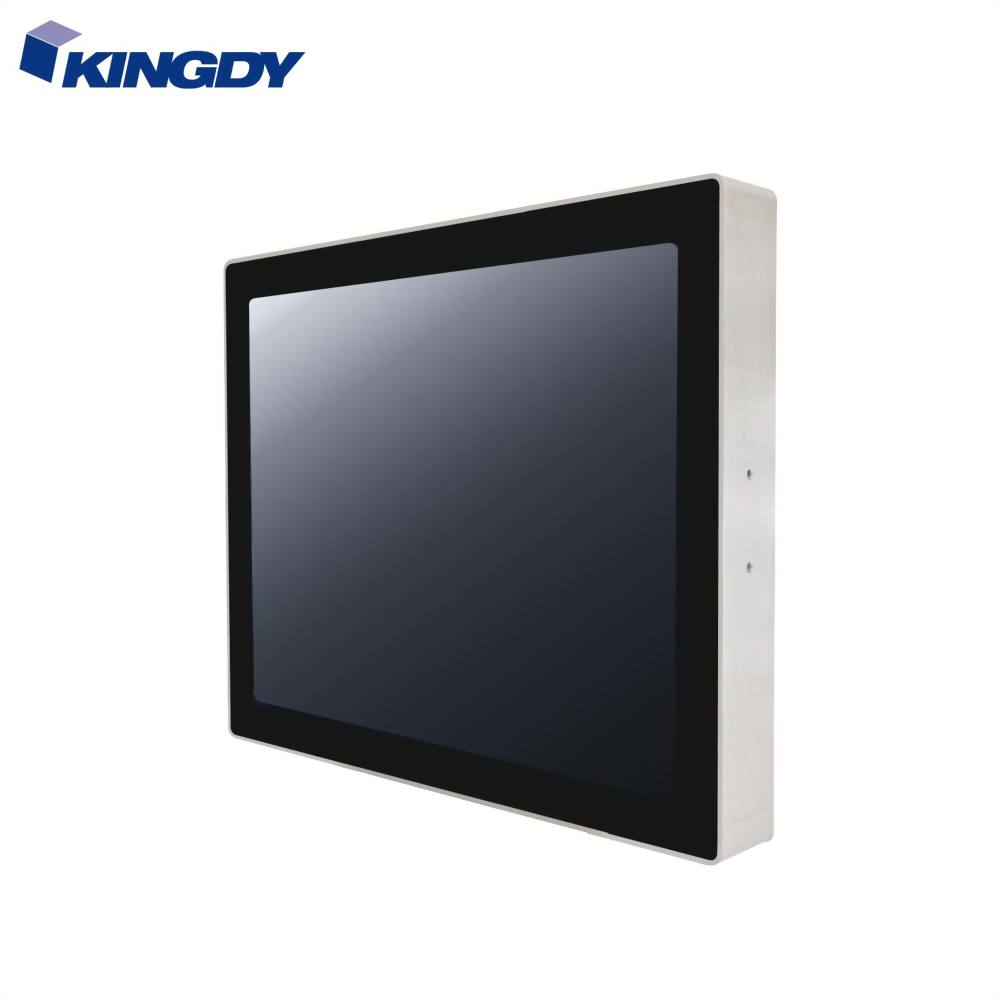

19" 13th Intel® Core™ i7 i5 i3

Features
• Intel® Mobile 13th Core™ i7 / i5 / i3
• Fanless solution and compact housing
• DDR5 5200 MHz SODIMM Slot up to 32GB
• Full IP69K Stainless design
• All M12 waterproof connectors
• DC-in 12~24V
• True flat PCT / 5 wires resistive
• Yoke Mount / VESA Mount
Model : AP190R120S AP190R121S AP190R122S AP190R123S
Q1 : What is the protection level of the AP Series?
A1 : The AP Series offers full IP69K stainless protection, designed for high-pressure hot water washdowns and harsh industrial conditions.

Q2 : Are all connectors waterproof?
A2 : Yes. Every model uses M12 waterproof connectors to ensure fully sealed and reliable connectivity.

Q3 : What touch options are available?
A3 : The AP Series supports True Flat projected capacitive touch and 5-wire resistive touch for compatibility with various industrial tasks.

Q4 : Is the AP Series completely fanless?
A4 : Yes. Its fanless design minimizes contamination, reduces maintenance, and enhances long-term stability.

Q5 : What mounting options are supported?
A5 : Yoke Mount and VESA Mount are available across all sizes for versatile installation.

Q6 : Which industries commonly use the AP Series?
A6 : Food & beverage, pharmaceutical manufacturing, chemical plants, outdoor terminals, and any environment requiring IP69K hygiene standards.

Q7 : Does the AP Series support high-performance computing?
A7 : Yes. With Intel® i3/i5/i7, it delivers the processing power required for automation, machine control, data visualization, and edge computing.

Q8 : Can the AP Series be used in washdown environments?
A8 : Absolutely. It is specifically designed for high-temperature, high-pressure washdown scenarios.

Display for 3:4 Ratio



Size

15" TFT

17" TFT

19" TFT



Resolution

1024 x 768

1280 x 1024

1280 x 1024



Colors

16.7M

16.7M

16.7M



Luminance

300 cd/m2

350 cd/m2

250 cd/m2



Contrast Ratio

2500:1

1000:1

1000：1



View Angle (H/V)

176°/176°

170°/160°

170°/160°



Model NO.

AP150R120S AP150R121S

AP150R122S AP150R123S

AP170R120S AP170R121S

AP170R122S AP170R123S

AP190R120S AP190R121S

AP190R122S AP190R123S



SYSTEM



CPU

Intel® Mobile 13th Core™ i7-1365UE(120)/ i5-1345UE(121)/ i5-1335UE(122)/ i3-1315UE(123) , 28W



Memory

Single-channel DDR5 5200 MHz Up to 32 GB



Storage

1 x SATA 3.0



OS Support

Windows 10 IoT Enterprise 2021 LTSC (64-bit, 21H2)

Windows 11 IoT Enterprise (64-bit, 23H2, Pre-scan)

Linux (Support by request)



I/O Ports

⁕ The I/O interface shown may vary depending on the selected motherboard.



M12 RS232

2

M12 USB 2.0

2



M12 GLAN

2



Expansion Slot



M.2

1 x M.2 M key (PCIe Gen4 x4 NVMe), 2280

1 x M.2 B key (PCIe x1, USB 2.0, w/NANO SIM-Holder), 2242/3042

1 x M.2 E key (PCIe x1, USB 2.0, w/CNVi), 2230



MECHANICAL & ENVIRONMENTAL



Operation Temp.

0 ~ 45°C



Storage Humidity

10 ~ 90%, non-condensing



Form Factor



Touch Screen

True flat PCT / 5 wires resistive



Mounting

Yoke Mount / VESA Mount



Power Supply

Full IP67 Waterproof Power Adapter: 12V/24V default; 9–36V input supported. Customization by customer.



Optional



Panel Type

High Brightness LCD Panel: Available in various sizes and brightness specifications.

Please inquire for available options and custom configurations



WIFI Optional

External Antenna (Wi-Fi): Supports M.2 Wi-Fi module with external antenna connection for enhanced signal performance



Power adaptor

Full IP67 Waterproof Power adaptor : Specifications may vary by country

( 150W / 100 ~ 305V AC input / 12V DC output) / (150W / 100 ~ 305V AC input / 24V DC output)
