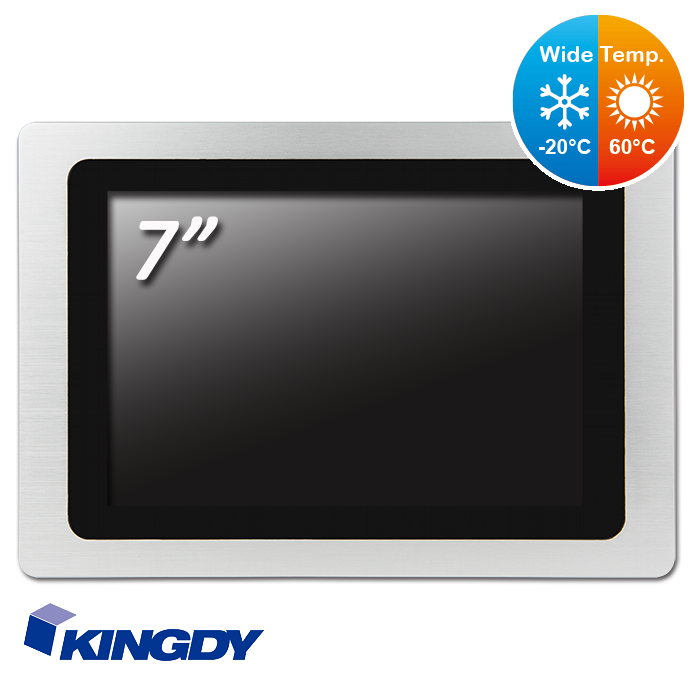

7" Touch Monitor (WT)

● Fanless and rugged design
● Wide temperature : -20~60°C
● Front IP69K IP69K IP66 true flat PCT touch solution
● Resolution 1024 x 600 dpi
● Silver aluminum front bezel
● 304 316 stainless steel front bezel
● VESA mount & Panel mount & Clip mount
● Optical bonding solution
Model : TM007PW03, TM007PW04

Model No.

TM007PW03

TM007PW04

Display

Size

7" TFT (16:9)

Resolution

1024 x 600

Colors

16.7M

Luminance

320 cd/m2

Contrast Ratio

500 : 1

View Angle (H/V)

150°/145°

I/O Ports

VGA

V

V

DVI

V

HDMI

V

DP

V

USB (for touch screen)

V

V

Power Requirement

Power Requirement

DC in 12V ( 60W )

Touch Screen

Touch Screen

True Flat PCT touch

OS support

OS support

Win Pro 10  /  Embedded Win 7, 8, 10  /  Win 10 IoT

Mechanical & Environmental

Operation Temp.

-20~60°C

Storage Humidity

10 ~ 90%, non-condensing

Mounting

VESA mount ( 75 x 75 mm) & Panel mount & Clip mount

Dimension (WxHxD)

232 x 166 x 63 mm

Weight

TBD

Optional

P/N: 2320000001

Optical Bonding

P/N: 3080108001

HMDI 2m cable

P/N: 3080109001

DP 2m cable

P/N: 239SP17002

8pcs x Clips

P/N: 3011100020

Waterproof sponge

Ordering Information

TM007PW03

7” wide temperature display, true flat PCT, 1 x VGA , 1 x DVI, 1 x USB, 1 x 1.8m VGA cable,
1 x 1.8m USB cable, DC in power adapter

TM007PW04

7” wide temperature display, true flat PCT, 1 x VGA , 1 x DP, 1 x HDMI, 1 x USB, 1 x 1.8m VGA cable,
1 x 1.8m USB cable, DC in power adapter

**Specifications are subject to change without notice.
