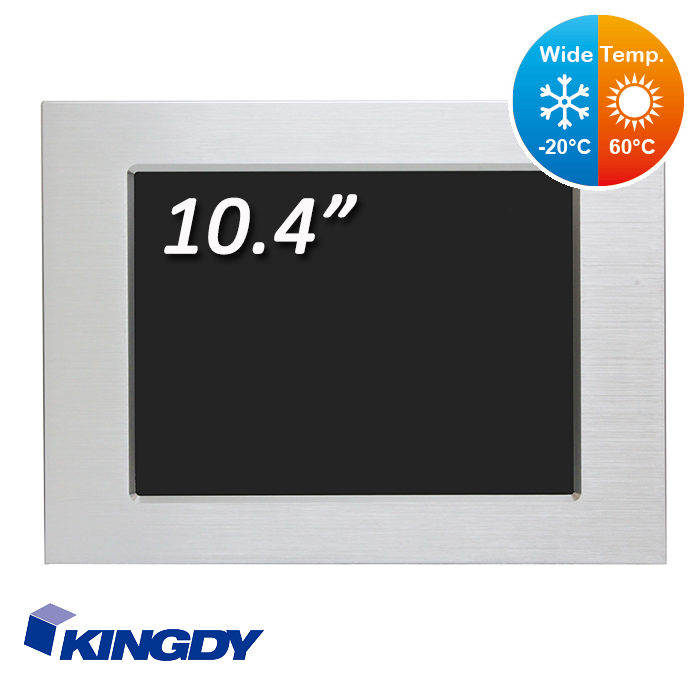

10.4" Touch Monitor (WT)

● Fanless and rugged design
● Wide temperature : -20~60°C
● 5 Wires Resistive touch solution
● IP65 Silver aluminum front bezel
● 304 316 stainless steel front bezel
● Resolution 1024 x 768 dpi
● VESA mount & Panel mount & Clip mount
● RS232 for remote control function optional
● Optical bonding, high brightness sunlight readable solution
Model : SM105RW03, SM105RW04

Model No.

SM105RW03

SM105RW04



Display



Size

10.4" TFT (4:3)



Resolution

1024 x 768



Colors

16.7M



Luminance

350 cd/m2



Contrast Ratio

900 : 1



View Angle (H/V)

150°/150°



High Brightness (Optional)



Resolution

1024 x 768



Colors

16.7M



Luminance

1000 cd/m2



Contrast Ratio

900 : 1



Viewing Angle (H/V)

150°/150°



I/O Ports



VGA

V

V



DVI

V



HDMI

V



DP

V



USB (for touch screen)

V

V



Power Requirement



Power Requirement

DC in 12V ( 60W )



Touch Screen



Touch Screen

5 Wires Resistive (one touch)



OS support



OS support

Win Pro 7.8.1, 10 / embedded Win 7, 8, 10



Mechanical & Environmental



Operation Temp.

-20~ 60°C



Storage Humidity

10 ~ 90%, non-condensing



Mounting

VESA mount ( 75 x 75 mm) & Panel mount & Clip mount



Dimension (WxHxD)

302 x 224 x 71 mm



Weight

TBD



Optional



P/N: 302A17005A

1600 cd/m2  10.4” LCD panel 1024 x 768



P/N: 2320000001

Optical Bonding



P/N: 3080108001

HMDI 2m cable



P/N: 3080109001

DP 2m cable



P/N: 239SP17002

8pcs x Clips



P/N: 3120600002

RS232 touch screen



P/N: 3011100020

Waterproof sponge



Ordering Information

Standard

SM105RW03

10.4” wide temperature display, 5W resistive, 1 x VGA, 1 x DVI, 1 x USB, 1 x 1.8m VGA cable,
1 x 1.8m USB cable, DC in power adapter

SM105RW04

10.4” wide temperature display, 5W resistive, 1 x VGA, 1 x DP, 1 x HDMI, 1 x USB, 1 x 1.8m VGA cable,
1 x 1.8m USB cable, DC in power adapter

High Brightness

SM105RK03

10.4” wide temperature display, 5W resistive, 1 x VGA , 1 x DVI, 1 x USB, 1 x 1.8m VGA cable,
1 x 1.8m USB cable,  DC in power adapter,1000 cd/m2

SM105RK04

10.4” wide temperature display, 5W resistive, 1 x VGA , 1 x DP, 1 x HDMI, 1 x USB, 1 x 1.8m VGA cable,
1 x 1.8m USB cable,
DC in power adapter,1000 cd/m2

**Specifications are subject to change without notice.
