Name: 12.1" Touch Monitor
Brand: Kingdy Technology Inc.
SKU: TM122PS03, TM122PS04, TM122RS03, TM122RS04

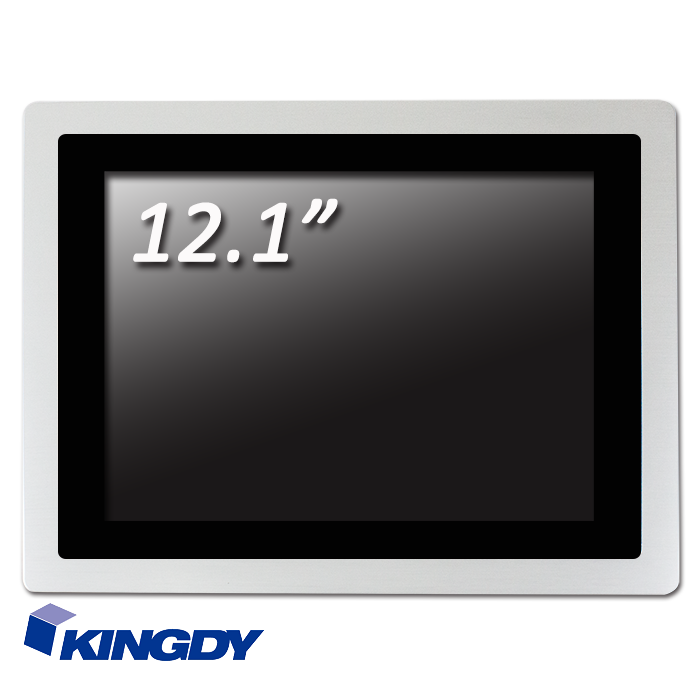

12.1" Touch Monitor

● Fanless and rugged design
● True Flat PCT / 5 Wires Resistive touch solution
● Resolution 1024 x 768 dpi
● IP66 Silver aluminum front bezel
● VESA mount & Panel mount & Clip mount

Model : TM122PS03, TM122PS04, TM122RS03, TM122RS04

Datasheet

Q'ty :

Specifications
Features

Model No.		TM122PS03	TM122RS03	TM122PS04	TM122RS04
Display
Size		12.1" TFT (4:3)
Resolution		1024 x 768
Colors		16.7M
Luminance		350 cd/m²
Contrast Ratio		800 : 1
View Angle (H/V)		160°/160°
High Brightness (Optional)
Resolution		1024 x 768
Colors		16.7M
Luminance		1000 cd/m²
Contrast Ratio		800 : 1
Viewing Angle (H/V)		160°/160°
I/O Ports
VGA		V		V
DVI		V
HDMI				V
DP				V
USB (for touch screen)		V		V
Power Requirement
Power Requirement		DC in 12V ( 60W )
Touch Screen
Touch Screen		PCT	5W (one touch)	PCT	5W (one touch)
OS support
OS support		Win Pro 7,8 10 / Embedded Win 7, 8, 10 / Win 10 IoT
Mechanical & Environmental
Operation Temp.		0 ~ 45°C
Storage Humidity		10 ~ 90%, non-condensing
Mounting		VESA mount ( 75 x 75 mm) & Panel mount & Clip mount
Dimension (WxHxD)		332 x 262 x 63 mm
Weight		TBD
Optional
P/N: 2320000001		Optical Bonding
P/N: 3080108001		HMDI 2M cable
P/N: 3080109001		DP 2M cable
P/N: 239SP17002		8pcs x Clips
P/N: 3011100020		Waterproof sponge
Ordering Information
Standard
TM122PS03	12.1” display, true flat PCT, 1 x VGA, 1 x DVI, 1 x USB, 1 x 1.8m VGA cable, 1 x 1.8m USB cable, DC in power adapter
TM122PS04	12.1” display, true flat PCT, 1 x VGA, 1 x DP, 1 x HDMI, 1 x USB,1 x 1.8m VGA cable, 1 x 1.8m USB cable, DC in power adapter
TM122RS03	12.1” display, true flat 5W resistive, 1 x VGA, 1 x DVI, 1 x USB, 1 x 1.8m VGA cable, 1 x 1.8m USB cable, DC in power adapter
TM122RS04	12.1” display, true flat 5W resistive, 1 x VGA, 1 x DP, 1 x HDMI, 1 x USB,1 x 1.8m VGA cable, 1 x 1.8m USB cable, DC in power adapter
High Brightness
TM122PJ03	12.1” display, true flat PCT, 1 x VGA, 1 x DVI, 1 x USB, 1 x 1.8m VGA cable, 1 x 1.8m USB cable, DC in power adapter,1000 cd/m²
TM122PJ04	12.1” display, true flat PCT, 1 x VGA, 1 x DP, 1 x HDMI, 1 x USB,1 x 1.8m VGA cable, 1 x 1.8m USB cable, DC in power adapter,1000 cd/m²
TM122RJ03	12.1” display, true flat 5W resistive, 1 x VGA, 1 x DVI, 1 x USB, 1 x 1.8m VGA cable, 1 x 1.8m USB cable, DC in power adapter,1000 cd/m²
TM122RJ04	12.1” display, true flat 5W resistive, 1 x VGA, 1 x DP, 1 x HDMI, 1 x USB,1 x 1.8m VGA cable, 1 x 1.8m USB cable, DC in power adapter,1000 cd/m²
**Specifications are subject to change without notice.
