Display for 3:4 Ratio

Size

10.1" TFT

Resolution

1024 x 768

Colors

16.7M

Luminance

350 cd/m2

Contrast Ratio

900:1

View Angle (H/V)

150°/150°

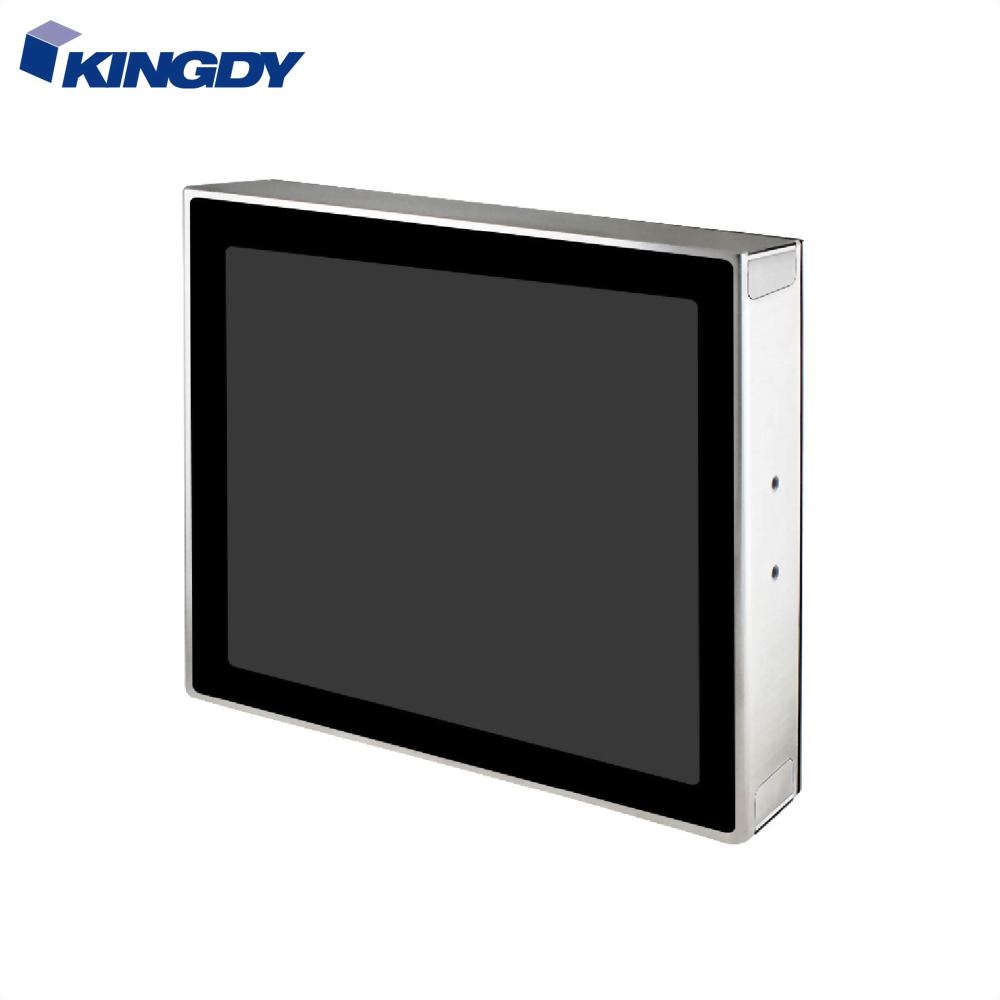

Model NO.

GP104R116S

GP104R117S

SYSTEM

CPU

Intel® IOTG Alder Lake-N Processor N97, QC, 12W

Intel® IOTG Alder Lake-N Core i3-N305, OC, 9W up to 15W

Memory

Single Channel for DDR5 4800MT/s Up to 16GB

Storage

1 x SATA 3.0

OS Support

Windows® 11 (64bit)

Windows® 10 (64bit)

Linux (Support by request)

TPM

Infineon SLB9672VU2.0

I/O Ports

⁕ The I/O interface shown may vary depending on the selected motherboard.

M12 RS232

2

M12 USB 2.0

2

M12 GLAN

2

Expansion Slot

M.2

1 x M.2 B key (SATA/PCIe x1), 2242/3042/2280

1 x M.2 E key (PCIe x1, USB 2.0), 2230

MECHANICAL & ENVIRONMENTAL

Operation Temp.

0 ~ 45°C

Storage Humidity

10 ~ 90%, non-condensing

Form Factor

Touch Screen

True flat PCT / 5 wires resistive

Mounting

Yoke Mount / VESA Mount

Power Supply

Full IP67 Waterproof Power Adapter: 12V/24V default; 9–36V input supported. Customization by customer.

WIFI Optional

External Antenna (Wi-Fi): Supports M.2 Wi-Fi module with external antenna connection for enhanced signal performance

Optional

Panel Type

High Brightness LCD Panel: Available in various sizes and brightness specifications.

Please inquire for available options and custom configurations

WIFI

External Antenna (Wi-Fi): Supports M.2 Wi-Fi module with external antenna connection for enhanced signal performance

Power adaptor

Full IP67 Waterproof Power adaptor : Specifications may vary by country

( 75W / 100 ~ 305V AC input / 12V DC output) / (75W / 100 ~ 305V AC input / 24V DC output)
