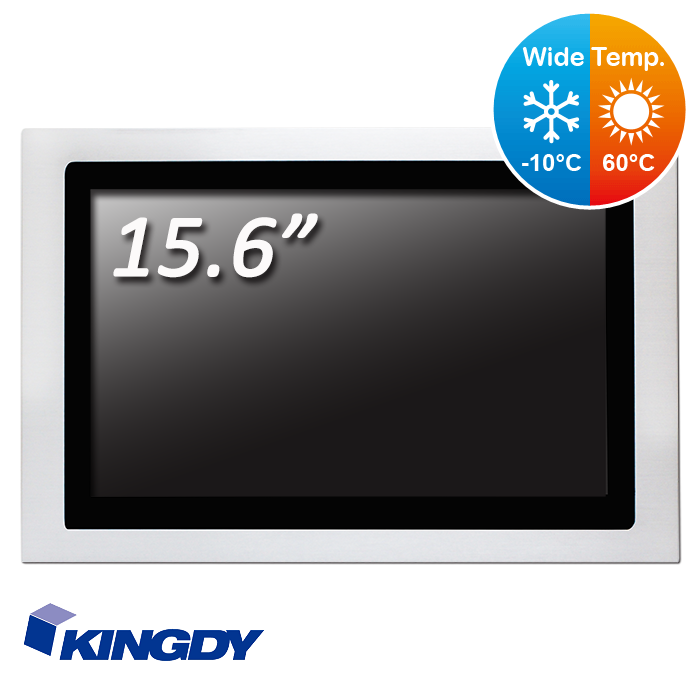

15.6" Touch Monitor (WT)

● Fanless and rugged design
● Wide temperature : -10~60°C
● Front IP69K IP66 true flat PCT touch solution
● Resolution 1920 x 1080 dpi
● Silver aluminum front bezel
● 304 316 stainless steel front bezel
● VESA mount & Panel mount & Clip mount
● RS232 for remote control function optional
● Optical bonding solution
Model : TM157PW03, TM157PW04

Model No.

TM157PW03

TM157PW04

Display

Size

15.6” TFT (16:9)

Resolution

1920 x 1080

Colors

16.2M

Luminance

400 cd/m2

Contrast Ratio

500 : 1

View Angle (H/V)

140°/120°

I/O Ports

VGA

V

V

DVI

V

HDMI

V

DP

V

USB (for touch screen)

V

V

Power Requirement

Power Requirement

DC in 12V ( 60W )

Touch Screen

Touch Screen

True Flat PCT touch

OS support

OS support

Win Pro 10  /  Embedded Win 7, 8, 10  /  Win 10 IoT

Mechanical & Environmental

Operation Temp.

-10~60°C

Storage Humidity

10 ~ 90%, non-condensing

Mounting

VESA mount (100X100mm) & Panel mount & Clip mount

Dimension (WxHxD)

463 x 298 x 71 mm

Weight

TBD

Optional

P/N: 2320000001

Optical Bonding

P/N: 3080108001

HMDI 2m cable

P/N: 3080109001

DP 2m cable

P/N: 239SP17002

10pcs x Clips

P/N: 3011100020

Waterproof sponge

Ordering Information

TM157PW03

15.6” wide temperature display, true flat PCT, 1 x VGA, 1 x DVI, 1 x USB, 1 x 1.8m VGA cable, 1 x 1.8m USB cable,
DC in power adapter

TM157PW04

15.6” wide temperature display, true flat PCT, 1 x VGA, 1 x DP, 1 x HDMI, 1 x USB, 1 x 1.8m VGA cable, 1 x 1.8m USB cable,
DC in power adapter

**Specifications are subject to change without notice.
