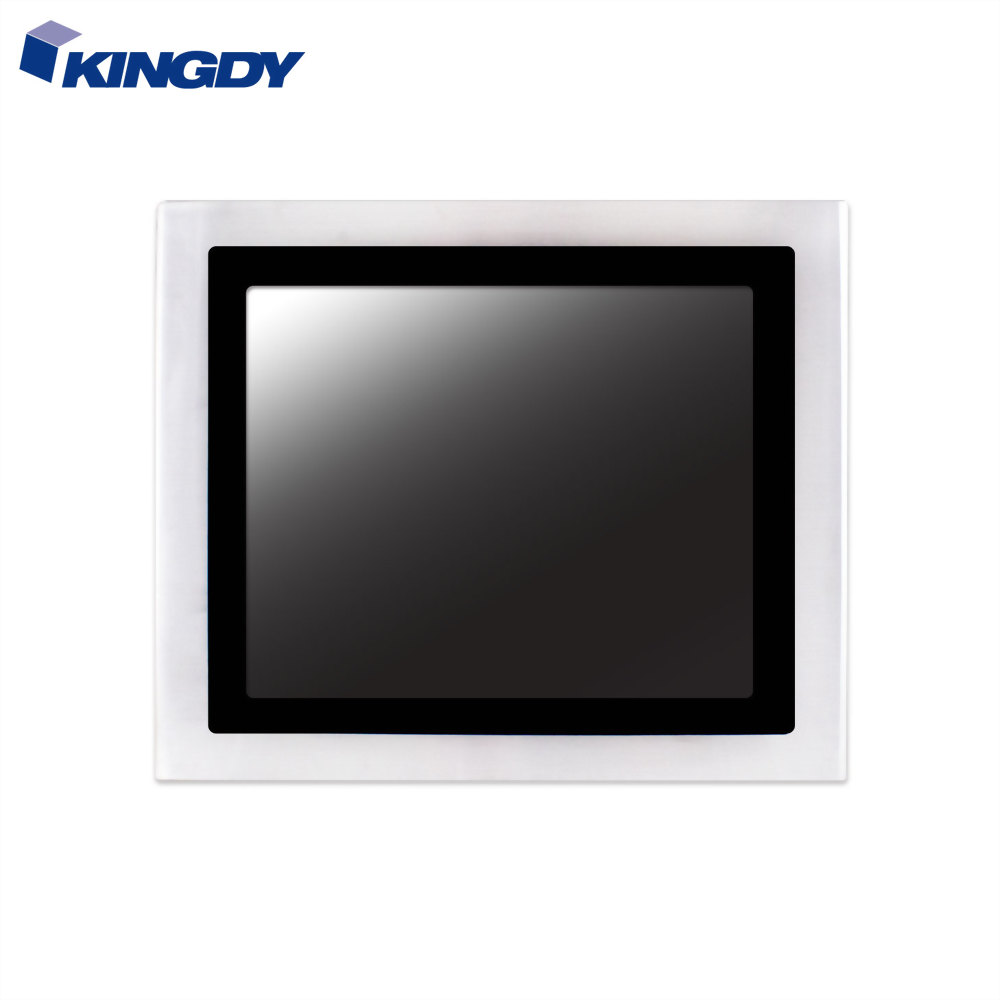

Display for 3:4 Ratio

Size

12.1" TFT

Resolution

1024 x 768

Colors

16.7M

Luminance

350 cd/m2

Contrast Ratio

800:1

View Angle (H/V)

160°/160°

Model NO.

IP121R112S

SYSTEM

CPU

Intel® Elkhart Lake SoC Processors J6412

Memory

2 x 260-pin DDR4 3200MHz SODIMM up to 32 GB  (16GB per DIMM)

Storage

1 x SATA 3.0 /1 x M.2 (Key M, 3042/3060/2280) with PCIe x1 for SSD

OS Support

Windows 10 Pro / Windows 10 IoT

 Windows 11 Pro / Windows 11 IoT

TPM

TPM 2.0 onboard IC

I/O Ports

⁕ The I/O interface shown may vary depending on the selected motherboard.

M12 RS232

2

M12 USB 2.0

2

M12 GLAN

2

Expansion Slot

M.2

1 x M.2 ( Key E, 2230 ) with PCIe x1 and USB 2.0 / WiFi optional

1 x M.2 ( Key B, 3042 / 3052 ) with PCIex1 / USB 3.2 and USB 2.0 and SIM for 4G/5G

MECHANICAL & ENVIRONMENTAL

Operation Temp.

0 ~ 45°C

Storage Humidity

10 ~ 90%, non-condensing

Form Factor

Touch Screen

15"/17"/19"：PCT / 5W ( Single touch )

12"/15"/17"/19"/21.5"/24"：Projected Capacitive Multi-Touch Panel

Mounting

VESA mount (100 x 100mm) & Yoke mount

Power Supply

M12 DC-in 9V~36V
