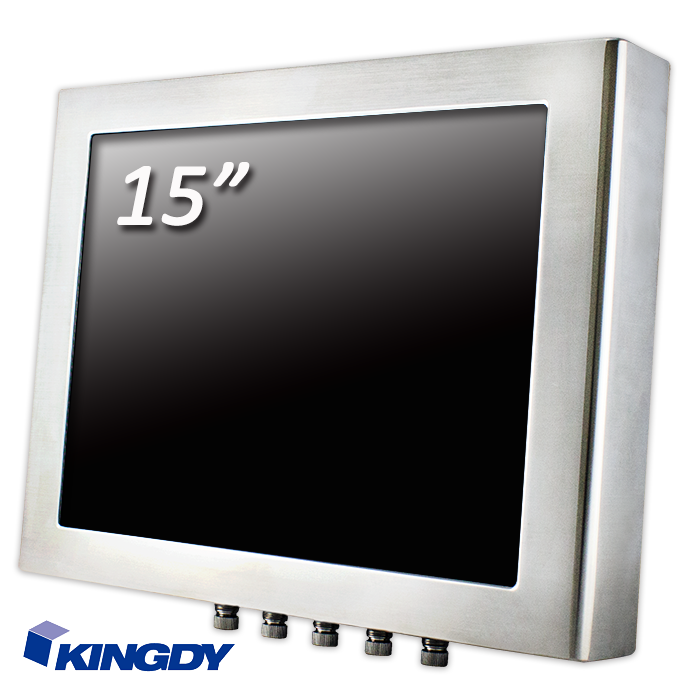

15" Touch Monitor

● Fanless and rugged design
● General temperature & Wide temperature
● Resolution 1024 x 768 dpi
● 5 Wires Resistive touch solution
● Full 304 IP65 6 sides stainless chassis
● VESA mount & Yoke mount
Model : WM150RS03, WM150RS04, WM150RW03, WM150RW04

Model No.

WM150RS03

WM150RS04

WM150RW03

WM150RW04

I/O Ports

VGA

V

V

HDMI

V

USB (for touch screen)

V

V

Power Requirement

Power Requirement

DC in 12V external power adapter

Touch Screen

Touch Screen

5 Wires Resistive (one touch)

OS support

OS support

Win Pro 10  /  Embedded Win 7, 8, 10

Display

Size

15" TFT (4:3)

Resolution

1024 x 768

Colors

16.2M

Luminance

300 cd/m2

Contrast Ratio

2000:1

View Angle (H/V)

176°/176°

Mechanical & Environmental

Operation Temp. (Standard)

0 ~ 45°C
for WM150RS03/04, WM170RS03/04, WM190RS03/04

Operation Temp. (Wide Temp.)

-20~ 60°C
for WM150RW03/04, WM170RW03/04, WM190RW03/04

Storage Humidity

10 ~ 90%, non-condensing

Mounting

VESA mount (100X100mm) & Yoke mount

Dimension (WxHxD)

379 x 289 x 58 mm

Weight

5.2 kg

Optional

P/N: 2351206003

Full IP65 Waterproof Power adaptor with European power cord
( 60W /
90 ~ 295V AC input / 12V DC output)

P/N: 2352406011

Full IP65 Waterproof Power adaptor with European power cord
(60W /
90 ~ 295V AC input / 24V DC output)

P/N: 2351206004

Full IP65 Waterproof Power adaptor with US power cord
( 60W /
90 ~ 295V AC input / 12V DC output)

P/N: 2352406012

Full IP65 Waterproof Power adaptor with US power cord
 (60W /
90 ~ 295V AC input / 24V DC output)

P/N: 2320000001

Optical Bonding

P/N: 302A170051

1600 cd/m2  High Brightness 15” LCD panel 1024 x 768 dpi

P/N: 302A170051

1600 cd/m2  High Brightness 17” LCD panel 1280 x 1024 dpi

P/N: 302A190091

1600 cd/m2  High Brightness 19” LCD panel 1280 x 1024 dpi

P/N: 309M106004

DC in 9V ~ 36V

P/N: 3120600002

RS232 touch screen

Optional HB Panel

WM150RJ03

WM150RJ04

Resolution

1024 x 768

Color

16.2M

Luminance

1000 cd/m2

Contrast Ratio

2000 : 1

Viewing Angle (H/V)

176°/176°

Ordering Information

WM150RS03

15” full IP65 Display, 5 wires resistive, 1 x VGA ,1 x USB, 1 x 1.8M VGA cable, 1 x 1.8M USB cable, 1 x DC in external power adapter

WM150RJ03

15” full IP65 Display, 5 wires resistive, 1 x VGA ,1 x USB, 1 x 1.8M VGA cable, 1 x 1.8M USB cable, 1 x DC in external power adapter, 1000 cd/m2

WM150RS04

15” full IP65 Display, 5 wires resistive, 1 x VGA , 1 x HDMI ,1 x USB, 1 x 1.8M VGA cable, 1 x 2M HDMI cable, 1 x 1.8M USB cable, 1 x DC in external power adapter

WM150RJ04

15” full IP65 Display, 5 wires resistive, 1 x VGA , 1 x HDMI ,1 x USB, 1 x 1.8M VGA cable, 1 x 2M HDMI cable, 1 x 1.8M USB cable, 1 x DC in external power adapter, 1000 cd/m2

WM150RW03

15” wide temperature full IP65 Display, 5 wires resistive, 1 x VGA ,1 x USB, 1 x 1.8M VGA cable, 1 x 1.8M USB cable, 1 x DC in external power adapter

WM150RK03

15” wide temperature full IP65 Display, 5 wires resistive, 1 x VGA ,1 x USB, 1 x 1.8M VGA cable, 1 x 1.8M USB cable, 1 x DC in external power adapter, 1000 cd/m2

WM150RW04

15” wide temperature full IP65 Display, 5 wires resistive, 1 x VGA , 1 x HDMI ,1 x USB, 1 x 1.8M VGA cable, 1 x 2M HDMI cable, 1 x 1.8M USB cable, 1 x DC in external power adapter

WM150RK04

15” wide temperature full IP65 Display, 5 wires resistive, 1 x VGA , 1 x HDMI ,1 x USB, 1 x 1.8M VGA cable, 1 x 2M HDMI cable, 1 x 1.8M USB cable, 1 x DC in external power adapter, 1000 cd/m2

**Specifications are subject to change without notice.
