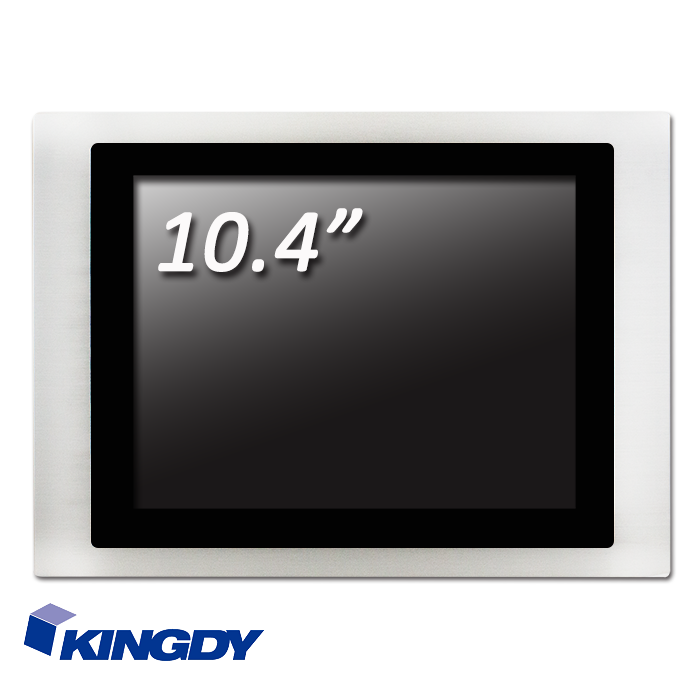

10.4" Touch Monitor

● Fanless and rugged design
● True Flat PCT / 5 Wires Resistive touch solution
● Resolution 1024 x 768 dpi
● IP66 Silver aluminum front bezel
● VESA mount & Panel mount & Clip mount
Model : TM105PS03, TM105PS04, TM105RS03, TM105RS04

Model No.

TM105PS03

TM105RS03

TM105PS04

TM105RS04

Display

Size

10.4" TFT (4:3)

Resolution

1024 x 768

Colors

16.7M

Luminance

350 cd/m2

Contrast Ratio

900 : 1

View Angle (H/V)

150°/150°

High Brightness (Optional)

Resolution

1024 x 768

Colors

16.7M

Luminance

1000 cd/m2

Contrast Ratio

900 : 1

Viewing Angle (H/V)

150°/150°

I/O Ports

VGA

V

V

DVI

V

HDMI

V

DP

V

USB (for touch screen)

V

V

Power Requirement

Power Requirement

DC in 12V ( 60W )

Touch Screen

Touch Screen

PCT

5W (one touch)

PCT

5W (one touch)

OS support

OS support

Win Pro 7,8 10  /  Embedded Win 7, 8, 10  /  Win 10 IoT

Mechanical & Environmental

Operation Temp.

0 ~ 45°C

Storage Humidity

10 ~ 90%, non-condensing

Mounting

VESA mount ( 75 x 75 mm) & Panel mount & Clip mount

Dimension (WxHxD)

297 x 240 x 59 mm

Weight

TBD

Optional

P/N: 2320000001

Optical Bonding

P/N: 3080108001

HMDI 2M cable

P/N: 3080109001

DP 2M cable

P/N: 239SP17002

8pcs x Clips

P/N: 3011100020

Waterproof sponge

Ordering Information

Standard

TM105PS03

10.4” display, true flat PCT, 1 x VGA, 1 x DVI, 1 x USB, 1 x 1.8m VGA cable, 1 x 1.8m USB cable,
DC in power adapter

TM105PS04

10.4” display, true flat PCT, 1 x VGA, 1 x DP, 1 x HDMI, 1 x USB,1 x 1.8m VGA cable, 1 x 1.8m USB cable,
DC in power adapter

TM105RS03

10.4” display, true flat 5W resistive, 1 x VGA, 1 x DVI, 1 x USB, 1 x 1.8m VGA cable, 1 x 1.8m USB cable,
DC in power adapter

TM105RS04

10.4” display, true flat 5W resistive, 1 x VGA, 1 x DP, 1 x HDMI, 1 x USB,1 x 1.8m VGA cable, 1 x 1.8m USB cable,
DC in power adapter

High Brightness

TM105PJ03

10.4” display, true flat PCT, 1 x VGA, 1 x DVI, 1 x USB, 1 x 1.8m VGA cable, 1 x 1.8m USB cable,
DC in power adapter,1000 cd/m2

TM105PJ04

10.4” display, true flat PCT, 1 x VGA, 1 x DP, 1 x HDMI, 1 x USB,1 x 1.8m VGA cable, 1 x 1.8m USB cable,
DC in power adapter,1000 cd/m2

TM105RJ03

10.4” display, true flat 5W resistive, 1 x VGA, 1 x DVI, 1 x USB, 1 x 1.8m VGA cable, 1 x 1.8m USB cable,
DC in power adapter,1000 cd/m2

TM105RJ04

10.4” display, true flat 5W resistive, 1 x VGA, 1 x DP, 1 x HDMI, 1 x USB,1 x 1.8m VGA cable, 1 x 1.8m USB cable,
DC in power adapter,1000 cd/m2

**Specifications are subject to change without notice.
