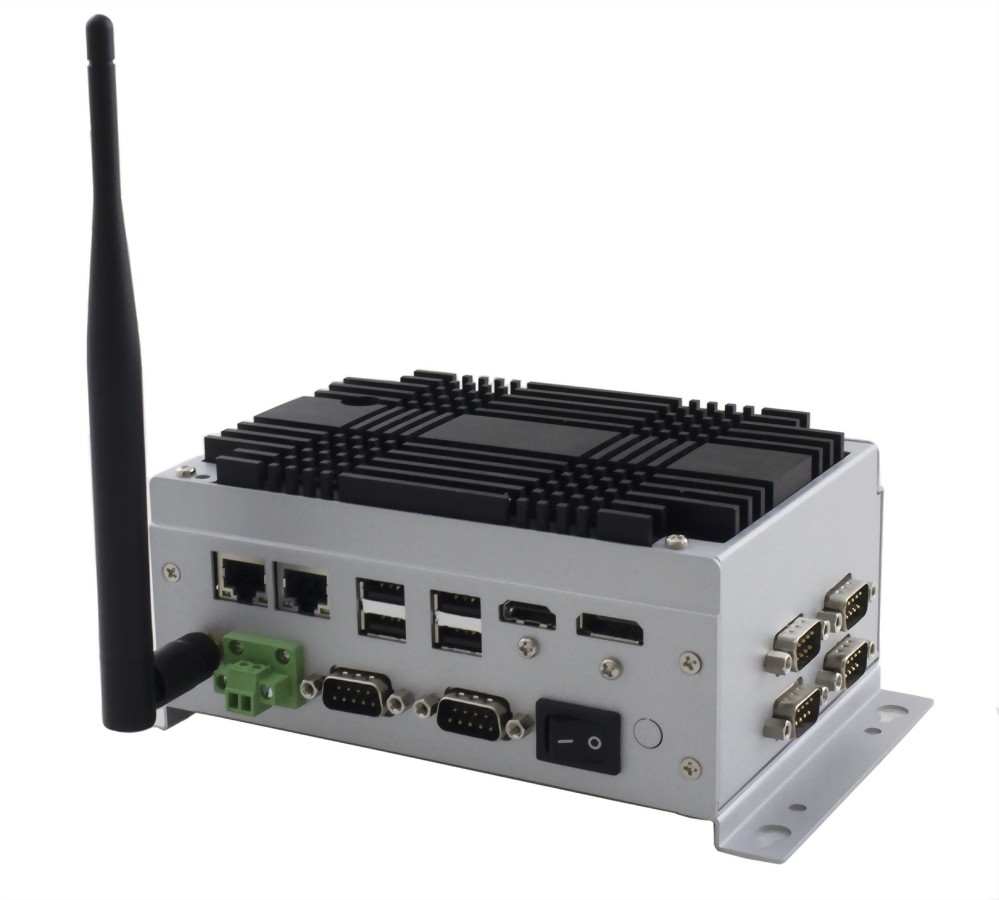

Model No.

QB107/108/109WD

QB1107/108/109WW

System

CPU

           11th Gen Intel® IoTG Mobile Tiger lake Core™ i3 1115GRE (107) / i5 1145GRE (108) / i7 1185GRE (109) CPU

Memory

2 x 260-pin DDR4 3200MHz SODIMM up to 64 GB

H/W Monitor

H/W Monitor

                  Watch Dog Timer 256 Level

TPM

Controller

                    Infineon SLB9670VQ2.0

I/O Ports

USB 3.2

4

USB 2.0

2

RS232 / RS422 / RS485

4

GLAN

2

HDMI

1

DP

1

GPIO

16 bits ( 8 x GPI , 8 x GPO), 5V , 2 x D- SUB connectors

Storage

Storage

1 x SATA 3.0

Expansion

M.2

                                                                    1 x M.2 M Key( PCI e Gen x 4 NVMe) 2280

                                      1 x M.2 B Key ( PCI e x 1 USB 2.0 with NANO SIM Holder, SATA 3.0) 2242 / 3042

                                                                     1 x M.2 E Key ( PCI e x 1 USB 2.0 ) 2230

Power Requirement

Power Requirement

2 Pin power terminal block for DC in 12 ~ 24V ( OCP & OVP )

OS support

OS support

Win Pro 10 / Win 10 IoT (64 bit RS5) / Linux kernel 5.4 Ubuntu LTS

Mechanical & Environmental

Operation Temp.

-20~60°C

Storage Humidity

10 ~ 90%, non-condensing

Mounting

DIN Rail

Wall mount

Construction

Aluminum heatsink + Steel chassis

Dimension (WxDxH)

185 x 109 x 76 mm

Weight

1.3kg

Optional

P/N: 2390000003

External antenna ( WIFI)

P/N: 3121700002

5GB LTE module

**Specifications are subject to change without notice.

Ordering Information

DIN Rail installation

QB107WD04128

Fanless wide temperature DIN Rail Box PC, Intel i3 1115GRE, 4GB DDR 4 So-DIMM, M.2 128GB SSD, 1 x DC in external power adapter

QB107WD04128

Fanless wide temperature DIN Rail Box PC, Intel i5 1145GRE, 4GB DDR 4 So-DIMM, M.2 128GB SSD, 1 x DC in external power adapter

QB109WD04128

Fanless wide temperature DIN Rail Box PC, Intel i7 1185GRE, 4GB DDR 4 So-DIMM, M.2 128GB SSD, 1 x DC in external power adapter

Wall Mount installation

QB107WW04128

Fanless wide temperature Wall Mount Box PC, Intel i3 1115GRE, 4GB DDR 4 So-DIMM, M.2 128GB SSD, 1 x DC in external power adapter

QB108WW04128

Fanless wide temperature Wall Mount Box PC, Intel i5 1145GRE, 4GB DDR 4 So-DIMM, M.2 128GB SSD, 1 x DC in external power adapter

QB109WW04128

Fanless wide temperature Wall Mount Box PC, Intel i7 1185GRE, 4GB DDR 4 So-DIMM, M.2 128GB SSD, 1 x DC in external power adapter
