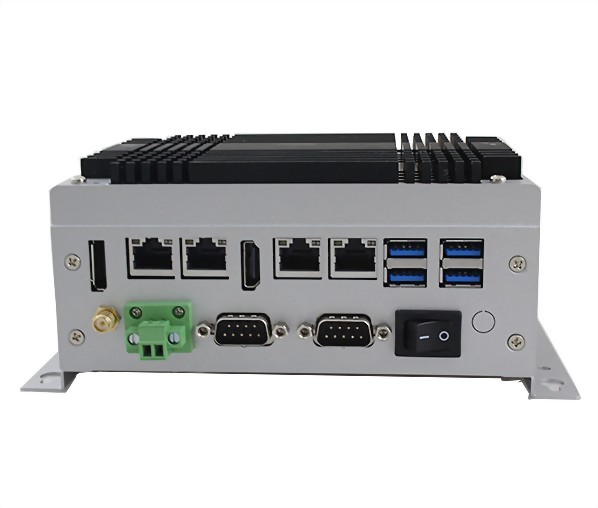

Model No.

QB089/090/091/092SD

QB089/090/091/092SW

System

CPU

8^th Gen Intel® Core™ Celeron 4305UE/ i3 8145UE / i5 8365UE / i7 8665UE Processors CPU (On Board)

Memory

2 x 260-pin DDR4 2400MHz SODIMM up to 32 GB

H/W Monitor

H/W Monitor

Watch Dog Timer 256 Level

TPM

Controller

Infineon SLB9670TT2.0

Front Panel

Power LED

1

HDD LED

1

I/O Ports

USB 3.2

4

USB 2.0

2

RS232/RS422/RS485

4

GLAN

4

CANbus 2.0B

2 x ( Isolated DB-9 ports)

HDMI

1

DP

1

GPIO

16 bits ( 8 x GPI , 8 x GPO), 5V , 2 x D- SUB connectors

Storage

Storage

2 x SATA 3.0

Expansion

M.2

1 x M.2 M Key(SATA) 2242

1 x M.2 B Key ( PCI e x 1, USB 3.1, USB2.0 with NANO SIM Holder ) 2242 / 3042

1 x M.2 E Key ( PCI e x 1 USB 2.0, w/CNVi ) 2230

Power Requirement

Power Requirement

2 Pin power terminal block for DC in 12 ~ 24V ( OCP & OVP )

OS support

OS support

Win Pro 10 / Win 10 IoT LTSC/SAC (64 bit RS5) / Linux fedora 29 Ubuntu 18.04

Mechanical & Environmental

Operation Temp.

0 ~50°C

Storage Humidity

10 ~ 90%, non-condensing

Mounting

DIN Rail

Wall mount

Construction

Aluminum heatsink + Steel chassis

Dimension (WxDHxH)

185 x 110 x 76 mm

Weight

1.3Kg

Ordering Information

DIN Rail installation

QB089SD04128

Fanless DIN Rail Box PC, Intel Celeron 4305UE,4GB DDR 4 So-DIMM, M.2 128GB SSD, DC in external power adapter

QB090SD04128

Fanless DIN Rail Box PC, Intel i3 8145UE, 4GB DDR 4 So-DIMM,M.2 128GB SSD, DC in external power adapter

QB091SD04128

Fanless DIN Rail Box PC, Intel i5 8365UE, 4GB DDR 4 So-DIMM, M.2 128GB SSD, DC in external power adapter

QB092SD04128

Fanless DIN Rail Box PC, Intel i7 8665UE, 4GB DDR 4 So-DIMM, M.2 128GB SSD, DC in external power adapter

Wall Mount installation

QB089SW04128

Fanless wall mount Box PC, Intel Celeron 4305UE, 4GB DDR 4 So-DIMM, M.2 128GB SSD, DC in external power adapter

QB090SW04128

Fanless wall mount Box PC, Intel i3 8145UE, 4GB DDR 4 So-DIMM, M.2 128GB SSD, DC in external power adapter

QB091SW04128

Fanless wall mount Box PC, Intel i5 i5 8365UE, 4GB DDR 4 So-DIMM, M.2 128GB SSD, DC in external power adapter

QB092SW04128

Fanless wall mount Box PC, Intel i7 8665UE, 4GB DDR 4 So-DIMM, M.2 128GB SSD, DC in external power adapter
