Model No.

QB107/109WD

QB107/109WW

System

CPU

                 11th Gen Intel® IoTG Mobile Tiger lake Core™ i3 1115GRE (107) / i5 1145GRE (108) / i7 1185GRE (109) CPU

Memory

2 x 260-pin DDR4 3200MHz SODIMM up to 64 GB

H/W Monitor

H/W Monitor

                   Watch Dog Timer 256 Level

TPM

Controller

                      Infineon SLB9670VQ2.0

Front Panel

Power LED

                                          1

HDD LED

                                          1

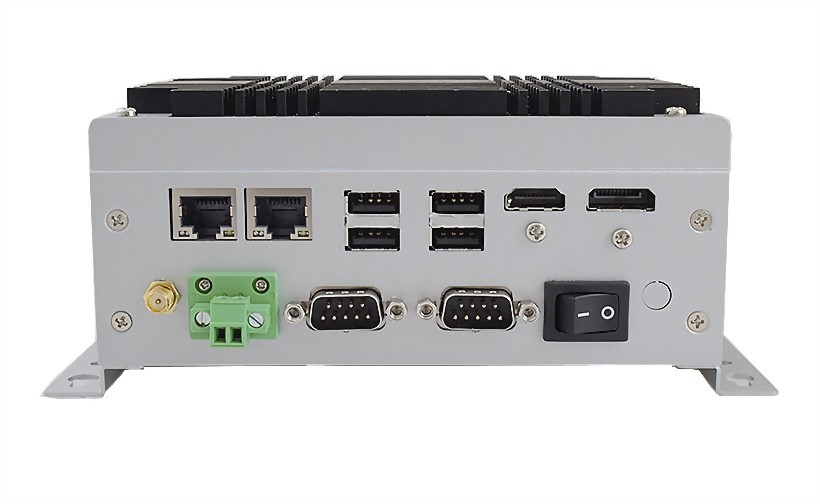

I/O Ports

USB 3.2

4

USB 2.0

2

RS232 / RS422 / RS485

4

GLAN

2

GLAN

2 x ( Isolated RJ45 Ports )

HDMI

1

DP

1

GPIO

16 bits ( 8 x GPI , 8 x GPO), 5V , 2 x D- SUB connectors

Storage

Storage

1 x SATA 3.0

Expansion

M.2

                                                                     1 x M.2 M Key( PCI e Gen x 4 NVMe) 2280                                                                                                                                                  1 x M.2 E Key ( PCI e x 1 USB 2.0 ) 2230

Power Requirement

Power Requirement

2 Pin power terminal block for DC in 12 ~ 24V ( OCP & OVP )

OS support

OS support

Win Pro 10 / Win 10 IoT (64 bit RS5) / Linux

Mechanical & Environmental

Operation Temp.

-20~60°C

Storage Humidity

10 ~ 90%, non-condensing

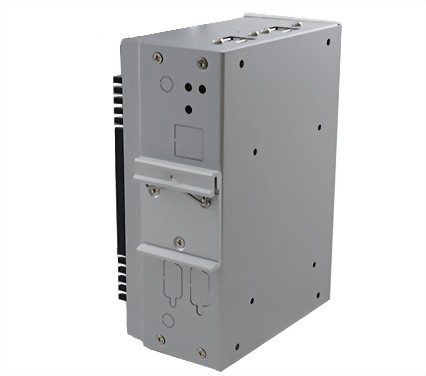

Mounting

DIN Rail

Wall mount

Construction

Aluminum heatsink + Steel chassis

Dimension (W x D x H )

185 x 109 x 76 mm

Weight

1.3Kg

Ordering Information

QB107WD04128

Fanless wide temperature DIN Rail Box PC, Intel i3 1115GRE, 4GB DDR 4 So-DIMM, M.2 128GB SSD, 1 x DC in external power adapter

QB109WD04128

Fanless wide temperature DIN Rail Box PC, Intel i7 1185GRE, 4GB DDR 4 So-DIMM, M.2 128GB SSD, 1 x DC in external power adapter

QB107WW04128

Fanless wide temperature Wall Mount Box PC, Intel i3 1115GRE, 4GB DDR 4 So-DIMM, M.2 128GB SSD, 1 x DC in external power adapter

QB109WW04128

Fanless wide temperature Wall Mount Box PC, Intel i7 1185GRE, 4GB DDR 4 So-DIMM, M.2 128GB SSD, 1 x DC in external power adapter
