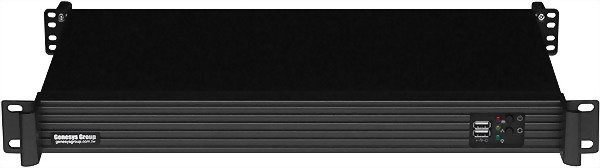

Intel 12th Celeron/i3/i5/i7 1U Rackmount PC

● Intel 12th Gen Alder Lake Core i9 /i7 /i5 /i3 / Celeron processors
● 2 x DDR4 3200 Mhz UDIMMs up to 64GB
● 2 x GLAN, 2 x DP ++, 4 x USB, 2 x RS232/422/485
● 1 x PCI e x 16, 1 x M Key, 1 x E Key, 1 x B Key.
● 2 x SATA 3.0 for RAID 0/1/5/10
● 1 x PCI e x 16 slot
Model : EA232SR5,EA233SR5,EA234SR5

Model No.

EA232SR5

EA233SR5

EA234SR5

System

CPU

                                  Intel 12th Gen Desktop Core i9/i7 /i5 /i3 / Pentium/ Celeron Series processors

CPU Type

                        LGA 1700 Socket

Chipset

R680 Express

Q670 Express

H610 Express

Memory

Dual-channel 2 x 260Pin DDR4 (ECC support) So-DIMMs 3200 Mhz up to 64GB

Dual-channel 2 x 260Pin DDR4 So-DIMMs 3200 Mhz up to 64GB

H/W Monitor

Watch Dog

                             Timer 256 Level

Smart Fan

                                    2Pcs x (40mm x 20mm) ball bearing system fans

Security

TPM

                                                                         dTPM2.0

Front Panel

Power Switch

                               1

Power LED

                               1

HDD LED

                               1

I/O Ports

RS232/422/485

                                                                                           2 ( without power )

GLAN

1 x Intel I225LM PCIe (10/100/1000/2.5G speeds)

1 x Intel I219LM PHY(10/100/1000 speeds) support vPro/AMT)

1 x Intel I219LM PHY(10/100/1000 speeds)

1 x Intel I210AT PCIe(10/100/1000 speeds)(opt.)

USB

4 x USB 3.2 Gen 2

2 x USB 3.2 Gen 2 + 1 x USB 3.2 Gen1

DP++

2

Audio

1 x Line out , 1 x Mic in

Storage

Storage

2 x SATA 3.0 for RAID 0/1/5/10 ( w/M.2 Key- M/B Key+2 SATA conn)

Internal Structure

Bracket

1 x 2.5” HDD 1 x 3.5” HDD

Expansion slot

PCI e x 16

1

M.2

1 x E Key( USB/PCIe x 1 )2230

1 x M Key( PCI e x4 Gen4/SATA)2280

1 x M Key(PCIe x 1 Gen 3 x 4/SATA)2280

1 x B Key( PCIe x 1 Gen 3/ USB 3.2 Gen 2 /SATA)2242/3042/3052

1 x B Key(SATA/USB 3.2 Gen1)2242/3042/3052

Power Requirement

DC Input

3in Power terminal black for DC in 12V DC in external power adapter

OS support

OS support

 Window 10 IoT Enterprise( 64 bit)

                  Linux

Mechanical & Environmental

Mounting

1U Rack mount

Operation Temp.

0 ~ 50°C

Storage Humidity

10 ~ 90%, non-condensing

Dimension (W x D x H)

 430 x 250 x 44.4 mm

Weight

TBD

Ordering Information

EA232SR5

1U Rack Mount Barebone System with R680 express, CPU cooler, system coolers, 12V DC in external power adapter, (DC in 12V for PC)

EA233SR5

1U Rack Mount Barebone System with Q670 express, CPU cooler, system coolers, 12V DC in external power adapter (DC in 12V for PC)

EA234SR5

1U Rack Mount Barebone System with H610 express, CPU cooler, system coolers, 12V DC in external power adapter (DC in 12V for PC)

EA235SR5

1U Rack Mount Barebone System with R680 express, CPU cooler, system coolers, 12V DC in external power adapter (DC in 9 ~ 36V for PC)

EA236SR5

1U Rack Mount Barebone System with Q670 express, CPU cooler, system coolers, 12V DC in external power adapter (DC in 9 ~ 36V for PC)

EA237SR5

1U Rack Mount Barebone System with H610 express, CPU cooler, system coolers, 12V DC in external power adapter (DC in 9 ~ 36V for PC)

**Specifications are subject to change without notice.
