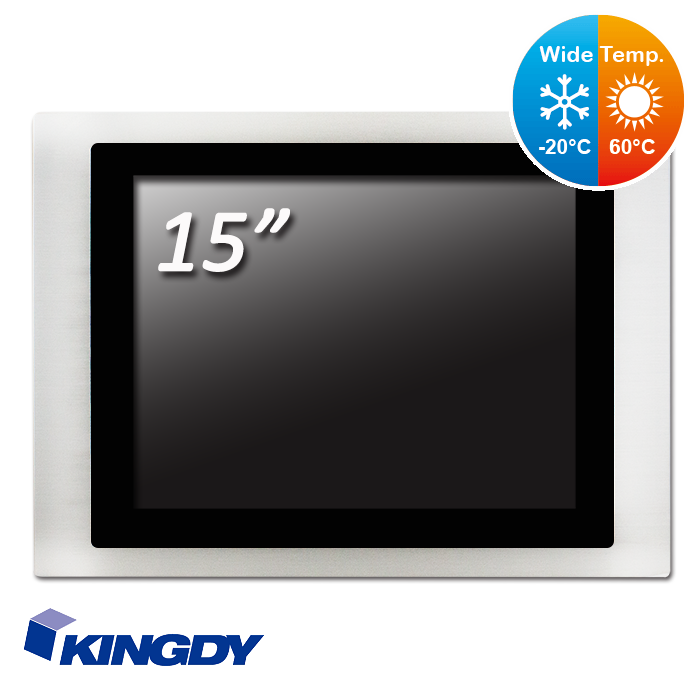

15" Touch Monitor (WT)

● Fanless and rugged design
● Wide temperature: -20~60°C
● True Flat PCT / 5 Wires Resistive touch solution
● Resolution 1024 x 768 dpi
● IP66 Silver aluminum front bezel
● VESA mount & Panel mount & Clip mount
Model : TM150PW03, TM150PW04, TM150RW03, TM150RW04

Model No.

TM150PW03

TM150RW03

TM150PW04

TM150RW04

Display

Size

15" TFT (4:3)

Resolution

1024 x 768

Colors

16.2M

Luminance

300 cd/m2

Contrast Ratio

2000:1

View Angle (H/V)

176°/176°

High Brightness (Optional)

Resolution

1024 x 768

Color

16.2M

Luminance

1000 cd/m2

Contrast Ratio

2000 : 1

Viewing Angle (H/V)

176°/176°

I/O Ports

VGA

V

V

DVI

V

HDMI

V

DP

V

USB (for touch screen)

V

V

Power Requirement

Power Requirement

DC in 12V ( 60W )

Touch Screen

Touch Screen

PCT

5W (one touch)

PCT

5W (one touch)

OS support

OS support

Win Pro 10  /  Embedded Win 7, 8, 10  /  Win 10 IoT

Mechanical & Environmental

Operation Temp.

-20~60°C

Storage Humidity

10 ~ 90%, non-condensing

Mounting

VESA mount (100X100mm) & Panel mount & Clip mount

Dimension (WxHxD)

441 x 322 x 71mm

Weight

4.8 kg

Optional

P/N: 302A170051

1600 cd/m2 15” LCD panel 1024 x 768

P/N: 2320000001

Optical Bonding

P/N: 3080108001

HMDI 2m cable

P/N: 3080109001

DP 2m cable

P/N: 239SP17002

10pcs x Clips

P/N: 3011100020

Waterproof sponge

Ordering Information

Standard

TM150PW03

15” wide temperature display, true flat PCT, 1 x VGA, 1 x DVI, 1 x USB, 1 x 1.8m VGA cable,
1 x 1.8m USB cable, DC in power adapter

TM150PW04

15” wide temperature display, true flat PCT, 1 x VGA, 1 x DP, 1 x HDMI, 1 x USB,1 x 1.8m VGA cable,
1 x 1.8m USB cable, DC in power adapter

TM150RW03

15” wide temperature display, true flat 5W resistive, 1 x VGA, 1 x DVI, 1 x USB, 1 x 1.8m VGA cable,
1 x 1.8m USB cable, DC in power adapter

TM150RW04

15” wide temperature display, true flat 5W resistive, 1 x VGA, 1 x DP, 1 x HDMI, 1 x USB,1 x 1.8m VGA cable,
1 x 1.8m USB cable, DC in power adapter

High Brightness

TM150PK03

15” wide temperature display, true flat PCT, 1 x VGA , 1 x DVI, 1 x USB, 1 x 1.8m VGA cable,
1 x 1.8m USB cable, DC in power adapter, 1000 cd/m2

TM150PK04

15” wide temperature display, true flat PCT, 1 x VGA , 1 x DP, 1 x HDMI, 1 x USB,1 x 1.8m VGA cable,
1 x 1.8m USB cable, DC in power adapter, 1000 cd/m2

TM150RK03

15” wide temperature display, true flat 5W resistive, 1 x VGA , 1 x DVI, 1 x USB, 1 x 1.8m VGA cable,
1 x 1.8m USB cable, DC in power adapter, 1000 cd/m2

TM150RK04

15” wide temperature display, true flat 5W resistive, 1 x VGA , 1 x DP, 1 x HDMI, 1 x USB, 1 x 1.8m VGA cable,
1 x 1.8m USB cable, DC in power adapter, 1000 cd/m2

**Specifications are subject to change without notice.


Related Products

15.6" Touch Monitor (WT)

15.6" Touch Monitor (WT)

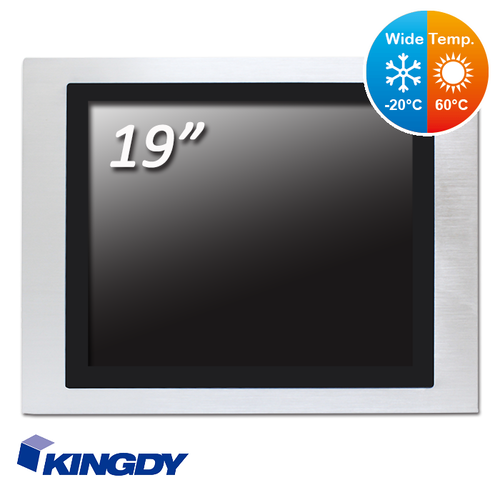

19" Touch Monitor (WT)

19" Touch Monitor (WT)

17" Touch Monitor (WT)

17" Touch Monitor (WT)

10.4" Touch Monitor (WT)

10.4" Touch Monitor (WT)

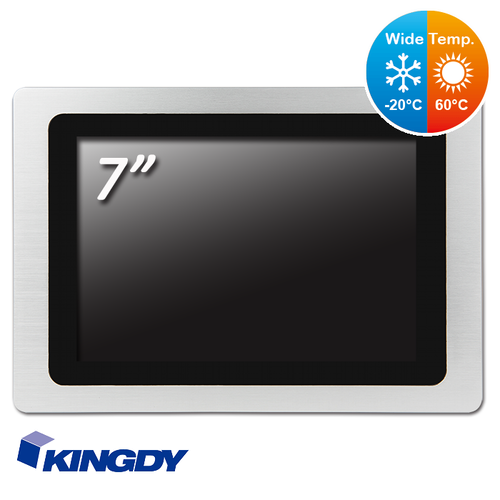

7" Touch Monitor (WT)
