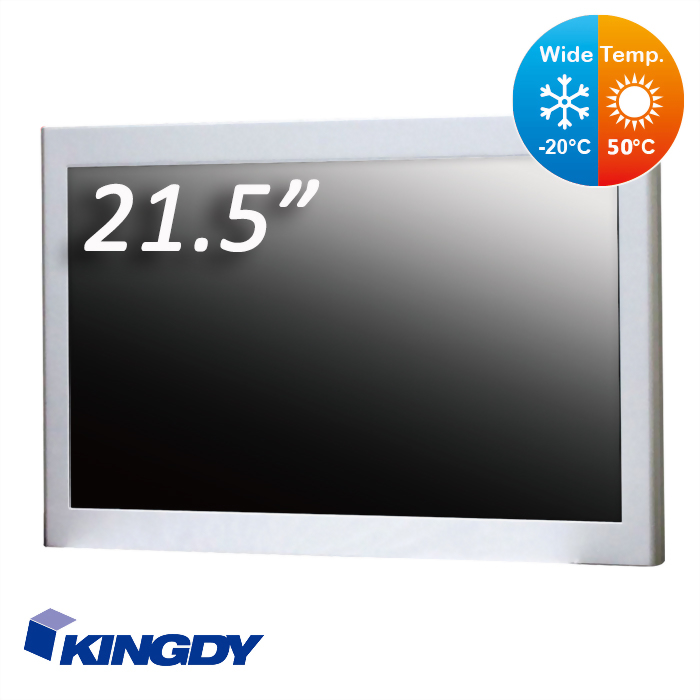

21.5 Touch Monitor (WT)

● Fanless and rugged design
● Wide temperature : -20~ 50°C
● Resolution 1920 x 1080 dpi
● Front IP65 bezel full steel chassis design
● 5 Wires Resistive touch solution
● VESA mount
Model : MM215RW03,MM215RW04

Model No.

MM215RW03

MM215RW04

Display

Size

21.5" TFT (16:9)

Resolution

1920 x 1080 dpi

Colors

16.7M

Luminance

350nit

Contrast Ratio

1000 : 1

View Angle (H/V)

178° / 178°

Optional HB Panel

Resolution

1920 x 1080 dpi

Color

16.7M

Luminance

1000 nit

Contrast Ratio

1000 : 1

Viewing Angle (H/V)

178° / 178°

I/O Ports

VGA

V

V

DVI

V

HDMI

V

DP

V

USB (for touch screen)

V

V

Power Requirement

Power Requirement

DC in 12V

Touch Screen

Touch Screen

5 Wires Resistive (one touch)

OS support

OS support

Win Pro 10  /  Embedded Win 7, 8, 10

Mechanical & Environmental

Operation Temp.

-20°C ~ 50°C for MM215RW03 /MP215RW04

-20°C ~ 40°C for MM215RK03 1000nit 1500nit / MP215RK04 1000nit 1500nit

Storage Humidity

10 ~ 90%, non-condensing

Mounting

VESA mount (100 x 100mm)

Dimension (WxHxD)

578 x 372 x 71 mm

Weight

TBD

Optional

P/N: 302A17005A

1500 cd/m2  High Brightness 21.5” LCD panel 1920 x 1080 dpi

P/N: 2320000001

Optical Bonding

P/N: 3080108001

HMDI 2M cable

P/N: 3080109001

DP 2M cable

P/N: 3120600002

RS232 touch screen

Ordering Information

Standard

MM215RW03

21.5” Wide temp full steel chassis display, 5W resistive, 1 x VGA, 1 x DVI, 1 x USB, 1 x 1.8M VGA cable, 1 x 1.8M USB cable, DC in power adapter

MM215RW04

21.5” Wide temp full steel chassis display, 5W resistive, 1 x VGA, 1 x DP, 1 x HDMI, 1 x 1.8M VGA cable, 1 x 1.8M USB cable, DC in power adapter

High Brightness

MM215RK03

21.5” Wide temp full steel chassis display, 5W resistive, 1 x VGA, 1 x DVI, 1 x USB, 1 x 1.8M VGA cable, 1 x 1.8M USB cable, DC in power adapter,1000nit

MM215RK04

21.5” Wide temp full steel chassis display, 5W resistive, 1 x VGA, 1 x DP, 1 x HDMI, 1 x 1.8M VGA cable, 1 x 1.8M USB cable, DC in power adapter, 1000nit

**Specifications are subject to change without notice.
