Q1: What’s special about
the MSI Mini-ITX mainboard version?
A: It uses a compact yet powerful Intel® Alder Lake-N Mini-ITX board,
offering better expandability and thermal stability for industrial use.
Q2: What’s the difference
between N97 and i3-N305 models?
A: N97 (QC, 12W) focuses on low-power efficiency, while i3-N305 (QC, 9W–15W)
provides higher processing power for advanced automation tasks.
Q3: Is the WP Series
suitable for washdown environments?

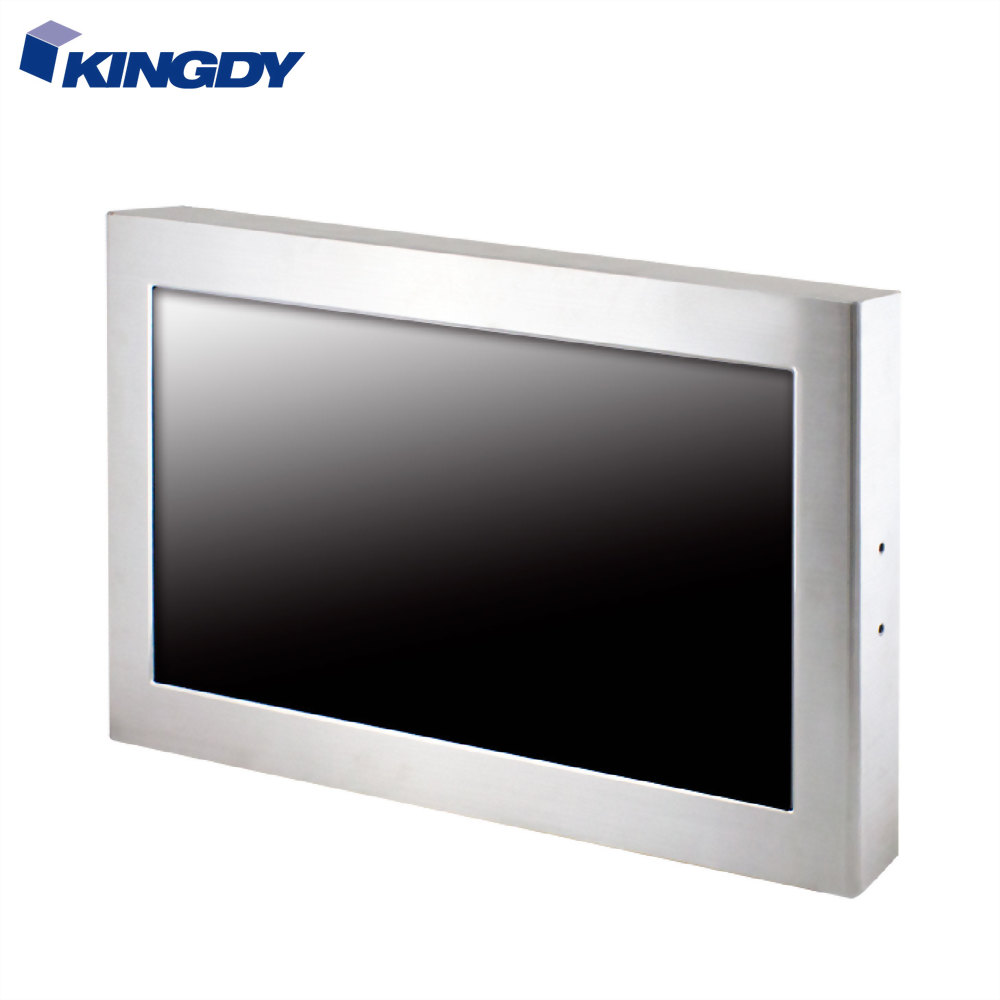

A: Yes, the full stainless IP65 design protects against water, dust, and
cleaning chemicals, perfect for food, beverage, and pharmaceutical
applications.
Q4: Can I use gloves or
wet fingers on the screen?
A: Yes, the 5-wire resistive touch screen allows reliable input under various
working conditions.
Q5: What installation
options are available?
A: Both VESA and Yoke mounting are supported, allowing flexible
installation in control panels or machinery.
Q6: Does it support wide
voltage input?
A: Yes, the WP Series supports DC 9~36V for stable operation in diverse
industrial power conditions.
|
Display for 16:9 Ratio |
|
|||||||
|
Size |
21.5" TFT |
24" TFT |
|
|||||
|
Resolution |
1920 x 1080 |
1920 x 1080 |
|
|||||
|
Colors |
16.7M |
16.7M |
|
|||||
|
Luminance |
250 cd/m2 |
250 cd/m2 |
|
|||||
|
Contrast Ratio |
3000：1 |
1000：1 |
|
|||||
|
View Angle (H/V) |
176°/176° |
170°/160° |
|
|||||
|
Model NO. |
WP215R118S WP240R118S |
WP215R119S WP240R119S |
|
|||||
|
SYSTEM |
|
|||||||
|
CPU |
Intel® IOTG Alder Lake-N Processor N97, QC, 12W |
Intel® IOTG Alder Lake-N Core i3-N305, QC, 9W up to 15W |
|
|||||
|
Memory |
DDR5 4800 MHz SODIMM Slot up to 16GB |
DDR5 4800 MHz SODIMM Slot up to 16GB |
|
|||||
|
Storage |
1 x SATA 3.0 |
1 x SATA 3.0 |
|
|||||
|
OS Support |
Windows 10 IoT Enterprise 2021 LTSC (64-bit, 21H2) Windows 11 IoT Enterprise (64-bit, 23H2, pre-scan) Linux (Support by request) |
|
||||||
|
TPM |
Infineon® SLB 9672VU2.0 |
|
||||||
|
I/O Ports |
⁕ The I/O interface shown may vary depending on the selected motherboard. |
|
||||||
|
M12 RS232 |
2 |
M12 USB 2.0 |
2 |
|
||||
|
M12 GLAN |
2 |
|
|
|
||||
|
Expansion Slot |
|
|||||||
|
M.2 |
1 x M.2 B key (SATA/PCIe x1, USB 3.2 Gen 2 x 1, USB 2.0 w/NANO SIM-Holder), 2242/3042/2280 |
1 x M.2 (Key E, 2230) with PCIe x1, USB 2.0 and CNVi for WiFi optional |
|
|||||
|
1 x M.2 E key (PCIe x1, USB 2.0), 2230 |
1 x M.2 (Key B, 3042/3052) with PCIe x1,USB 3.2/USB 2.0 and SIM for 4G/5G |
|
||||||
|
MECHANICAL & ENVIRONMENTAL |
|
|||||||
|
Operation Temp. |
0 ~ 45°C |
|
||||||
|
Storage Humidity |
10 ~ 90%, non-condensing |
|
||||||
|
Form Factor |
|
|||||||
|
Touch Screen |
5 Wires Resistive ( Single touch ) |
|
||||||
|
Mounting |
VESA mount ( 75 X 75 mm) / ( 100 X 100 mm) & Panel mount & Clip mount |
|
||||||
|
Power Supply |
Full IP67 Waterproof Power adaptor : Specifications may vary by country ( 75W / 100 ~ 305V AC input / 12V DC output) |
|
||||||
|
WIFI Optional |
External Antenna (Wi-Fi): Supports M.2 Wi-Fi module with external antenna connection for enhanced signal performance |
|
||||||
