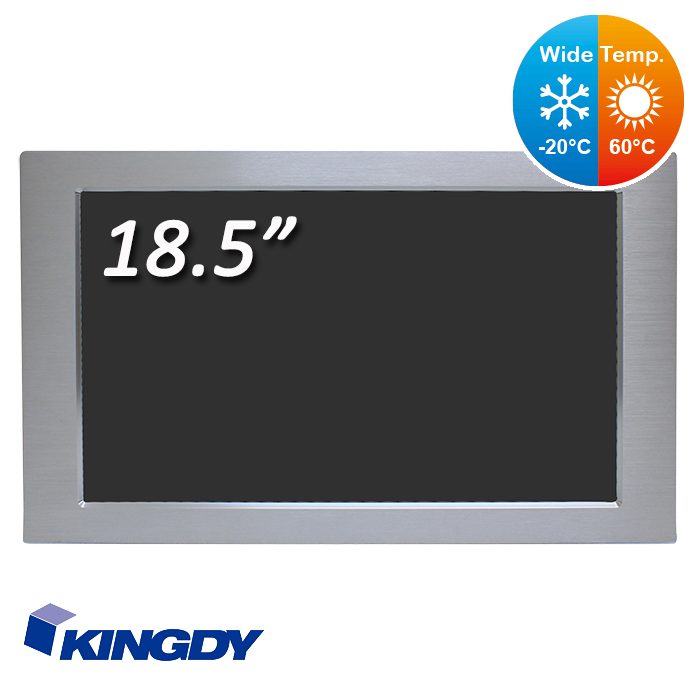

18.5" Touch Monitor (WT)

● Fanless and rugged design
● Wide temperature : -20~60°C
● 5 Wires Resistive touch solution
● IP65 Silver aluminum front bezel
● 304 316 stainless steel front bezel
● Resolution 1920 x 1080 dpi
● VESA mount & Panel mount & Clip mount
● RS232 for remote control function optional
● Optical bonding, high brightness sunlight readable solution
Model : SM186RW03, SM186RW04

Model No.

SM186RW03

SM186RW04

Display

Size

18.5” TFT (16:9)

Resolution

1920 x 1080

Colors

16.7M

Luminance

350 cd/m2

Contrast Ratio

1000 : 1

View Angle (H/V)

170°/160°

I/O Ports

VGA

V

V

DVI

V

HDMI

V

DP

V

USB (for touch screen)

V

V

Power Requirement

Power Requirement

DC in 12V ( 60W )

Touch Screen

Touch Screen

5 Wires Resistive (one touch)

OS support

OS support

Win Pro 7.8.1,10 / embedded Win 7, 8, 10

Mechanical & Environmental

Operation Temp.

20~60°C

Storage Humidity

10 ~ 90%, non-condensing

Mounting

VESA mount (100X100mm) & Panel mount & Clip mount

Dimension (WxHxD)

521 x 317 x 71 mm

Weight

5.7 kg

Optional

P/N: 2320000001

Optical Bonding

P/N: 3080108001

HMDI 2m cable

P/N: 3080109001

DP 2m cable

P/N: 239SP17002

10pcs x Clips

P/N: 3120600002

RS232 touch screen

P/N: 3011100020

Waterproof sponge

P/N: 309M106004

DC in 9V ~ 36V

Ordering Information

SM186RW03

18.5” wide temperature display, 5W resistive, 1 x VGA, 1 x DVI, 1 x USB, 1 x 1.8m VGA cable,
1 x 1.8m USB cable, DC in power adapter

SM186RW04

18.5” wide temperature display, 5W resistive, 1 x VGA, 1 x DP, 1 x HDMI, 1 x USB, 1 x 1.8m VGA cable,
1 x 1.8m USB cable, DC in power adapter

**Specifications are subject to change without notice.
