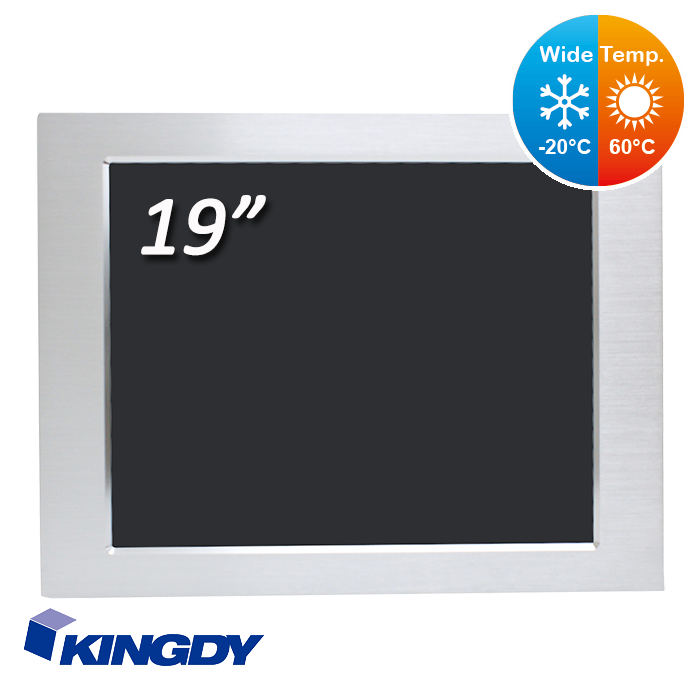

19" Touch Monitor (WT)

● Fanless and rugged design
● Wide temperature : -20~60°C
● 5 Wires Resistive touch solution
● IP65 Silver aluminum front bezel
● 304 316 stainless steel front bezel
● Resolution 1280 x 1024 dpi
● VESA mount & Panel mount & Clip mount
● RS232 for remote control function optional
● Optical bonding, high brightness sunlight readable solution
Model : SM190RW03, SM190RW04

Model No.

SM190RW04

SM190RW04

Display

Size

19" TFT (4:3)

Resolution

1280 x 1024

Colors

16.7M

Luminance

250 cd/m2

Contrast Ratio

1000:1

View Angle (H/V)

170°/160°

High Brightness (Optional)

Resolution

1280 x 1024

Color

16.7M

Luminance

1000 cd/m2

Contrast Ratio

1000 : 1

Viewing Angle (H/V)

170°/160°

I/O Ports

VGA

V

V

DVI

V

HDMI

V

DP

V

USB (for touch screen)

V

V

Power Requirement

Power Requirement

DC in 12V ( 60W )

Touch Screen

Touch Screen

5 Wires Resistive (one touch)

OS support

OS support

Win Pro 10  /  Embedded Win 7, 8, 10

Mechanical & Environmental

Operation Temp.

-20~60°C

Storage Humidity

10 ~ 90%, non-condensing

Mounting

VESA mount (100X100mm) & Panel mount & Clip mount

Dimension (WxHxD)

487 x 377 x 75 mm

Weight

7.4 kg

Optional

P/N: 302A190091

1600 cd/m2 19” LCD panel 1280 x 1024

P/N: 2320000001

Optical Bonding

P/N: 3080108001

HMDI 2m cable

P/N: 3080109001

DP 2m cable

P/N: 239SP17002

10pcs x Clips

P/N: 3120600002

RS232 touch screen

P/N: 3011100020

Waterproof sponge

P/N: 309M106004

DC in 9V ~ 36V for 17” and 19” monitor

Ordering Information

Standard

SM190RW03

19” wide temperature display, 5W resistive, 1 x VGA , 1 x DVI, 1 x USB, 1 x 1.8m VGA cable, 1 x 1.8m USB cable,
DC in power adapter

SM190RW04

19” wide temperature display, 5W resistive ,1 x VGA , 1 x DP, 1 x HDMI, 1 x 1.8m VGA cable, 1 x 1.8m USB cable,
DC in power adapter

High Brightness

SM190RK03

19” wide temperature display, 5W resistive, 1 x VGA , 1 x DVI, 1 x USB, 1 x 1.8m VGA cable, 1 x 1.8m USB cable,
DC in power adapter, 1000 cd/m2

SM190RK04

19” wide temperature display, 5W resistive ,1 x VGA , 1 x DP, 1 x HDMI, 1 x 1.8m VGA cable, 1 x 1.8m USB cable,
DC in power adapter, 1000 cd/m2

**Specifications are subject to change without notice.
