Full IP65 Stainless 12.1" Touch Monitor

● Fanless and rugged housing design
● True Flat PCT / 5 wires resistive touch solution
● Resolution 1024 x 768 dpi
● Full 304 IP65 6 sides stainless enclosure
● VESA mount & Yoke mount
● Full 316 IP65 6 sides stainless enclosure optional
● RS232 for remote control function optional
● Optical bonding, high brightness sunlight readable solution
Model : IM122PS03, IM122PS04, IM122RS03, IM122RS04

Model No.

IM122PS03

IM122RS03

IM122PS04

IM122RS04



Display



Size

12.1" TFT (4:3)



Resolution

1024 x 768



Colors

16.7M



Luminance

350 cd/m2



Contrast Ratio

800 : 1



View Angle (H/V)

160°/160°



High Brightness (Optional)



Resolution

1024 x 768



Colors

16.7M



Luminance

1000 cd/m2



Contrast Ratio

800 : 1



Viewing Angle (H/V)

160°/160°



I/O Ports



VGA

V

V

V

V



HDMI

V

V



USB (for touch screen)

V

V

V

V



Power Requirement



Power Requirement

DC in 12V ( 60W )



Touch Screen



Touch Screen

PCT

5W (one touch)

PCT

5W (one touch)



OS support



OS support

Win Pro 10  /  Embedded Win 7, 8, 10  /  Win 10 IoT



Mechanical & Environmental



Operation Temp.

0 ~ 45°C



Storage Humidity

10 ~ 90%, non-condensing



Mount

VESA mount ( 75 X 75 mm) & Yoke mount



Dimension (WxHxD)

347 x 276 x 57.5 mm



Weight

TBD



Optional



P/N: 2351206003

Full IP65 Waterproof Power adaptor with European power cord
( 60W /
90 ~ 295V AC input / 12V DC output)



P/N: 2352406011

Full IP65 Waterproof Power adaptor with European power cord
(60W /
90 ~ 295V AC input / 24V DC output)



P/N: 2351206004

Full IP65 Waterproof Power adaptor with US power cord
( 60W /
90 ~ 295V AC input / 12V DC output)



P/N: 2352406012

Full IP65 Waterproof Power adaptor with US power cord
(60W /
90 ~ 295V AC input / 24V DC output)



P/N: 2320000001

Optical Bonding



P/N: 302A17005A

1600 cd/m2  12.1” LCD panel 1024 x 768



P/N: 309M106004

DC in 9 ~ 36V



P/N: 3120600002

RS232 touch screen for IM122RS03/04



Order information

Standard

IM122PS03

12.1” full IP65 display, true flat PCT, 1 x VGA, 1 x USB, 1 x 1.8m VGA cable, 1 x 1.8m USB cable, 1 x DC in external power adapter

IM122PS04

12.1” full IP65 display, true flat PCT, 1 x VGA ,1 x USB, 1 x HDMI, 1 x 1.8m VGA cable, 1 x 2m HDMI cable, 1 x 1.8m USB cable, 1 x DC in external power adapter

IM122RS03

12.1” full IP65 display, true flat 5 wires resistive, 1 x VGA, 1 x USB, 1 x 1.8m VGA cable, 1 x 1.8m USB cable, 1 x DC in external power adapter

IM122RS04

12.1” full IP65 display, true flat 5 wires resistive, 1 x VGA, 1 x USB, 1 x HDMI, 1 x 1.8m VGA cable, 1 x 2m HDMI cable, 1 x 1.8m USB cable, 1 x DC in external power adapter

High Brightness

IM122PJ03

12.1” full IP65 Display, True flat PCT, 1 x VGA, 1 x USB, 1 x 1.8m VGA cable, 1 x 1.8m USB cable, 1 x DC in external power adapter, 1000 cd/m2

IM122PJ04

12.1” full IP65 Display, True flat PCT, 1 x VGA, 1 x USB, 1 x HDMI, 1 x 1.8m VGA cable, 1 x 2m HDMI cable, 1 x 1.8m USB cable, 1 x DC in external power adapter, 1000 cd/m2

IM122RJ03

12.1” full IP65 Display, True flat 5 wires resistive, 1 x VGA, 1 x USB, 1 x 1.8m VGA cable, 1 x 1.8m USB cable, 1 x DC in external power adapter, 1000 cd/m2

IM122RJ04

12.1” full IP65 Display, True flat 5 wires resistive, 1 x VGA ,1 x USB, 1 x HDMI, 1 x 1.8m VGA cable, 1 x 2m HDMI cable, 1 x 1.8m USB cable, 1 x DC in external power adapter, 1000 cd/m2

**Specifications are subject to change without notice.





Related Products

Full IP65 Stainless 15.6" Touch Monitor

Full IP65 Stainless 15.6" Touch Monitor

Full IP65 Stainless 17" Touch Monitor (Wide Temp.)

Full IP65 Stainless 17" Touch Monitor (Wide Temp.)

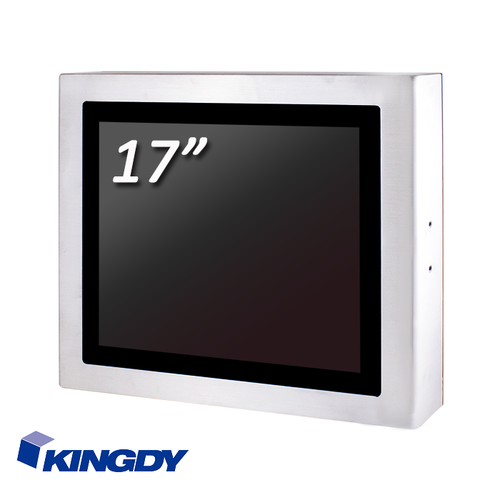

Full IP65 Stainless 17" Touch Monitor
