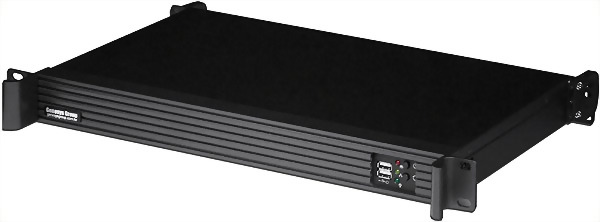

Model No.

EA203FR5

System

CPU

                                              Intel 7^th 6^th Gen Desktop i7 /i5 /i3 / Pentium/ Celeron Series processors

CPU Type

                         LGA 1151 Socket

Chipset

                       Intel H110 Express

Memory

                        Dual-channel 2 x 260Pin DDR4 So-DIMMs 1866/2133Mhz So-DIMMs up to 32GB

H/W Monitor

Watch Dog

                           Timer 256 Level

Smart Fan

                                      2Pcs x (40mm x 20mm) ball bearing system fan

Front Panel

Power Switch

                             1

Power LED

                             1

HDD LED

                             1

I/O Ports

GLAN

1 x Intel I211AT PCIe (10/100/1000 Mbps)

1 x Intel I219V PCIe (10/100/1000Mbps)

USB

                          4 x USB 3.0

RS232

                            1

DP++

                            1

DVI-I

                1 ( DVI-D signal )

VGA

                            1

PS/2

                 1 ( mini-DIN-6)

Audio

1 x Line out, 1 x Mic in , 1 x Line out ( available upon request)

Storage

Storage

3 x SATA 3.0

Internal Structure

Bracket

1 x 2.5” HDD 1 x 3.5” HDD

Expansion slot

PCI e x 16

1

Mini PCI e slot

1 x Full-size

Power Requirement

AC Input

250W Flex Single Power Supply

OS support

OS support

          Window 7(/WES7) 32/64 bit         Debian 8 ( with VESA graphic driver)

                    Window 8.1( 64bit)              CentOS 7 ( with VESA graphic driver)

                  Window 10 IoT Enterprise 64 bit       Liux

       Note: 7^th Gen Intel Core processors only support Win 10

Mechanical & Environmental

Mounting

1U Rack Mount

Operation Temp.

0 ~ 50°C

Storage Humidity

10 ~ 90%, non-condensing

Dimension (W x D x H)

430 x 250 x 44.4 mm

Weight

TBD

Ordering Information

EA203FR5

1U Rack Mount Barebone System with H110 express, CPU cooler, system coolers, 250W flex single power supply

**Specifications are subject to change without notice.
