SYSTEM

CPU

Intel® Mobile 13th Core™ i7-1365UE , 28W

Memory

Single DDR5-5200 MHz SODIMM Slot up to 32GB

Storage

1 x SATA 3.0

OS Support

Windows 10 IoT Enterprise 2021 LTSC (64-bit, 21H2)

Windows 11 IoT Enterprise LTSC (64-bit, 24H2)

Linux (Support by request)

TPM

Infineon SLB9672VU2.0

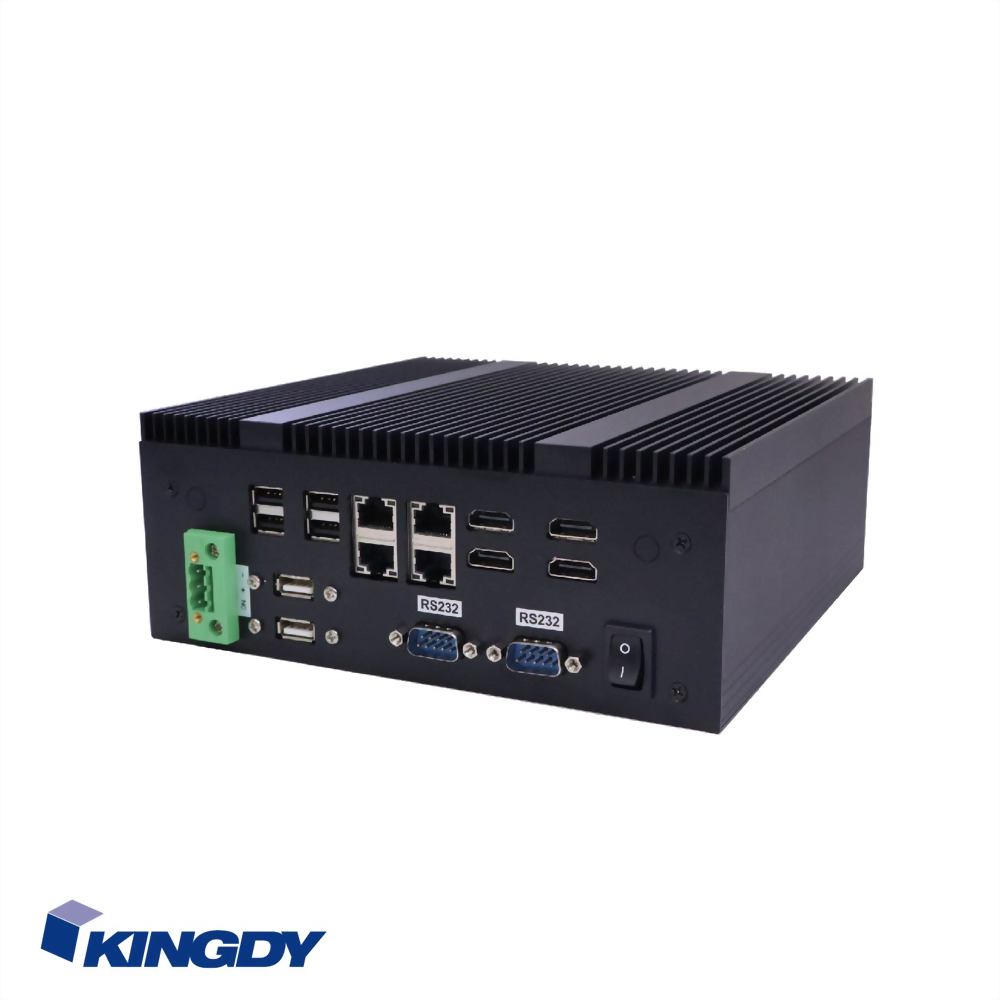

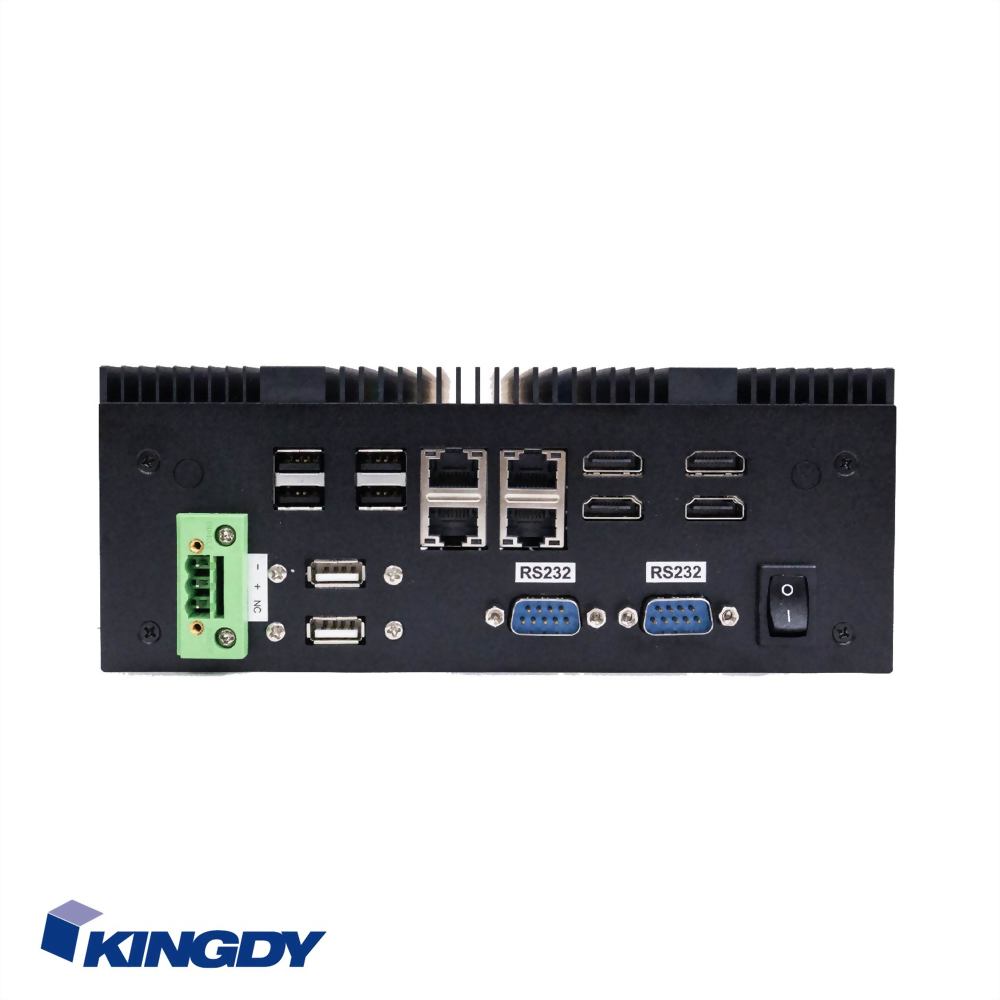

I/O Ports

RS232/422/485

2  (Optional)

HDMI

4

GLAN

4

USB 3.2 Gen2

4

Expansion Slot

M.2

1 x M.2 M key (PCIe Gen4 x4 NVMe), 2280

1 x M.2 B key (PCIe x1, USB 2.0, w/NANO SIM-Holder), 2242/3042

1 x M.2 E key (PCIe x1, USB 2.0, w/CNVi), 2230 for WiFi  (Optional)

MECHANICAL & ENVIRONMENTAL

Operation Temp.

0 ~ 60°C

Storage Humidity

10 ~ 90%, non-condensing

Form Factor

Mounting

Wall mount

Power Supply

3 Pin Power Terminal Block for DC-in 12~24V
