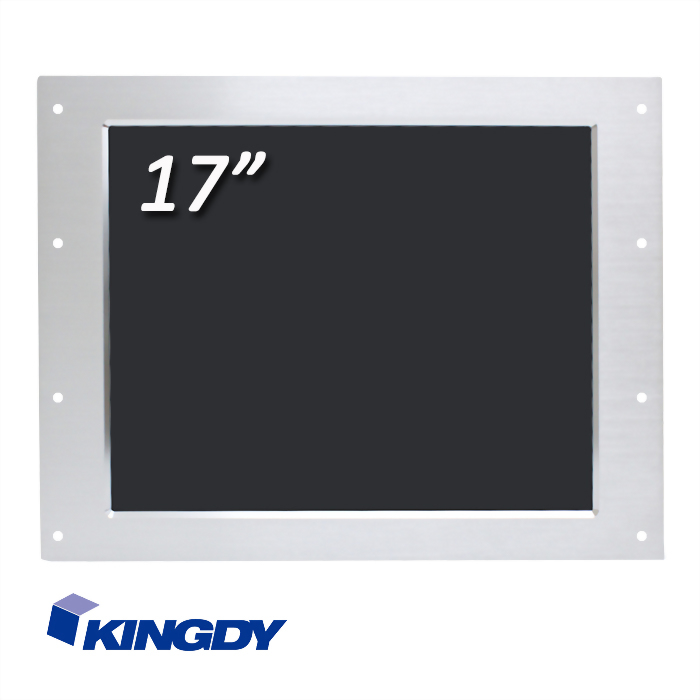

17" Touch Monitor

● Fanless and rugged design
● 5 Wires Resistive touch solution
● IP65 Silver rack mount aluminum front bezel
● Resolution 1280 x 1024 dpi
● Rack mount & VESA mount
● Optical bonding, High brightness sunlight readable solution
● RS232 for remote control function optional
● Optical bonding, high brightness sunlight readable solution
Model : SM170RR03, SM170RR04

Model No.

SM170RR03

SM170RR04

Display

Size

17" TFT (4:3)

Resolution

1280 x 1024

Colors

16.2M

Luminance

350 cd/m2

Contrast Ratio

1000:1

View Angle (H/V)

170°/160°

High Brightness (Optional)

Resolution

1280 x 1024

Colors

16.7M

Luminance

1000 cd/m2

Contrast Ratio

1000 : 1

Viewing Angle (H/V)

170°/165°

I/O Ports

VGA

V

V

DVI

V

HDMI

V

DP

V

USB (for touch screen)

V

V

Power Requirement

Power Requirement

DC in 12V

Touch Screen

Touch Screen

5 Wires Resistive (one touch)

OS support

OS support

Win Pro 7.8 10  /  Embedded Win 7, 8, 10

Mechanical & Environmental

Operation Temp.

-20~ 60°C

Storage Humidity

10 ~ 90%, non-condensing

Mounting

VESA mount (100X100mm) & Rack mount

Dimension (WxHxD)

485 x 352 x 72 mm

Weight

5.9 kg

Optional

P/N: 302A17005B

1600 cd/m2 17” LCD panel 1280 x 1024

P/N: 2320000001

Optical Bonding

P/N: 3080108001

HMDI 2M cable

P/N: 3080109001

DP 2m cable

P/N: 3120600002

RS232 touch screen

P/N: 309M106004

DC in 9V ~ 36V for 17” and 19” monitor

Ordering Information

Standard

SM170RR03

17” rack mount display, 5W resistive, 1 x VGA , 1 x DVI, 1 x USB, 1 x 1.8m VGA cable, 1 x 1.8m USB cable, DC in power adapter

SM170RR04

17” rack mount display, 5W resistive ,1 x VGA , 1 x DP, 1 x HDMI, 1 x USB, 1 x 1.8m VGA cable, 1 x 1.8m USB cable, DC in power adapter

High Brightness

SM150RU04

15” rack mount display, 5W resistive, 1 x VGA , 1 x DP, 1 x HDMI, 1 x USB, 1 x 1.8m VGA cable, 1 x 1.8m USB cable, DC in power adapter, 1000 cd/m2

SM170RU03

17” rack mount display, 5W resistive, 1 x VGA , 1 x DVI, 1 x USB, 1 x 1.8m VGA cable, 1 x 1.8m USB cable, DC in power adapter, 1000 cd/m2

**Specifications are subject to change without notice.
