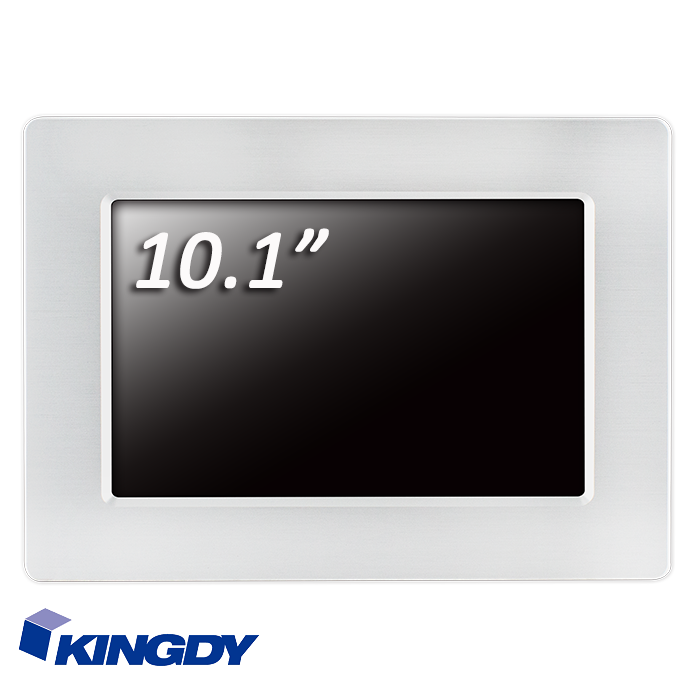

10.1" Touch Monitor

● Fanless and rugged design
● 5 Wires Resistive touch solution
● IP65 Silver aluminum front bezel
● 304 316 stainless steel front bezel
● Resolution 1280 x 800 dpi
● VESA mount & Panel mount & Clip mount
● RS232 for remote control function optional
● Optical bonding solution
Model : SM101RS03, SM101RS04

Model No.

SM101RS03

SM101RS04

Display

Size

10.1" TFT (16:9)

Resolution

1280 x 800

Colors

16.7M

Luminance

500 cd/m2

Contrast Ratio

800 : 1

View Angle (H/V)

170°/170°

I/O Ports

VGA

V

V

DVI

V

HDMI

V

DP

V

USB (for touch screen)

V

V

Power Requirement

Power Requirement

DC in 12V external power adapter ( 60W )

Touch Screen

Touch Screen

5 Wires Resistive (one touch)

OS support

OS support

Win Pro 7.8.1, 10 / embedded Win 7, 8, 10

Mechanical & Environmental

Operation Temp.

0 ~ 45°C

Storage Humidity

10 ~ 90%, non-condensing

Mounting

VESA mount ( 75 X 75 mm) & Panel mount & Clip mount

Dimension (WxHxD)

298 x 213 x 63 mm

Weight

2 kg

Optional

P/N: 2320000001

Optical Bonding

P/N: 3080108001

HMDI 2m cable

P/N: 3080109001

DP 2m cable

P/N: 239SP17002

8pcs x Clips

P/N: 3120600002

RS232 touch screen

P/N: 3011100020

Waterproof sponge

Ordering Information

SM101RS03

10.1” display, 5W resistive, 1 x VGA, 1 x DVI, 1 x USB, 1 x 1.8m VGA cable, 1 x 1.8m USB cable,
DC in power adapter

SM101RS04

10.1” display, 5W resistive, 1 x VGA, 1 x DP, 1 x HDMI, 1 x USB, 1 x 1.8m VGA cable, 1 x 1.8m USB cable,
DC in power adapter

**Specifications are subject to change without notice.
