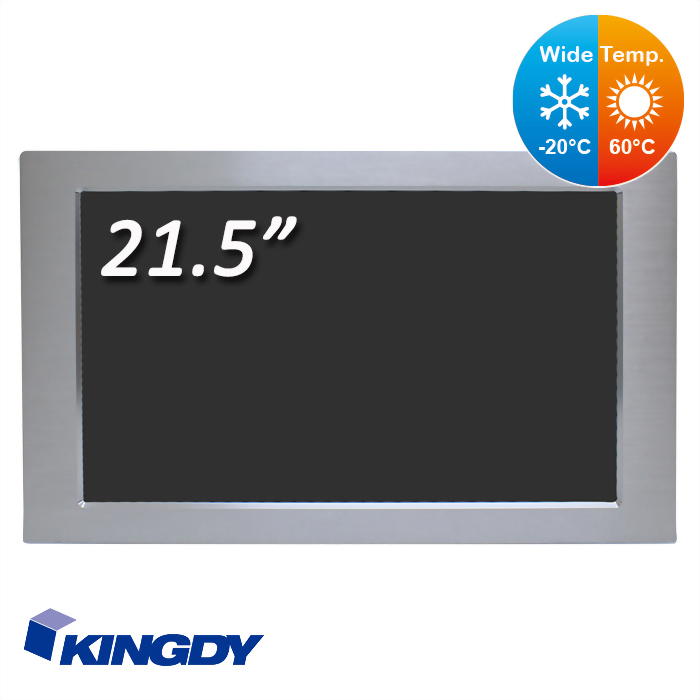

21.5" Touch Monitor (WT)

● Fanless and rugged design
● Wide temperature: -20 ~ 60°C
● 5 Wires Resistive touch solution
● IP65 Silver aluminum front bezel
● 304 316 stainless steel front bezel
● Resolution 1920 x 1080 dpi
● VESA mount & Panel mount & Clip mount
● RS232 for remote control function optional
● Optical bonding, high brightness sunlight readable solution
Model : SM215RW03,SM215RW04

Model No.

SM215RW03

SM215RW04

Display

Size

21.5" TFT (16:9)

Resolution

1920 x 1080 dpi

Colors

16.7M

Luminance

350nit

Contrast Ratio

1000 : 1

View Angle (H/V)

178° / 178°

High brightness (Optional)

Resolution

1920 x 1080 dpi

Color

16.7M

Luminance

1000nit

Contrast Ratio

1000 : 1

Viewing Angle (H/V)

178° / 178°

I/O Ports

VGA

V

V

DVI

V

HDMI

V

DP

V

USB (for touch screen)

V

V

Power Requirement

Power Requirement

DC in 12V

Touch Screen

Touch Screen

5 Wires Resistive (one touch)

OS support

OS support

Win Pro 7.8.1,10 / embedded Win 7, 8, 10

Mechanical & Environmental

Operation Temp.

-20 ~ 60°C

Storage Humidity

10 ~ 90%, non-condensing

Mounting

VESA mount (100 x 100mm) & Panel mount & Clip mount

Dimension (WxHxD)

581 x 337 x 74 mm

Weight

7.2 kg

Optional

P/N: 2320000001

Optical Bonding

P/N: 3080108001

HMDI 2M cable

P/N: 3080109001

DP 2M cable

P/N: 239SP17002

10pcs x Clips

P/N: 3120600002

RS232 touch screen

P/N: 3011100020

Waterproof sponge

P/N: 309M106004

DC in 9V ~ 36V

P/N: 302A17005A

1500nit high brightness 21.5” LCD panel 1920 x 1080 dpi

Ordering Information

SM215RW03

21.5.” wide temperature display, 5W resistive, 1 x VGA, 1 x DVI, 1 x USB, 1 x 1.8M VGA cable, 1 x 1.8M USB cable, DC in power adapter

SM215RW04

21.5” wide temperature display, 5W resistive, 1 x VGA, 1 x DP, 1 x HDMI, 1 x USB, 1 x 1.8M VGA cable, 1 x 1.8M USB cable, DC in power adapter

SM215RK03

21.5” wide temperature display, 5W resistive, 1 x VGA, 1 x DVI, 1 x USB, 1 x 1.8M VGA cable, 1 x 1.8M USB cable, DC in power adapter, 1000nit.

SM215RK04

21.5” wide temperature display, 5W resistive, 1 x VGA, 1 x DP, 1 x HDMI, 1 x USB, 1 x 1.8M VGA cable, 1 x 1.8M USB cable, DC in power adapter, 1000nit

**Specifications are subject to change without notice.



Related Products

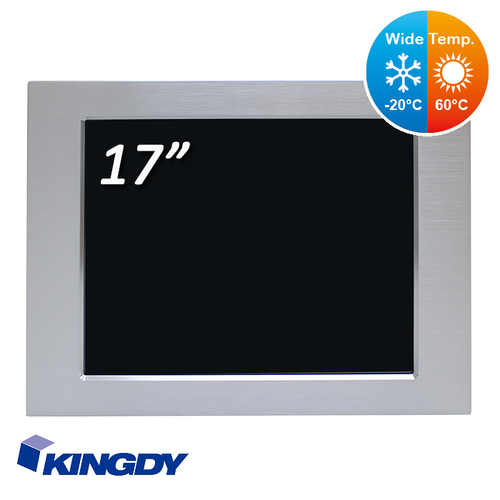

17" Touch Monitor (WT)

17" Touch Monitor (WT)

19" Touch Monitor (WT)

19" Touch Monitor (WT)

10.1" Touch Monitor (WT)

10.1" Touch Monitor (WT)

10.4" Touch Monitor (WT)

10.4" Touch Monitor (WT)

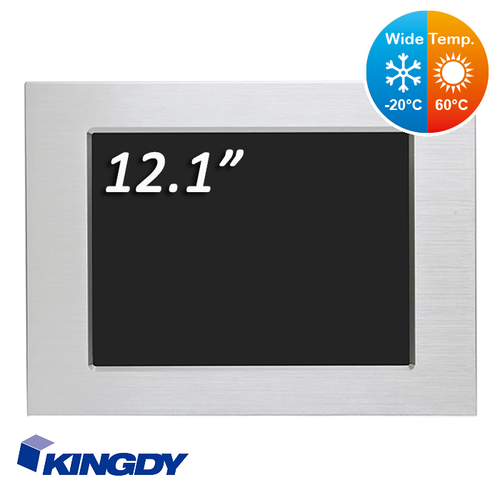

12.1" Touch Monitor (WT)
