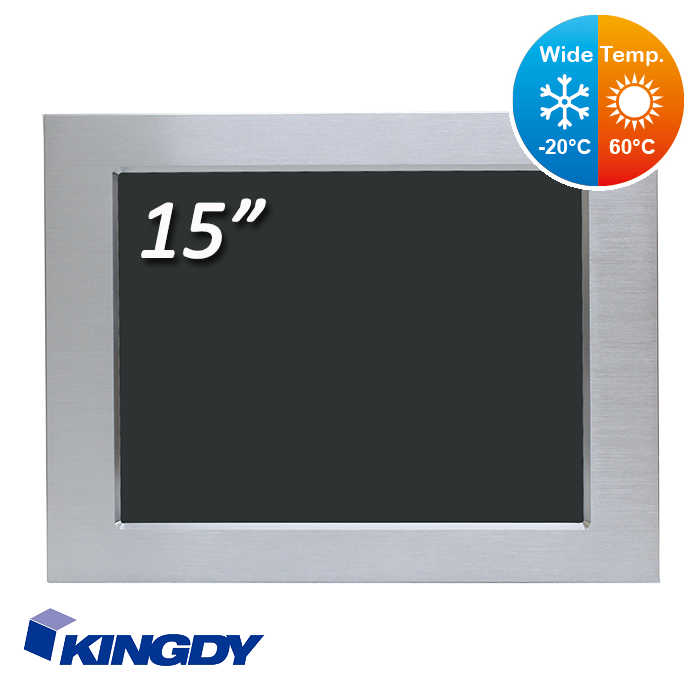

15" Touch Monitor (WT)

● Fanless and rugged design
● Wide temperature : -20~60°C
● 5 Wires Resistive touch solution
● IP65 Silver aluminum front bezel
● Resolution 1024 x 768 dpi
● VESA mount & Panel mount & Clip mount
Model : SM150RW03, SM150RW04

Model No.

SM150RW03

SM150RW04

Display

Size

15" TFT (4:3)

Resolution

1024 x 768

Colors

16.2M

Luminance

300 cd/m2

Contrast Ratio

2000:1

View Angle (H/V)

176°/176°

High Brightness (Optional)

Resolution

1024 x 768

Color

16.2M

Luminance

1000 cd/m2

Contrast Ratio

2000 : 1

Viewing Angle (H/V)

176°/176°

I/O Ports

VGA

V

V

DVI

V

HDMI

V

DP

V

USB (for touch screen)

V

V

Power Requirement

Power Requirement

DC in 12V ( 60W )

Touch Screen

Touch Screen

5 Wires Resistive (one touch)

OS support

OS support

Win Pro 10  /  Embedded Win 7, 8, 10

Mechanical & Environmental

Operation Temp.

-20~ 60°C

Storage Humidity

10 ~ 90%, non-condensing

Mounting

VESA mount (100X100mm) & Panel mount & Clip mount

Dimension (WxHxD)

401 x 304 x 70 mm

Weight

4.4 kg

Optional

P/N: 302A170051

1600 cd/m2 15” LCD panel 1024 x 768

P/N: 2320000001

Optical Bonding

P/N: 3080108001

HMDI 2m cable

P/N: 3080109001

DP 2m cable

P/N: 239SP17002

10pcs x Clips

P/N: 3120600002

RS232 touch screen

P/N: 3011100020

Waterproof sponge

Ordering Information

Standard

SM150RW03

15” wide temperature display, 5W resistive , 1 x VGA , 1 x DVI, 1 x USB, 1 x 1.8m VGA cable, 1 x 1.8m USB cable,
DC in power adapter

SM150RW04

15” wide temperature display, 5W resistive, 1 x VGA , 1 x DP, 1 x HDMI, 1 x 1.8m VGA cable, 1 x 1.8m USB cable,
DC in power adapter

High Brightness

SM150RK03

15” wide temperature display, 5W resistive , 1 x VGA , 1 x DVI, 1 x USB, 1 x 1.8m VGA cable, 1 x 1.8m USB cable,
DC in power adapter, 1000 cd/m2

SM150RK04

15” wide temperature display, 5W resistive, 1 x VGA , 1 x DP, 1 x HDMI, 1 x 1.8m VGA cable, 1 x 1.8m USB cable,
DC in power adapter, 1000 cd/m2

**Specifications are subject to change without notice.
