Model No.

QQB103/104/105/106SD

QB103/104/105/106SW

System

CPU

                11th Gen Intel® IoTG Mobile Tiger lake Core™ Celeron 6305E(103) / i3 1115G4E (104) / i5 1145G7E (105)

                                                                          i7 1185G7E (106) CPU (On Board)

Memory

2 x 260-pin DDR4 3200MHz SODIMM up to 64 GB

H/W Monitor

H/W Monitor

Watch Dog Timer 256 Level

TPM

Controller

Infineon SLB9670VQ2.0

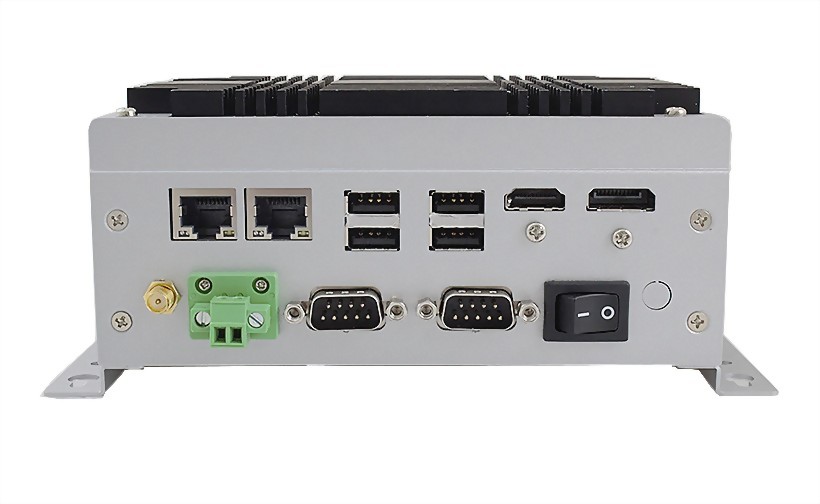

I/O Ports

USB 3.2

4

USB 2.0

2

RS232 / RS422 / RS485

4

GLAN

2

HDMI

1

DP

1

GPIO

16 bits ( 8 x GPI , 8 x GPO), 5V , 2 x D- SUB connectors

Storage

Storage

1 x SATA 3.0

Expansion

M.2

                                                            1 x M.2 M Key( PCI e Gen x 4 NVMe) 2280

                              1 x M.2 B Key ( PCI e x 1 USB 2.0 with NANO SIM Holder, SATA 3.0) 2242 / 3042

                                                             1 x M.2 E Key ( PCI e x 1 USB 2.0 ) 2230

Power Requirement

Power Requirement

2 Pin power terminal block for DC in 12 ~ 24V ( OCP & OVP )

OS support

OS support

Win Pro 10 / Win 10 IoT (64 bit RS5) / Linux kernel 5.4 Ubuntu LTS

Mechanical & Environmental

Operation Temp.

0 ~50°C

Storage Humidity

10 ~ 90%, non-condensing

Mounting

DIN Rail

Wall mount

Construction

Aluminum heatsink + Steel chassis

Dimension (WxHxD)

TBA

Weight

TBA

Optional

P/N: 3080213001

Line out & MIC in for QB075/076/077SW

P/N: 2390000003

External antenna ( WIFI)

P/N: 3121700002

5GB LTE module

**Specifications are subject to change without notice.

Ordering Information

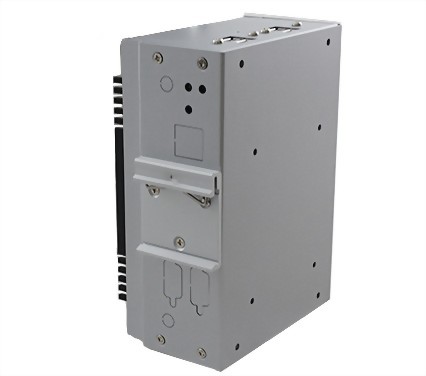

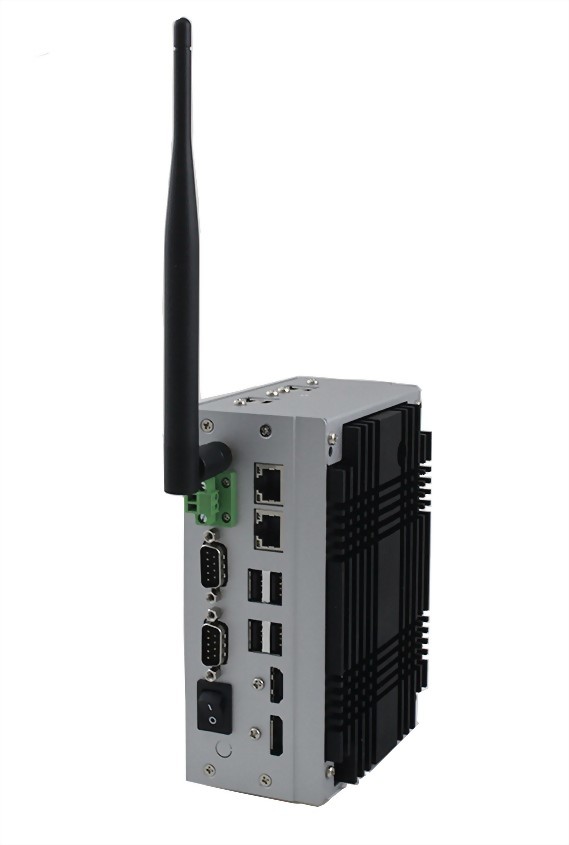

DIN Rail installation

QB103SD04128

Fanless DIN Rail Box PC, Intel Celeron 6305E, 4GB DDR 4 So-DIMM, M.2 128GB SSD, 1 x DC in external power adapter

QB104SD04128

Fanless DIN Rail Box PC, Intel i3 1115G4E, 4GB DDR 4 So-DIMM,M.2 128GB SSD, 1 x DC in external power adapter

QB105SD04128

Fanless DIN Rail Box PC, Intel i5 1145G7E, 4GB DDR 4 So-DIMM, M.2 128GB SSD, 1 x DC in external power adapter

QB106SD04128

Fanless DIN Rail Box PC, Intel i7 1185G7E, 4GB DDR 4 So-DIMM, M.2 128GB SSD, 1 x DC in external power adapter

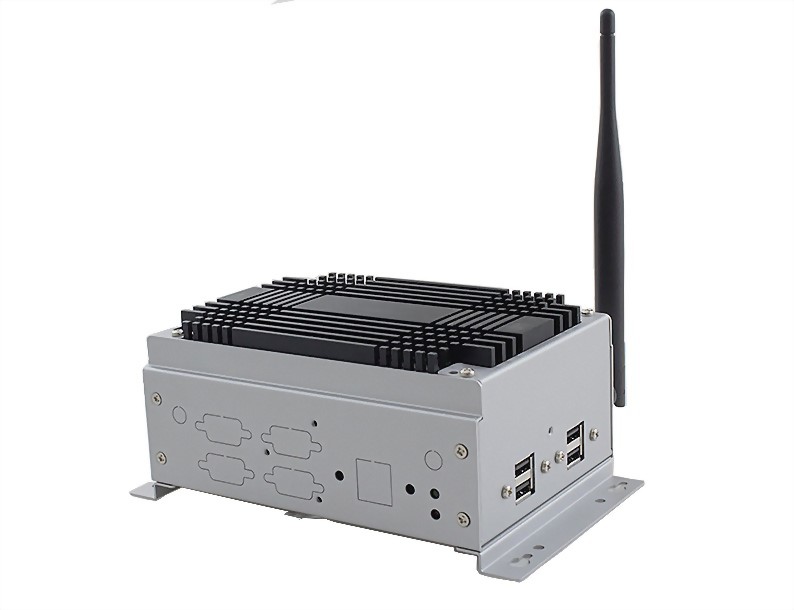

Wall Mount installation

QB103SW04128

Fanless Wall Mount Box PC, Intel Celeron 6305E, 4GB DDR 4 So-DIMM, M.2 128GB SSD, 1 x DC in external power adapter

QB104SW04128

Fanless Wall Mount Box PC, Intel i3 1115G4E, 4GB DDR 4 So-DIMM, M.2 128GB SSD, 1 x DC in external power adapter

QB105SW04128

Fanless Wall Mount Box PC, Intel i5 1145G7E, 4GB DDR 4 So-DIMM, M.2 128GB SSD, 1 x DC in external power adapter

QB106SW04128

Fanless Wall Mount Box PC, Intel i7 1185G7E, 4GB DDR 4 So-DIMM, M.2 128GB SSD, 1 x DC in external power adapter
