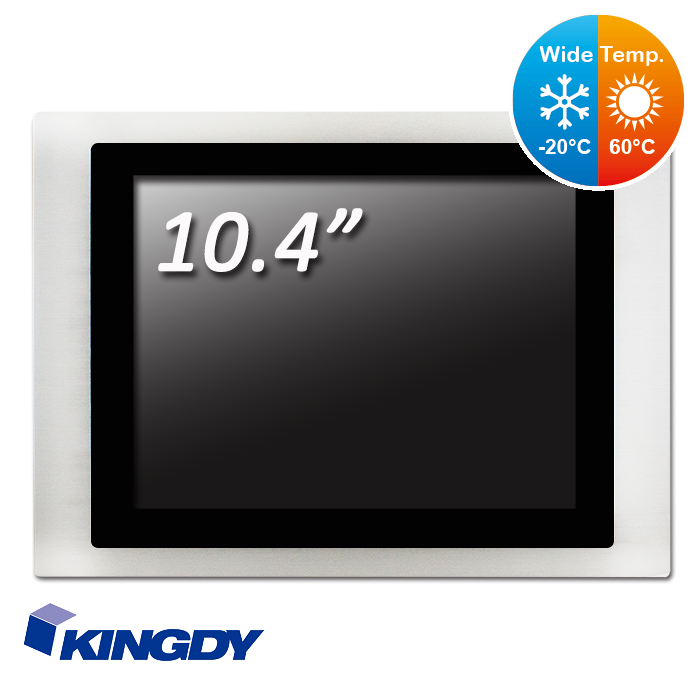

10.4" Touch Monitor (WT)

● Fanless and rugged design
● Wide temperature: -20~60°C
● Front IP69K true flat PCT / IP66 5 wires Resistive touch solution
● Resolution 1024 x 768 dpi
● Silver aluminum front bezel
● 304 316 stainless steel front bezel
● VESA mount & Panel mount & Clip mount
● RS232 for remote control function optional
● Optical bonding, high brightness sunlight readable solution
Model : TM105PW03, TM105PW04, TM105RW03, TM105RW04

Model No.

TM105PW03

TM105RW03

TM105PW04

TM105RW04

Display

Size

10.4" TFT (4:3)

Resolution

1024 x 768

Colors

16.7M

Luminance

350 cd/m2

Contrast Ratio

900 : 1

View Angle (H/V)

150°/150°

High Brightness (Optional)

Resolution

1024 x 768

Colors

16.7M

Luminance

1000 cd/m2

Contrast Ratio

900 : 1

Viewing Angle (H/V)

150°/150°

I/O Ports

VGA

V

V

DVI

V

HDMI

V

DP

V

USB (for touch screen)

V

V

Power Requirement

Power Requirement

DC in 12V ( 60W )

Touch Screen

Touch Screen

PCT

5W (one touch)

PCT

5W (one touch)

OS support

OS support

Win Pro 7,8 10  /  Embedded Win 7, 8, 10  /  Win 10 IoT

Mechanical & Environmental

Operation Temp.

-20~60°C

Storage Humidity

10 ~ 90%, non-condensing

Mounting

VESA mount ( 75 x 75 mm) & Panel mount & Clip mount

Dimension (WxHxD)

297 x 240 x 59 mm

Weight

TBD

Optional

P/N: 2320000001

Optical Bonding

P/N: 3080108001

HMDI 2m cable

P/N: 3080109001

DP 2m cable

P/N: 239SP17002

8pcs x Clips

P/N: 3011100020

Waterproof sponge

Ordering Information

Standard

TM105PW03

10.4” wide temperature display, true flat PCT, 1 x VGA, 1 x DVI, 1 x USB, 1 x 1.8m VGA cable,
1 x 1.8m USB cable, DC in power adapter

TM105PW04

10.4” wide temperature display, true flat PCT, 1 x VGA, 1 x DP, 1 x HDMI, 1 x USB, 1 x 1.8m VGA cable,
1 x 1.8m USB cable, DC in power adapter

TM105RW03

10.4” wide temperature display, true flat 5W resistive, 1 x VGA, 1 x DVI, 1 x USB, 1 x 1.8m VGA cable,
1 x 1.8m USB cable, DC in power adapter

TM105RW04

10.4” wide temperature display, true flat 5W resistive, 1 x VGA, 1 x DP, 1 x HDMI, 1 x USB, 1 x 1.8m VGA cable,
1 x 1.8m USB cable, DC in power adapter

High Brightness

TM105PK03

10.4” wide temperature display, true flat PCT, 1 x VGA, 1 x DVI, 1 x USB, 1 x 1.8m VGA cable,
1 x 1.8m USB cable, DC in power adapter, 1000 cd/m2

TM105PK04

10.4” wide temperature display, true flat PCT, 1 x VGA, 1 x DP, 1 x HDMI, 1 x USB,1 x 1.8m VGA cable,
1 x 1.8m USB cable, DC in power adapter, 1000 cd/m2

TM105RK03

10.4” wide temperature display, true flat 5W resistive, 1 x VGA, 1 x DVI, 1 x USB, 1 x 1.8m VGA cable,
1 x 1.8m USB cable, DC in power adapter, 1000 cd/m2

TM105RK04

10.4” wide temperature display, true flat 5W resistive, 1 x VGA, 1 x DP, 1 x HDMI, 1 x USB,1 x 1.8m VGA cable,
1 x 1.8m USB cable, DC in power adapter, 1000 cd/m2

**Specifications are subject to change without notice.
