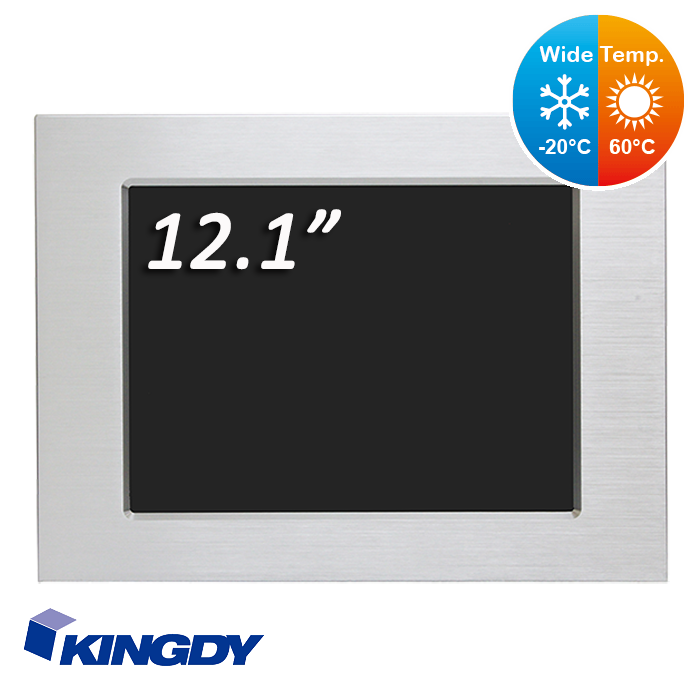

Model No. |
SM122RW03 |
SM122RW04 |
|
Display |
|||
Size |
12.1" TFT (4:3) |
||
Resolution |
1024 x 768 |
||
Colors |
16.7M |
||
Luminance |
350 cd/m2 |
||
Contrast Ratio |
800 : 1 |
||
View Angle (H/V) |
160°/160° |
||
High Brightness (Optional) |
|||
Resolution |
1024 x 768 |
||
Color |
16.7M |
||
Luminance |
1000 cd/m2 |
||
Contrast Ratio |
800 : 1 |
||
Viewing Angle (H/V) |
160°/160° |
||
I/O Ports |
|||
VGA |
V |
V |
|
DVI |
V |
|
|
HDMI |
|
V |
|
DP |
|
V |
|
USB (for touch screen) |
V |
V |
|
Power Requirement |
|||
Power Requirement |
DC in 12V ( 60W ) |
||
Touch Screen |
|||
Touch Screen |
5 Wires Resistive (one touch) |
||
OS support |
|||
OS support |
Win Pro 7.8.1, 10 / embedded Win 7, 8, 10 |
||
Mechanical & Environmental |
|||
Operation Temp. |
-20~ 60°C |
||
Storage Humidity |
10 ~ 90%, non-condensing |
||
Mounting |
VESA mount ( 75 x 75 mm) & Panel mount & Clip mount |
||
Dimension (WxHxD) |
350 x 264 x 70 mm |
||
Weight |
TBD |
||
Optional |
|||
P/N: 302A17005A |
1600 cd/m2 12.1” LCD panel 1280 x 1024 |
||
P/N: 2320000001 |
Optical Bonding |
||
P/N: 3080108001 |
HMDI 2m cable |
||
P/N: 3080109001 |
DP 2m cable |
||
P/N: 239SP17002 |
8pcs x Clips |
||
P/N: 3120600002 |
RS232 touch screen |
||
P/N: 3011100020 |
Waterproof sponge |
||
Ordering Information |
|||
Standard |
|||
SM122RW03 |
12.1” wide temperature
display, 5W resistive, 1 x VGA, 1 x DVI, 1 x USB, 1 x 1.8m VGA cable, |
||
SM122RW04 |
12.1” wide temperature display,
5W resistive, 1 x VGA, 1 x DP, 1 x HDMI, 1 x
USB, 1 x 1.8m VGA cable, |
||
High Brightness |
|||
SM122RK03 |
12.1” wide temperature display,
5W resistive, 1 x VGA , 1 x DVI, 1 x USB, 1 x 1.8m VGA cable, |
||
SM122RK04 |
12.1” wide temperature display, 5W resistive, 1 x
VGA , 1 x DP, 1 x HDMI, 1 x USB, 1 x 1.8m VGA cable, |
||
**Specifications are subject to change without notice. |
