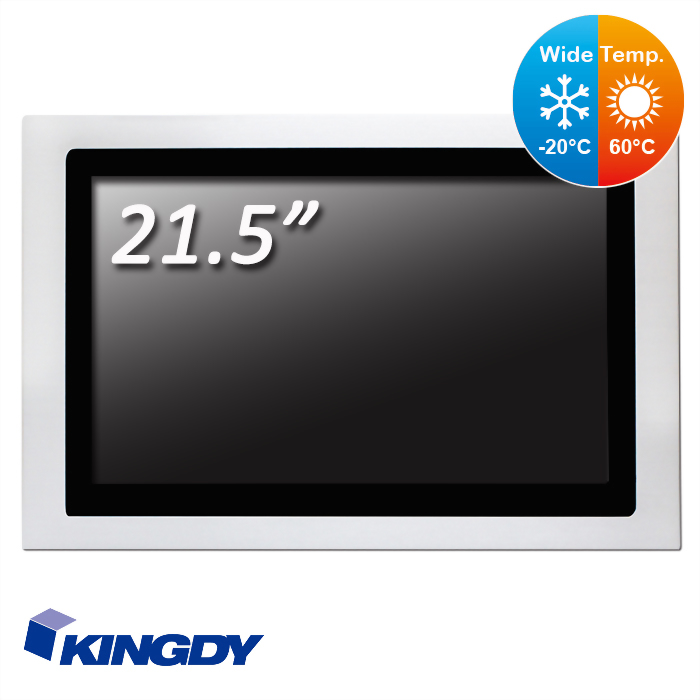

21.5" Touch monitor (WT)

● Fanless and rugged design
● Wide temperature: -20 ~ 60°C
● Front IP69K IP66 true flat PCT touch screen
● Resolution 1920 x 1080 dpi
● Silver aluminum front bezel
● 304 316 stainless steel front bezel
● VESA mount & Panel mount & Clip mount
● RS232 for remote control function optional
● Optical bonding, high brightness sunlight readable solution
Model : TM215PW03,TM215PW04

Model No.

TM215PW03

TM215PW04

Display

Size

21.5" TFT (16:9)

Resolution

1920 x 1080 dpi

Colors

16.7M

Luminance

350nit

Contrast Ratio

1000 : 1

View Angle (H/V)

178° / 178°

High Brightness (Optional)

Resolution

1920 x 1080 dpi

Color

16.7M

Luminance

1000nit

Contrast Ratio

1000 : 1

Viewing Angle (H/V)

178° / 178°

I/O Ports

VGA

V

V

DVI

V

HDMI

V

DP

V

USB (for touch screen)

V

V

Power Requirement

Power Requirement

DC in 12V

Touch Screen

Touch Screen

True Flat PCT touch

OS support

OS support

Win Pro 10  /  Embedded Win 7, 8, 10  /  Win 10 IoT

Mechanical & Environmental

Operation Temp.

-20 ~ 60°C

Storage Humidity

10 ~ 90%, non-condensing

Mounting

VESA mount (100 x 100mm) & Panel mount & Clip mount

Dimension (WxHxD)

607 x 395 x 71 mm

Weight

7.0 kg

Optional

P/N: 2320000001

Optical Bonding

P/N: 302A17005A

1500nit high brightness 21.5” LCD panel 1920 x 1080 dpi

P/N: 3080108001

HMDI 2M cable

P/N: 3080109001

DP 2M cable

P/N: 239SP17002

10pcs x Clips

P/N: 3011100020

Waterproof sponge

Ordering Information

TM215PW03

21.5” wide temp display, true flat PCT, 1 x VGA, 1 x DVI, 1 x USB, 1 x 1.8M VGA cable, 1 x 1.8M USB cable, DC in power adapter

TM215PW04

21.5” wide temp display, true flat PCT, 1 x VGA, 1 x DP, 1 x HDMI, 1 x USB, 1 x 1.8M VGA cable, 1 x 1.8M USB cable, DC in power adapter

TM215PK03

21.5” wide temp display, true flat PCT, 1 x VGA, 1 x DVI, 1 x USB, 1 x 1.8M VGA cable, 1 x 1.8M USB cable, DC in power adapter, 1000nit

TM215PK04

21.5” wide temp display, true flat PCT, 1 x VGA, 1 x DP, 1 x HDMI, 1 x USB, 1 x 1.8M VGA cable, 1 x 1.8M USB cable, DC in power adapter, 1000nit

**Specifications are subject to change without notice.



Related Products

10.4" Touch Monitor (WT)

10.4" Touch Monitor (WT)

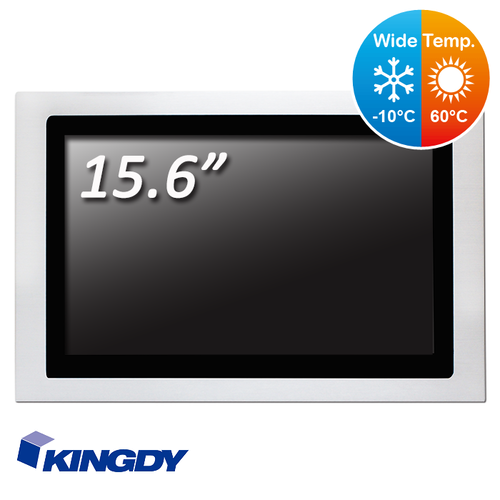

15.6" Touch Monitor (WT)

15.6" Touch Monitor (WT)

12.1” Touch Monitor (WT)

12.1” Touch Monitor (WT)

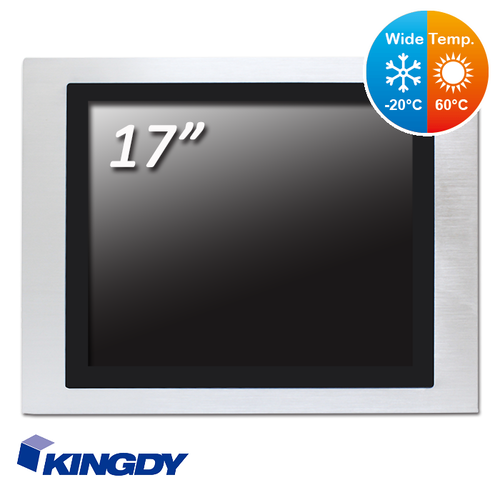

17" Touch Monitor (WT)
