SYSTEM

CPU

Intel® IOTG Alder Lake-N Core i3-N305, OC, 9W up to 15W

Memory

Single Channel for DDR5 4800MT/s Up to 16GB

Storage

1 x SATA 3.0

OS Support

Windows 10 IoT Enterprise LTSC (64-bit, 21H2)

Windows 11 IoT Enterprise LTSC (64-bit, 24H2)

Linux (Support by request)

TPM

Infineon SLB9672VU2.0

I/O Ports

⁕ The I/O interface shown may vary depending on the selected motherboard.

RS232/422/485

1

RS232

1

HDMI

1

DP

1

GLAN

2

USB 3.2 Gen1

2

USB 3.2 Gen2

2

AUDIO

1

Expansion Slot

M.2

1 x M.2 B key (SATA/PCIe x1), 2242/3042/2280

1 x M.2 E key (PCIe x1, USB 2.0), 2230

MECHANICAL & ENVIRONMENTAL

Operation Temp.

0 ~ 45°C

Storage Humidity

10 ~ 90%, non-condensing

Form Factor

Mounting

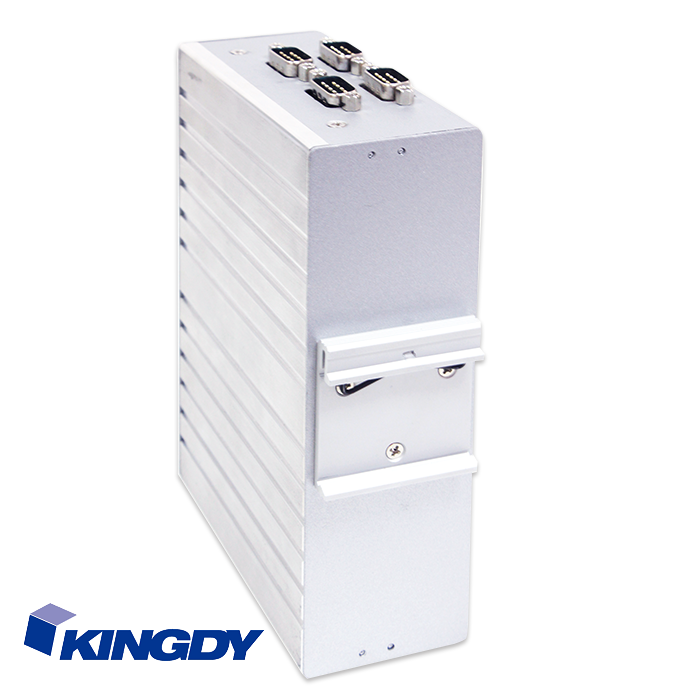

Wall Mount / DIN Rail installation

Power Supply

2 Pin Power Terminal Block for DC-in 9~36V
