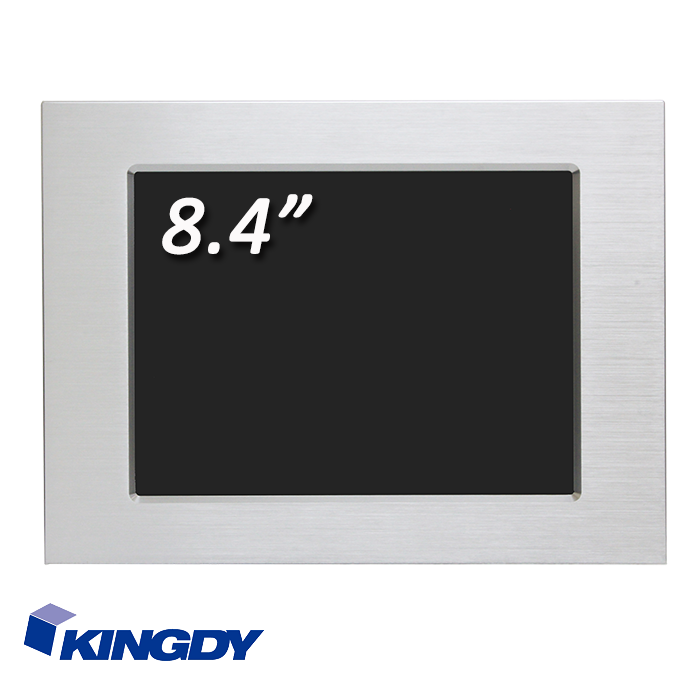

8.4" 5W Touch Display-Front IP65

● Fanless design and compact solution
● IP65 compliant thickness aluminum front bezel
● Resolution 800 x 600 dpi
● 5 wires resistive touch solution
● Silver anodic aluminum front bezel
● Rich I/O Ports for choice
● Panel mount & VESA mounting & Clips
Model : SM084RS/W

I/O ports
SM084RS/W03 SM084RS/W04 SM084RS/W05 SM084RS/W06
VGA VGA VGA DP
DVI HDMI HDMI DVI
/ DP DVI /
USB or RS232 USB or RS232 USB or RS232 USB or RS232
Power
DC IN 12 V
Touch Screen OS support
5 wire resistive Win 7.8.10; Win Embedded 7,8,10, Win pro 7,8,10
Display
Size 8.4" TFT (4:3)
Resolution 800 x 600
Colors 16.2 M
Luminance ( cd/m2) 400
Contrast Ratio 600:1
View Angle ( H / V ) 160/120
Mechanical &Environmental
Operation Temperature 0 ~ 45°C for SM-084RS ; -20~55C for SM-084RW
Storage Temperature -10°C ~ 70°C
Storage Humidity 10 ~ 90%, non-condensing
Mount Clip mount, Panel mount & VESA mounting(75X75mm)

Dimension (W x H x D mm)&Weight

265.9 x 207 x 71 (3.5kg)

Optional
Clip 8
Rack Mount Bezel 1
Magnetic Bezel 1
Optical Bonding 1 or 2
No Touch Screen 1
AR Glass 1
Optinal High Brightness Panel
Resolution 800 x 600
Color 16.2 M
Luminance(cd/m2) 1600
Contrast Ratio 600:1
Viewing Angle (H/V°) 160/140

**Specifications are subject to change without notice.
