Q1: Is the panel PC
fanless?
A1: Yes, all models adopt a fanless design, ensuring silent operation and
higher durability in industrial environments.
Q2: What kind of touch screen technology is used?
A2: The series features a 5-wire resistive touch solution, offering stable and
reliable operation.
Q3: Are the panel PCs waterproof?
A3: Yes, the front bezel is made of silver aluminum with IP65 protection
against dust and water.
Q4: What I/O ports are available?
A4: Each unit includes 2 x USB, 2 x RS232, 2 x GLAN, 1 x HDMI, 1 x VGA, and 1 x
DP for versatile connectivity.
Q5: What mounting options are supported?
A5: VESA mount, Panel mount, and Clip mount are available for flexible
installation.
Q6: What power input range do these models support?
A6: They support wide-range DC input from 9V to 36V, suitable for various
industrial applications.
Q7: Which operating systems are supported?
A7: The panel PCs support Windows, Linux, and other mainstream OS for versatile
deployment.
Q8: Which industries can benefit from these panel PCs?
A8: They are ideal for factory automation, control rooms, transportation,
kiosks, and rugged industrial applications.
|

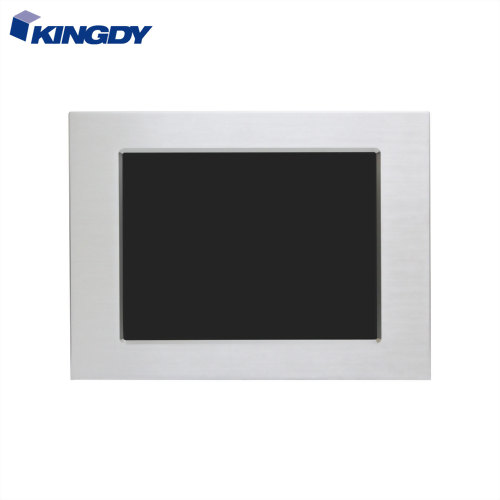

Display for 3:4 Ratio |
|
||||||
|
Size |
12.1" TFT |
|
|||||
|
Resolution |
1024 x 768 |
|
|||||
|
Colors |
16.7M |
|
|||||
|
Luminance |
350 cd/m2 |
|
|||||
|
Contrast Ratio |
800:1 |
|
|||||
|
View Angle (H/V) |
160°/160° |
|
|||||
|
Model NO. |
SP121R113S |
|
|||||
|
SYSTEM |
|
||||||
|
CPU |
12th Gen Intel® Alder Lake-N N97 |
|
|||||
|
Memory |
1 x 260-pin SO-DIMM DDR4 3200 MHz, up to 32GB |
|
|||||
|
Storage |
1 x SATA 3.0 / 1 x M.2 (Key M, 2242/2260/2280) with PCIe x1 or SATA3 for SSD |
|
|||||
|
OS Support |
Windows 10 Pro / Windows 10 IoT Windows 11 Pro / Windows 11 IoT |
|
|||||
|
TPM |
TPM 2.0 onboard IC |
|
|||||
|
I/O Ports |
⁕ The I/O interface shown may vary depending on the selected motherboard. |
|
|||||
|
RS232/422/485 |
2 |
DP |
1 |
|
|||
|
VGA |
1 |
USB 3.2 Gen2 |
2 |
|
|||
|
HDMI |
1 |
GLAN |
2 |
|
|||
|
Expansion Slot |
|
||||||
|
M.2 |
|
||||||
|
1 x M.2 ( Key E, 2230 ) with PCIe x1, USB 2.0 and CNVi for WiFi optional 1 x M.2 ( Key B, 3042/3052 ) with PCIe x1 / USB 3.2 / USB 2.0 and SIM for 4G / 5G |
|
||||||
|
MECHANICAL & ENVIRONMENTAL |
|
||||||
|
Operation Temp. |
0 ~ 45°C |
|
|||||
|
Storage Humidity |
10 ~ 90%, non-condensing |
|
|||||
|
Form Factor |
|
||||||
|
Touch Screen |
5 Wires Resistive ( Single touch ) |
|
|||||
|
Mounting |
VESA mount (100x100mm) & Panel mount & Clip mount |
|
|||||
|
Power Supply |
3 Pin power terminal block for DC in 9V~36V |
|
|||||
