Model No.

QB030SD

QB030SW

System

CPU

Intel® Bay Trail D-J1900 2.0GHz Quad Core Processor

Memory

1 x 204-pin DDR3L SODIMM up to 8 GB

H/W Monitor

H/W Monitor

Watch Dog Timer 256 Level

I/O Ports

USB

3 x USB 2.0  1 x USB 3.0

RS485

4 x ( DB-9 2.5kV isolation)

GLAN

2

HDMI

1

VGA

1

Storage

Storage

1 x SATA 2.0 2.5” HDD/SSD

Expansion

Mini PCI-E

1 x Full size with mSATA

Power Requirement

Power Requirement

2 Pin power terminal block for DC in 12V / 19V / 24V

OS support

OS support

Win Pro 7,8, 10  /  Embedded Win 7, 8, 10  /  Win 10 IoT  /  Linux Fedora 20, Ubuntu 13.10

Mechanical & Environmental

Operation Temp.

0 ~ 50°C

Storage Humidity

10 ~ 90%, non-condensing

Mounting

Din Rail

Wall mount

Construction

Aluminum + Steel

Dimension (WxHxD)

167 x 112 x 50 mm

Weight

0.85 kg

Optional

P/N: 3080213001

Line out & MIC in for QB030SW

P/N: 308020000C

USB cable

**Specifications are subject to change without notice.

Ordering Information

Standard

QB030SD04128

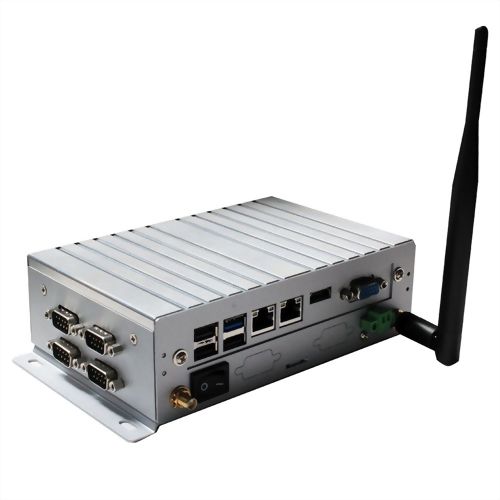

Fanless Din Rail Box PC, Intel J1900, 4GB DDR III L So-DIMM, TLC mSATA 128GB SSD, 1 x DC in external power adapter

QB030SW04128

Fanless Wall Mount Box PC, Intel J1900, 4GB DDR III L So-DIMM, TLC mSATA 128GB SSD, 1 x DC in external power adapter
