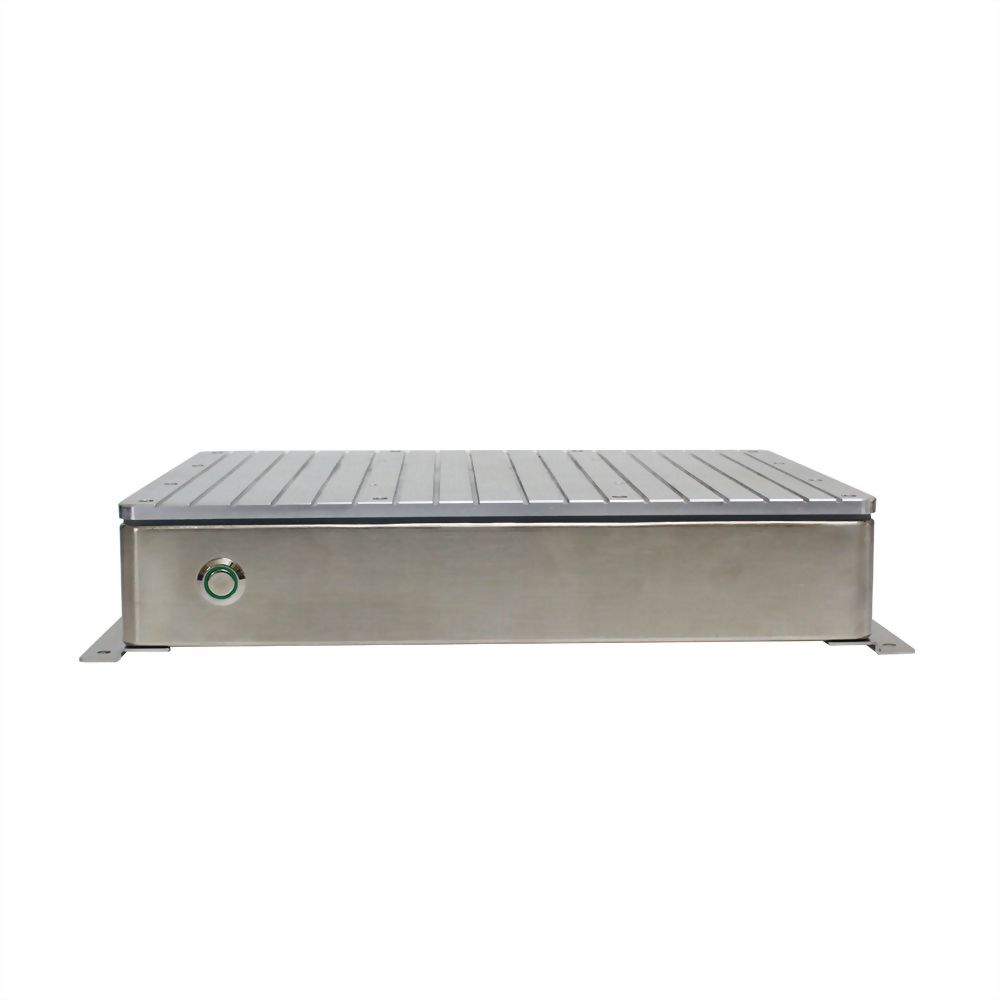

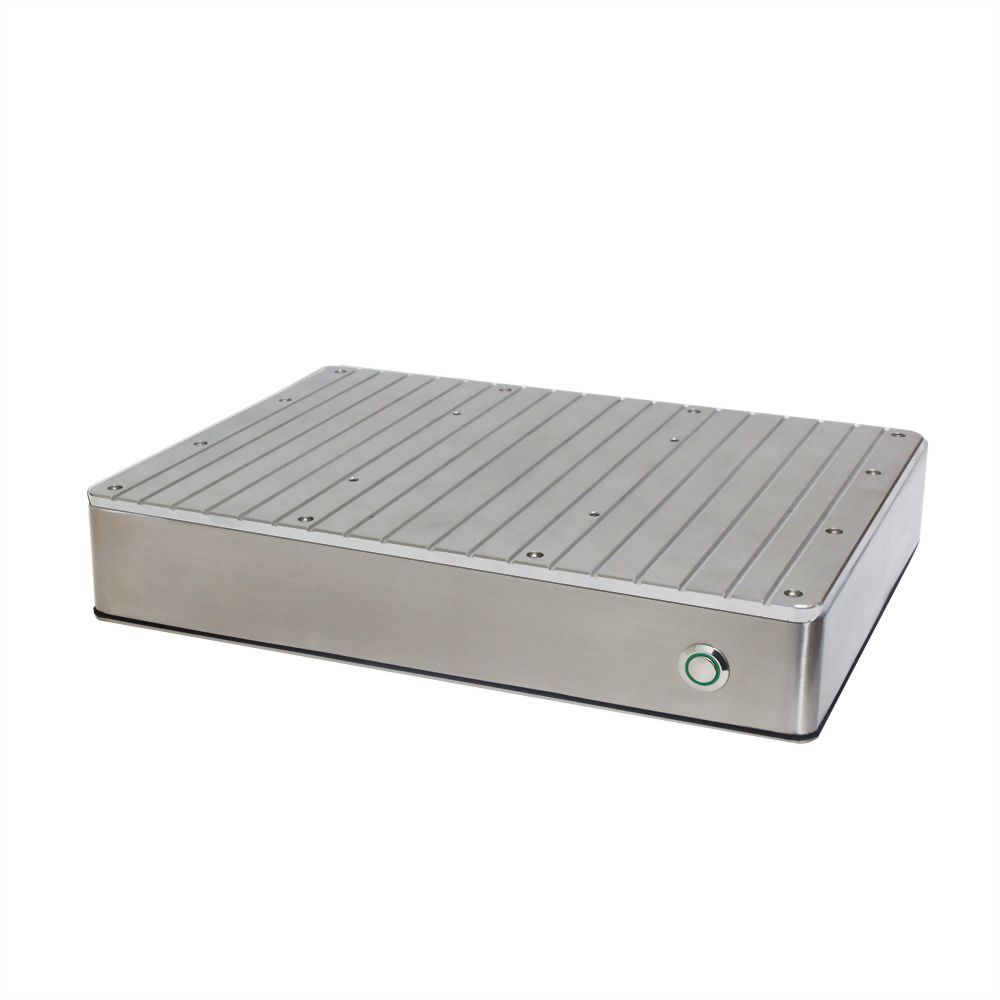

Intel 7th Gen Full IP65 Box PC

● Fanless and rugged housing
● 7th Gen Intel® Core™ i3 7100U / i5 7300U / i7 7600U processor
● Full IP65 304 stainless steel enclosure

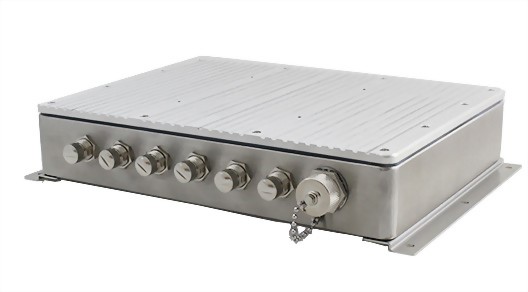

● All M12 waterproof connectors with cables
● 1 x LAN, 2 x RS232, 2 x USB, 1 x HDMI
● 2 x Mini PCI-E slot
● Wall mount
● IIoT gateway
Model : FB075/076/077SW



Specifications

Model No.

FB075/076/077SW

System

CPU

7th Gen Intel® Core™ i3 7100U (075) / i5 7300U (076) / i7 7600U (077) processors

Memory

1 x 260-pin DDR4 2133MHz SODIMM up to 16 GB

H/W Monitor

H/W Monitor

Watch Dog Timer 256 Level

I/O Ports

USB 2.0

2

RS232

2

GLAN

1

HDMI

1

Storage

Storage

2 x SATA 3.0  2.5” HDD/SSD

Expansion

Mini PCI-E

2

Power Requirement

Power Requirement

DC in 12 ~ 24V

OS support

OS support

Window 10 Pro / Window 10 IoT / Ubuntu 16.04 / Fedora 25

Mechanical & Environmental

Construction

Full stainless steel enclosure with external heatsink

Operation Temp.

0 ~ 50°C

Operation Humidity

10 ~ 90%, non-condensing

Mounting

Wall mount

Dimension (WxHxD)

286 x 210 x 58 mm

Weight

TBD

Optional

P/N: 2351206003

Full IP65 Waterproof Power adaptor with European power cord
( 60W /
90 ~ 295V AC input / 12V DC output)

P/N: 2351206004

Full IP65 Waterproof Power adaptor with US power cord
( 60W /
90 ~ 295V AC input / 12V DC output)

P/N: 2340000003

1 x Full IP65 LAN port

P/N: 2390000003

external antenna (WIFI)

P/N: 3121700001

4GB LTE module with SIM socket

**Specifications are subject to change without notice.

Ordering Information

FB075SW04064

Fanless full IP65 stainless steel box PC, Intel I3 7100U, 4GB DDR4 So-DIMM. TLC mSATA64GB SSD, DC in external power adapter

FB076SW04064

Fanless full IP65 stainless steel box PC, Intel I5 7300U, 4GB DDR4 So-DIMM. TLC mSATA64GB SSD, DC in external power adapter

FB077SW04064

Fanless full IP65 stainless steel box PC, Intel I7 7600U, 4GB DDR4 So-DIMM. TLC 64GB SSD. DC in external power adapter
