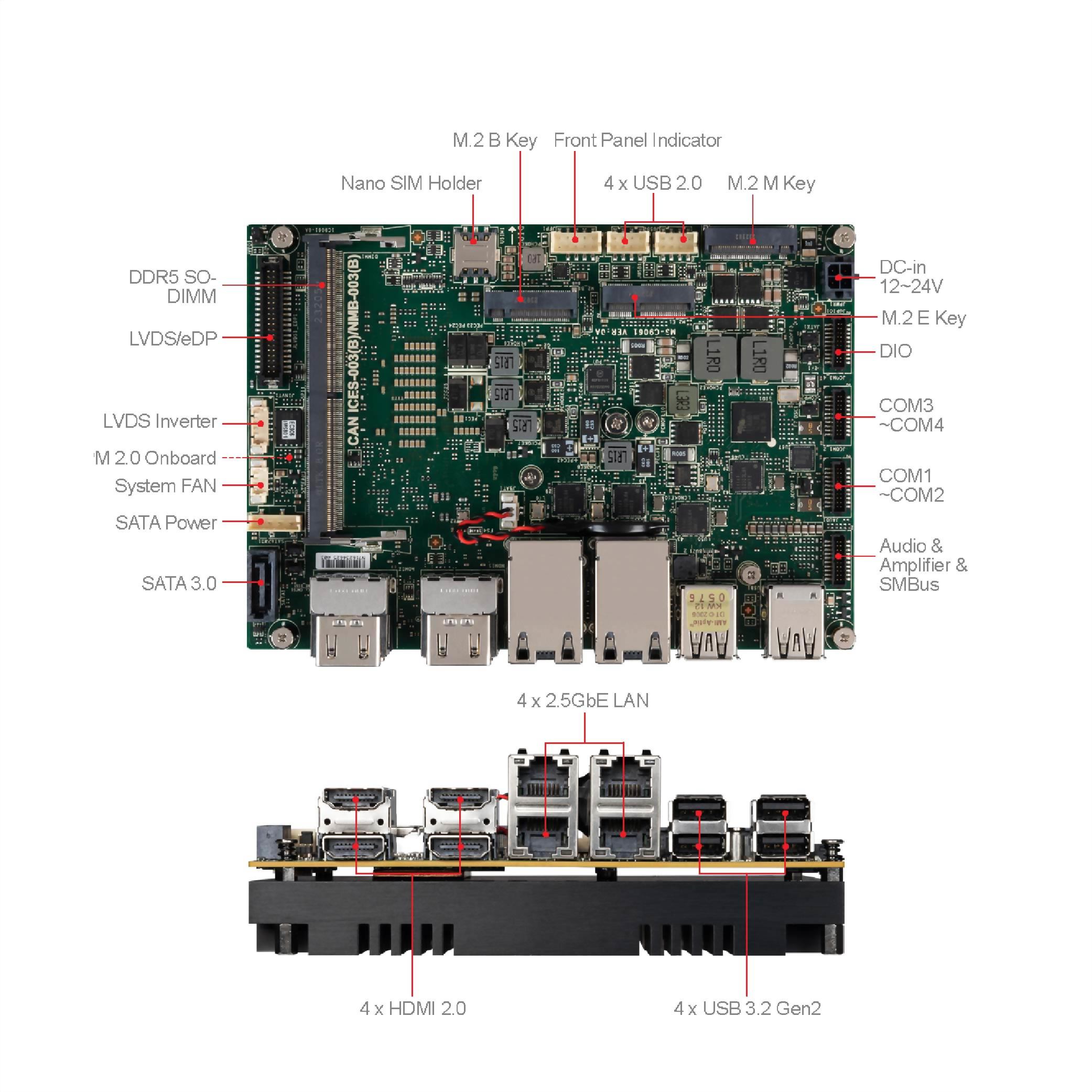

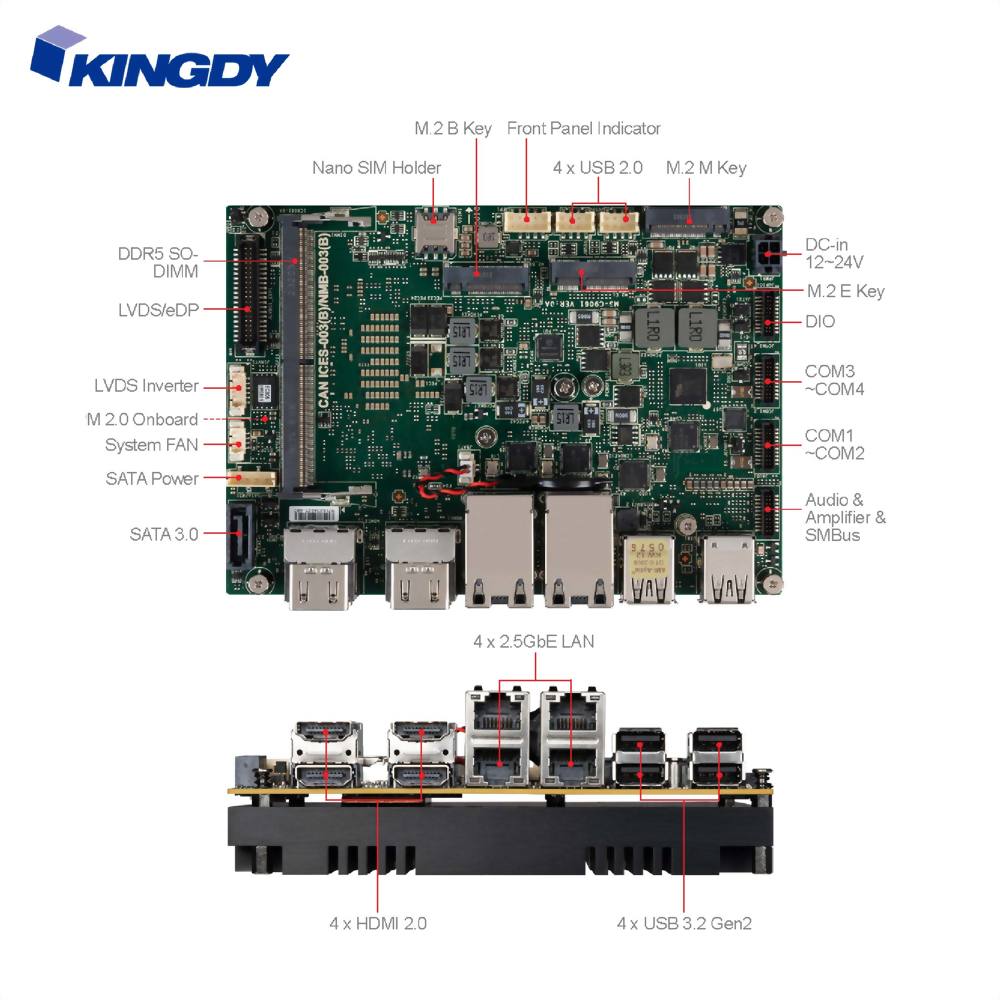

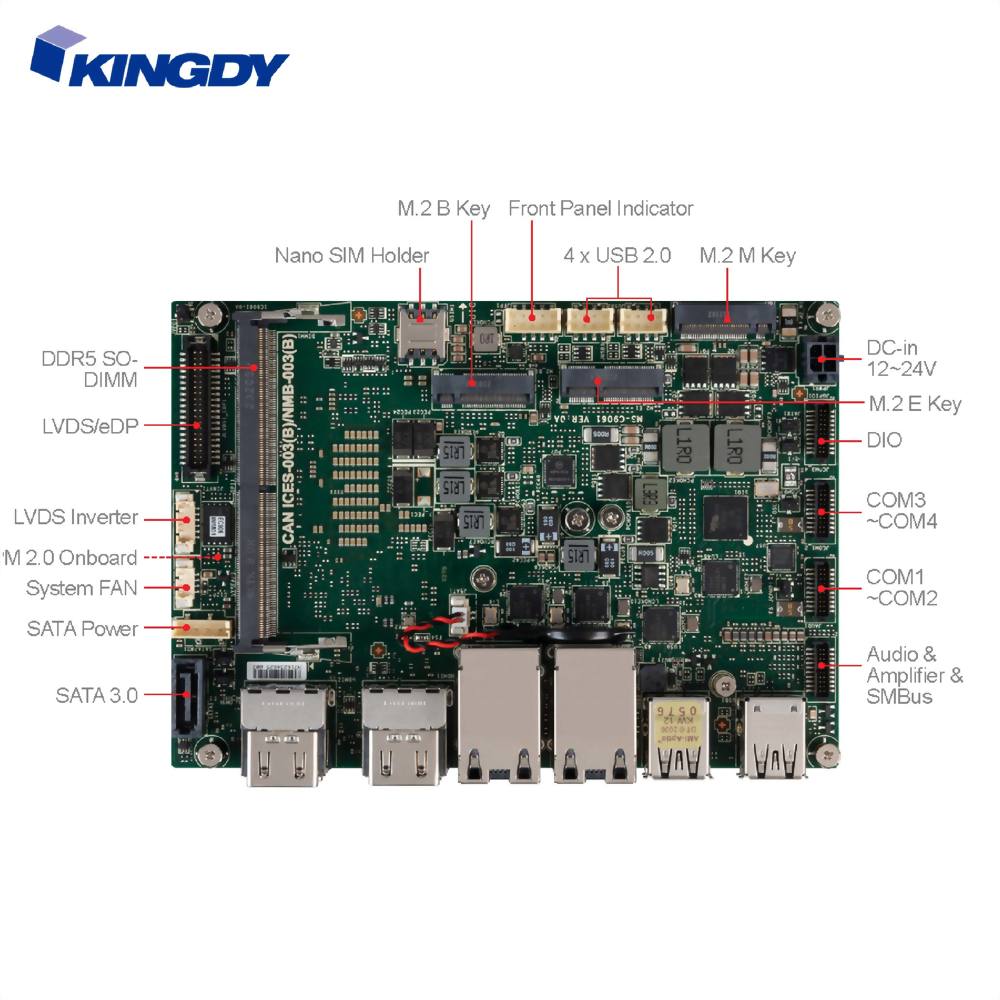

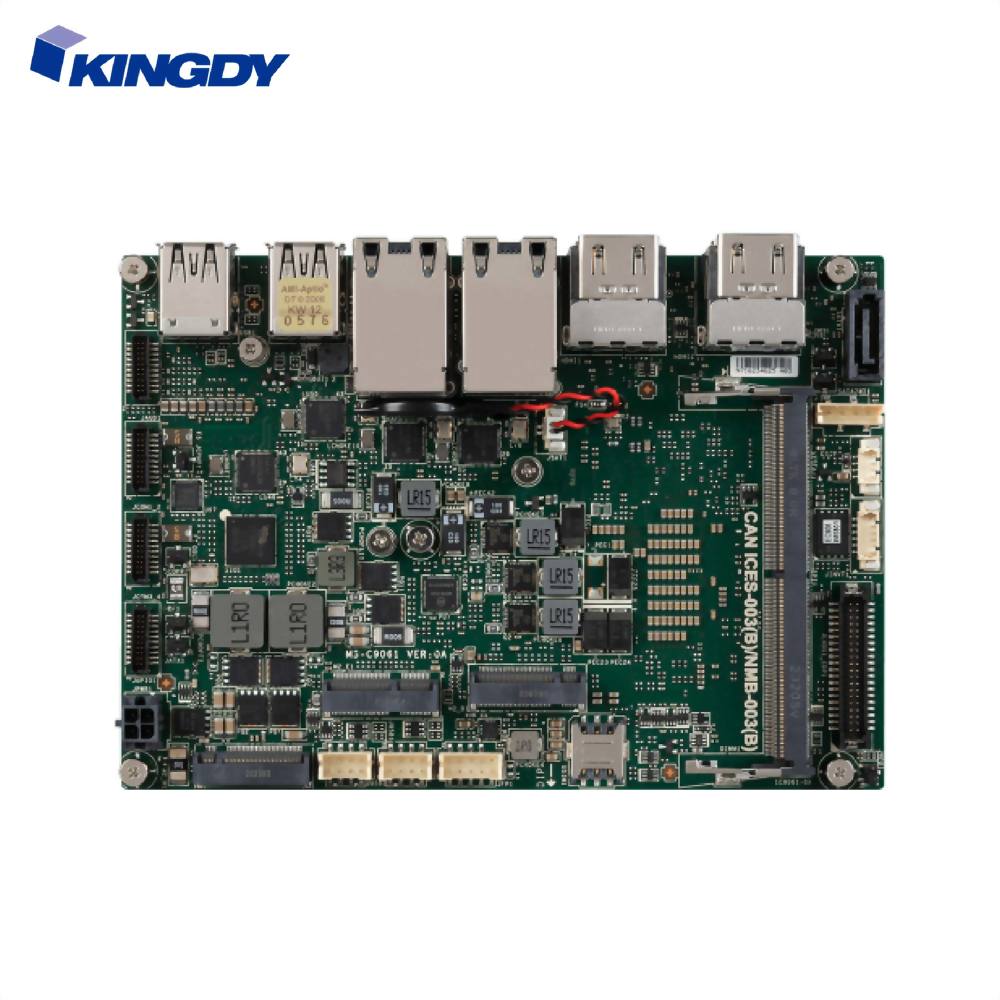

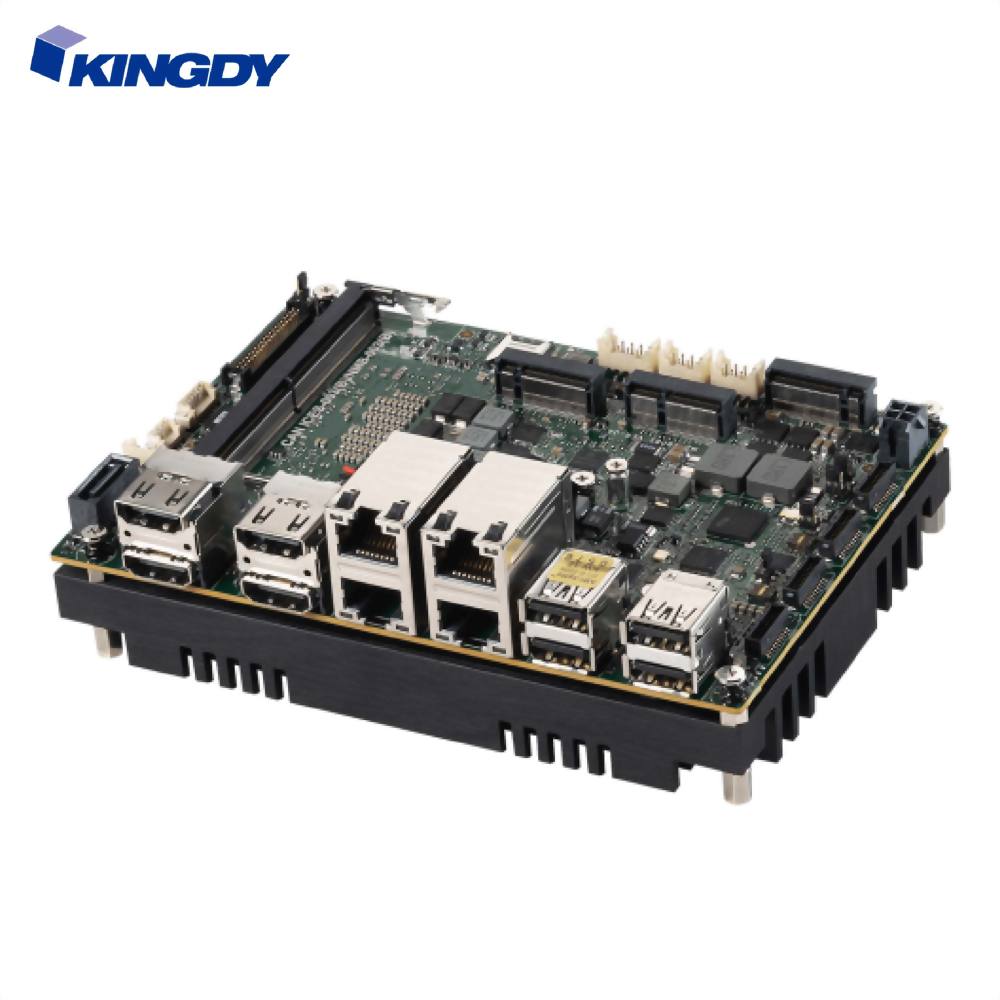

SYSTEM

CPU

Intel® Mobile 13th Gen Raptor Lake-P U Series Processors,
  Core™ i7-1365URE / i5-1345URE / i3-1315URE , 28W

Frequency

P-Core: 4.3 GHz~4.9 GHz (Depends on CPU)

E-Core: 3.2 GHz~3.7 GHz (Depends on CPU)

Storage

1 x SATA 3.0

Memory

Max. Capacity

Up to 32 GB

Socket

1 x 262-pin SO-DIMM

Display

HDMI

4

DisplayPort

--

Audio

Realtek® ALC897 HD Audio Codec (Co-lay ALC888S)

H/W Monitor

256-level Watchdog Timer

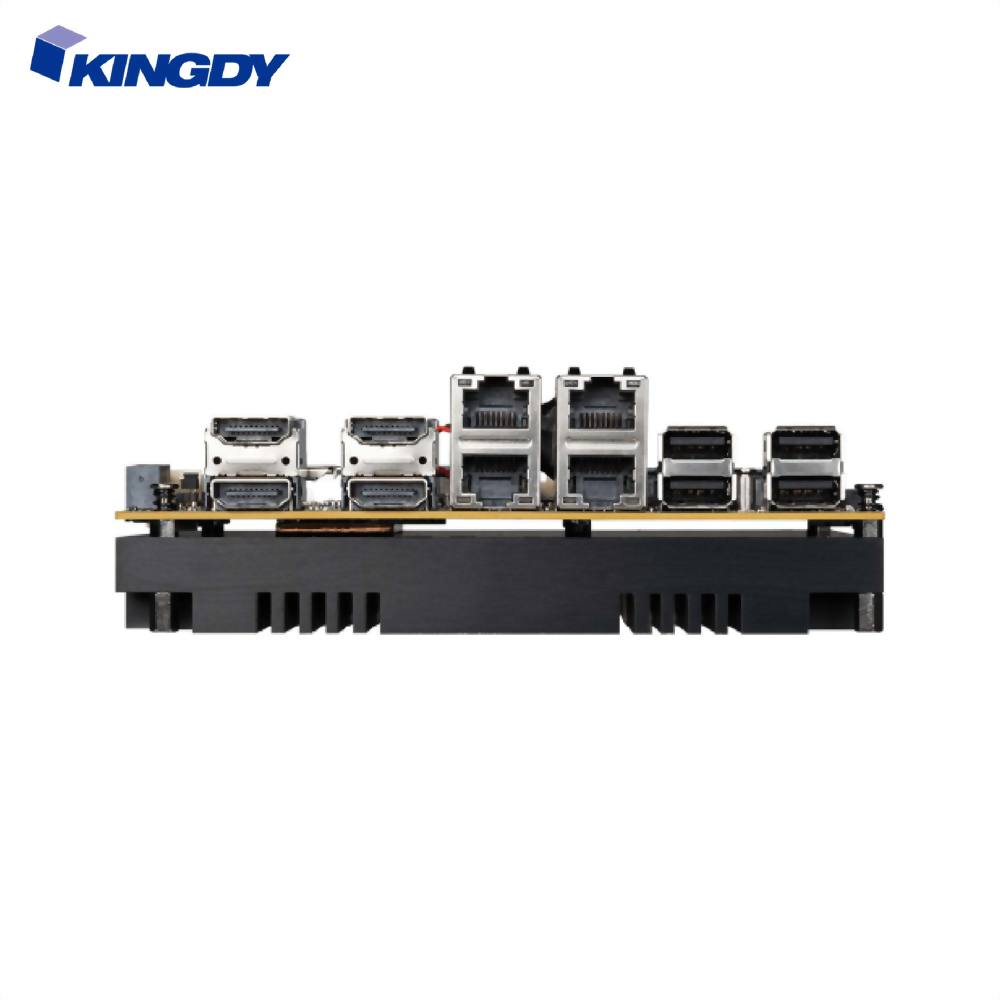

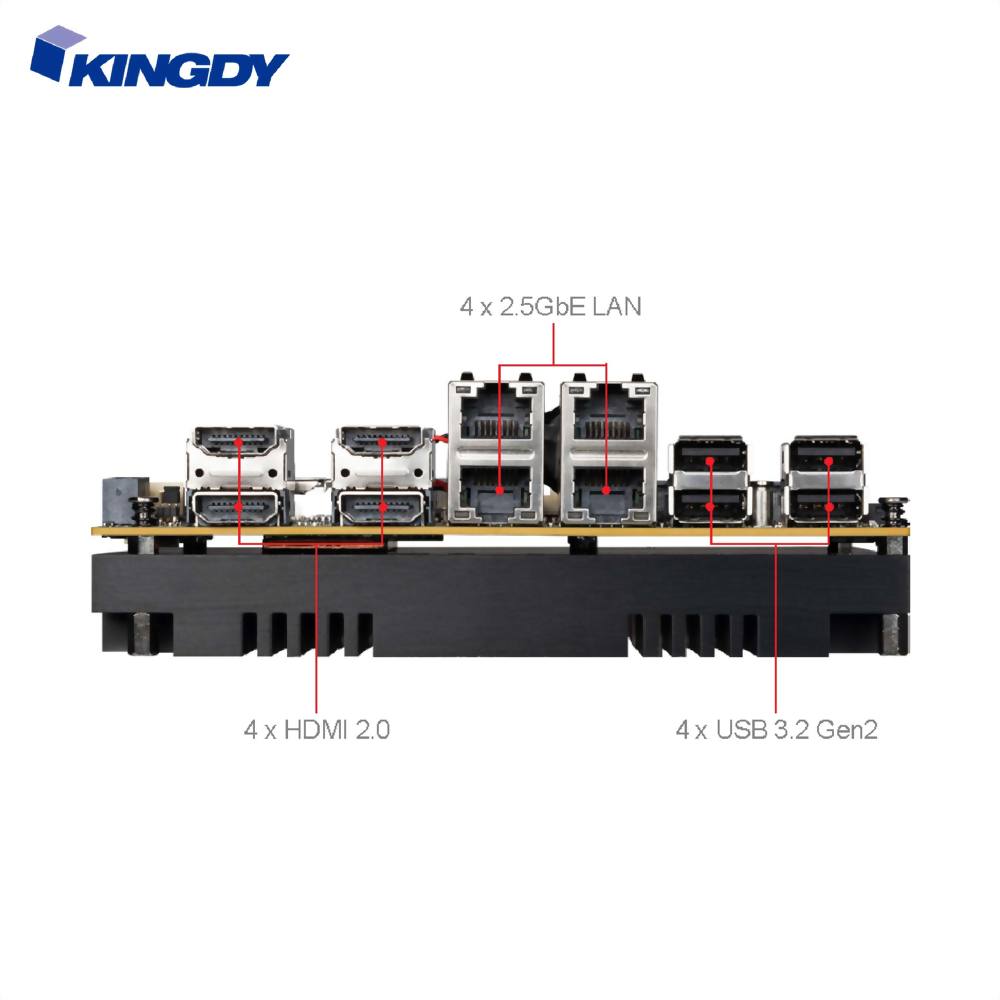

I/O Interface

USB

4 x USB 2.0 (internal)

4 x USB 3.2 Gen 2 (rear)

Serial

4 x COM ports (internal)

COM1~4: RS-232/422/485, 0V/5V/12V, support auto flow control

GPIO

16-bits (8 x GPI; 8 x GPO), 5V

Expansion Slot

M.2

1 x M.2 M key (PCIe Gen4 x4 NVMe), 2280

1 x M.2 B key (PCIe x1, USB 2.0, w/NANO SIM-Holder), 2242/3042

1 x M.2 E key (PCIe x1, USB 2.0, w/CNVi), 2230

MECHANICAL & ENVIRONMENTAL

Operation Temp.

-20 ~ 60°C

Storage Humidity

10 ~ 90%, non-condensing

Form Factor

Dimensions

146 x 102 mm (3.5")

Weight

0.67 kg

OS Support

Windows 10 IoT Enterprise 2021 LTSC (64-bit, 21H2)

Windows 11 IoT Enterprise (64-bit, 23H2, Pre-scan)

Linux (Support by request)

Power Supply

DC-in 12~24V (OCP & OVP)
