Q1: What makes the CF17
Wide Temp version different from the standard model?
A1: The wide-temp version supports -20°C to 70°C, ensuring stable operation in
extreme environments like outdoor kiosks and factory floors.
Q2: Which processors are supported?
A2: The CF17 supports Intel® 13th Gen Core™ i7, i5, and
i3, offering flexible performance levels.
Q3: Is the CF17 suitable for outdoor environments?
A3: Yes. With wide temperature tolerance, rugged fanless design, and IP65 front
bezel, it is ideal for outdoor and industrial use.
Q4: Does it support DDR5 memory?
A4: Yes, it supports DDR5 memory for high-speed, reliable computing.
Q5: What industries benefit most from CF17 Wide Temp?
A5: It is widely applied in transportation, smart city solutions, outdoor
kiosks, AIoT, and automation systems in harsh conditions.
|

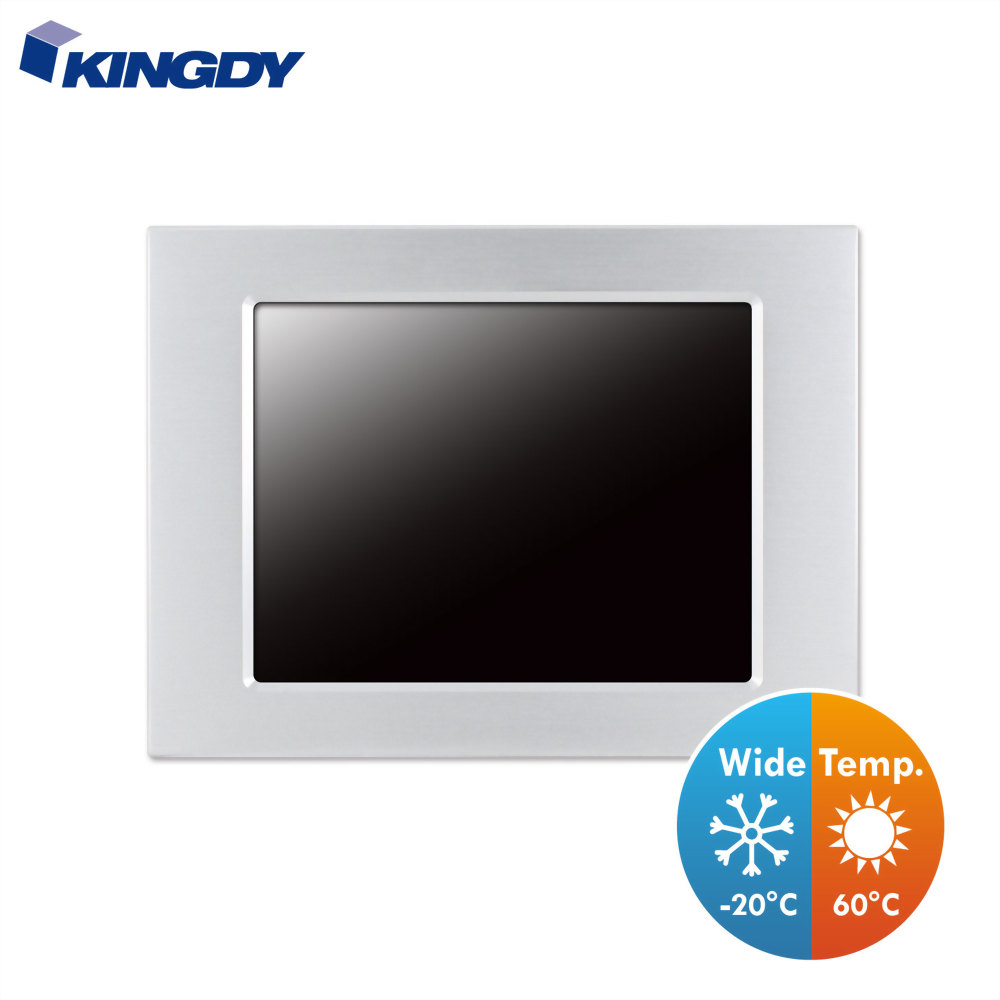

Display for 3:4 Ratio |
|
||||||
|
Size |
12.1" TFT |
|
|||||
|
Resolution |
1024 x 768 |
|
|||||
|
Colors |
16.7M |
|
|||||
|
Luminance |
350 cd/m2 |
|
|||||
|
Contrast Ratio |
800:1 |
|
|||||
|
View Angle (H/V) |
160°/160° |
|
|||||
|
Model NO. |
SP121R124W SP121R125W SP121R126W |
|
|||||
|
SYSTEM |
|
||||||
|
CPU |
Intel® Mobile 13th Core™ i7-1365URE(124)/ i5-1345URE(125)/ i3-1315URE(126) , 28W |
|
|||||
|
Memory |
Single-channel DDR5 5200 MHz Up to 32 GB |
|
|||||
|
Storage |
1 x SATA 3.0 |
|
|||||
|
OS Support |
Windows 10 IoT Enterprise 2021 LTSC (64-bit, 21H2) Windows 11 IoT Enterprise (64-bit, 23H2, Pre-scan) Linux (Support by request) |
|
|||||
|
I/O Ports |
⁕ The I/O interface shown may vary depending on the selected motherboard. |
|
|||||
|
RS232 |
2 |
GLAN |
4 |
|
|||
|
HDMI |
4 |
USB 3.2 Gen 2 |
4 |
|
|||
|
Expansion Slot |
|
||||||
|
M.2 |
|
||||||
|
1 x M.2 M key (PCIe Gen4 x4 NVMe), 2280 1 x M.2 B key (PCIe x1, USB 2.0, w/NANO SIM-Holder), 2242/3042 1 x M.2 E key (PCIe x1, USB 2.0, w/CNVi), 2230 |
|
||||||
|
MECHANICAL & ENVIRONMENTAL |
|
||||||
|
Operation Temp. |
-20 ~ 60°C |
|
|||||
|
Storage Humidity |
10 ~ 90%, non-condensing |
|
|||||
|
Form Factor |
|
||||||
|
Touch Screen |
5 Wires Resistive ( Single touch ) |
|
|||||
|
Mounting |
VESA mount ( 75 X 75 mm) / ( 100 X 100 mm) & Panel mount & Clip mount |
|
|||||
|
Power Supply |
3 Pin Power Terminal Block for DC-in 12~24V |
|
|||||
