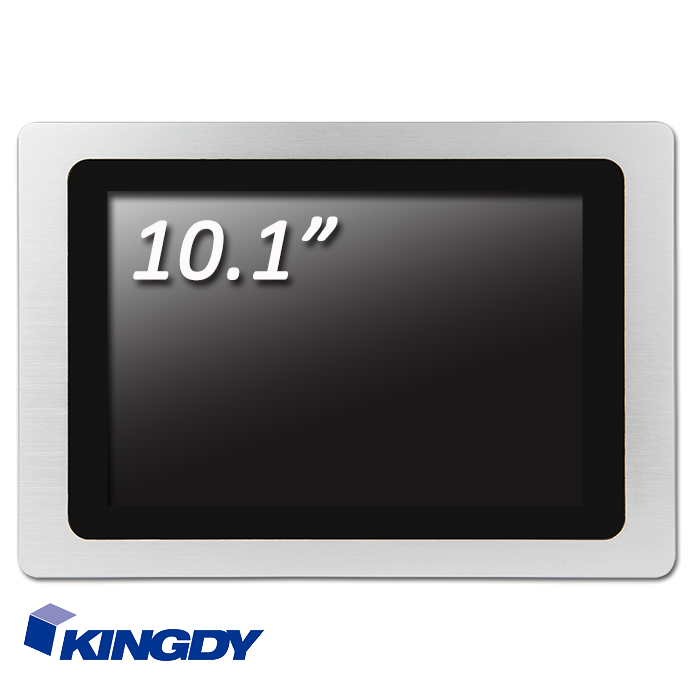

10.1" True Flat Touch Display - PCAP

● Fanless design and compact solution
● IP65 compliant thickness aluminum front bezel
● Resolution 1280 x 800 dpi
● PCAP touch solution
● True Flat Silver anodic aluminum front bezel
● Rich I/O Ports for choice
● Panel mount & VESA mounting & Clips
Model : TM101PS/W

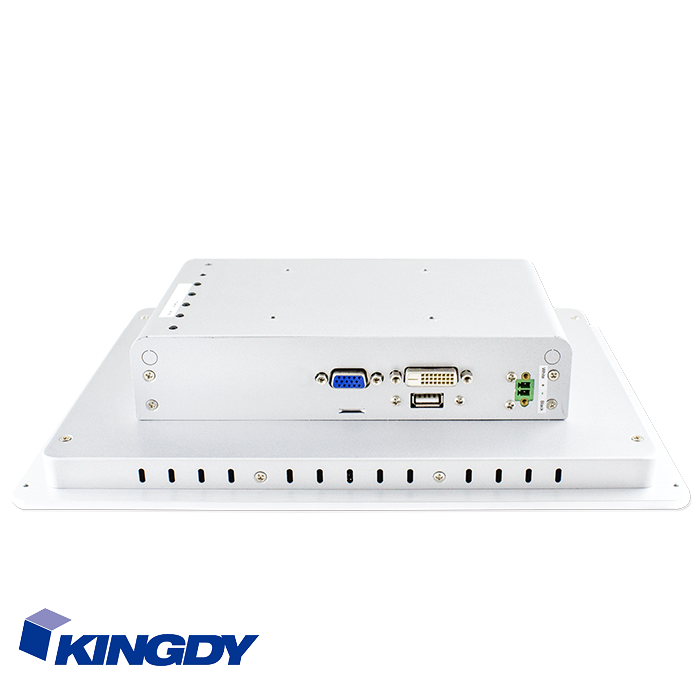

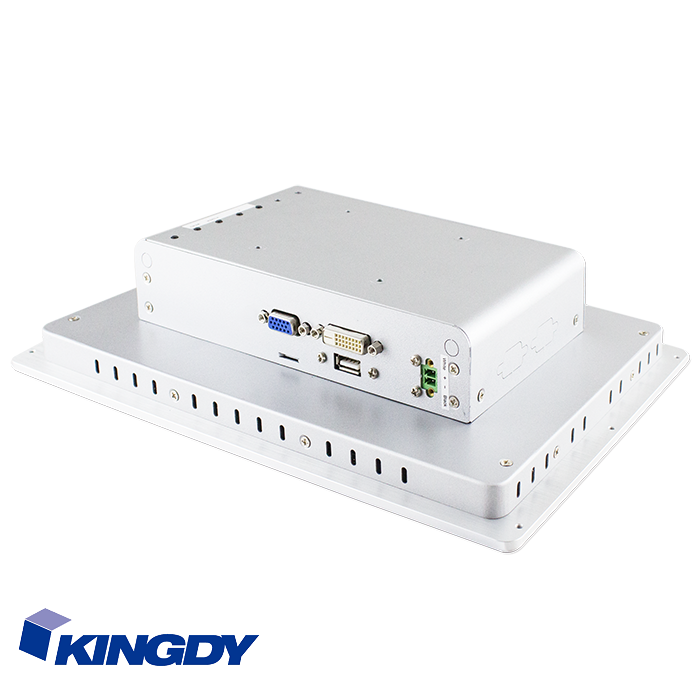

I/O ports
TM101PS/W03 TM101PS/W04 TM101PS/W05 TM101PS/W06
VGA VGA VGA DP
DVI HDMI HDMI DVI
/ DP DVI /
USB or RS232 USB or RS232 USB or RS232 USB or RS232
Power
DC IN 12 V
Touch Screen OS support
PCAP Win 7.8.10; Win Embedded 7,8,10, Win pro 7,8,10
Display
Size 10.1" TFT (16:9)
Resolution 1280 x 800
Colors 262K
Luminance ( cd/m2) 300
Contrast Ratio 1300:1
View Angle ( H / V ) 160/160
Mechanical &Environmental
Operation Temperature 0 ~ 45°C  for  TM101PS ; -20 ~ 55°C for TM-101PW
Storage Temperature -10°C ~ 70°C
Storage Humidity 10 ~ 90%, non-condensing

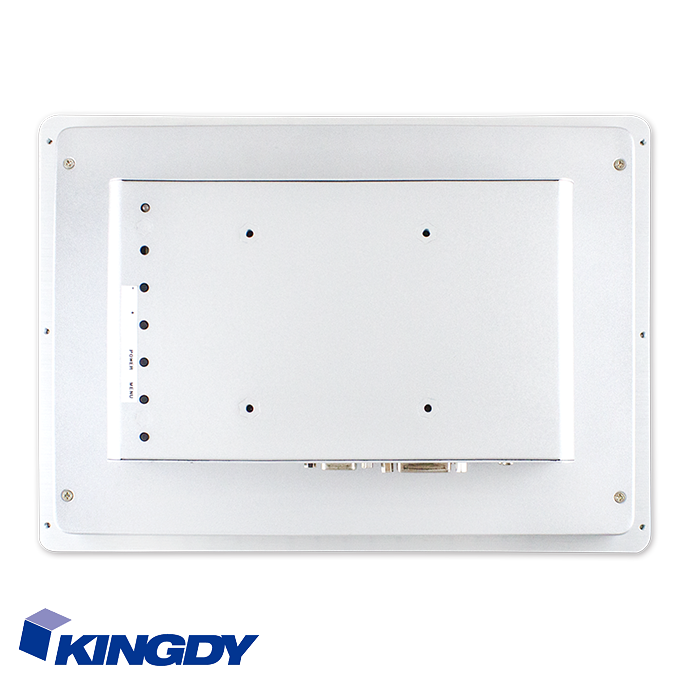

Mount Clip mount, Panel mount & VESA mounting(75 X 75 mm)

Dimension (W x H x D mm)&Weight

297 x 215 x57.5(4kg)

Optional
Clip 8
Rack Mount Bezel 1
Magnetic Bezel 1
Optical Bonding 1
No Touch Screen 1
AR Glass 1
Optinal High Brightness Panel
Resolution 1280x800
Color 16.7M
Luminance(cd/m2) 1000
Contrast Ratio 900 : 1
Viewing Angle (H/V°) 160/160

** Specifications are subject to change without notice.

● Fanless design and compact solution

● IP65 compliant thickness aluminum front bezel

● Resolution 1280 x 800 dpi

● PCAP touch solution

● True Flat Silver anodic aluminum front bezel

● Rich I/O Ports for choice

● Panel mount & VESA mounting & Clips

Related Products

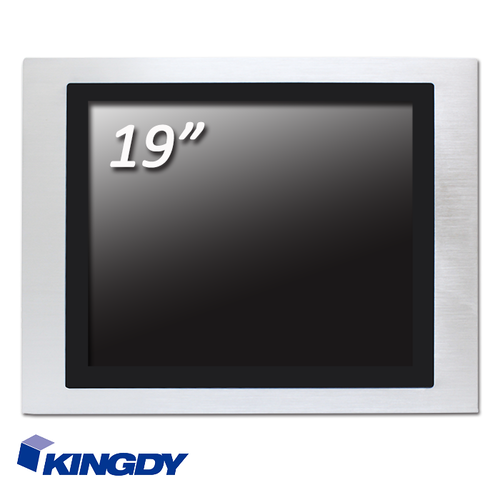

19 " True Flat Touch Monitor-Front IP65 PCAP / 5W

19 " True Flat Touch Monitor-Front IP65 PCAP / 5W

15"  True Flat Touch Monitor- Front IP65  PCAP / 5W

15" True Flat Touch Monitor- Front IP65 PCAP / 5W

15.6" True Flat Touch Monitor-Front IP65 PCAP/5W

15.6" True Flat Touch Monitor-Front IP65 PCAP/5W

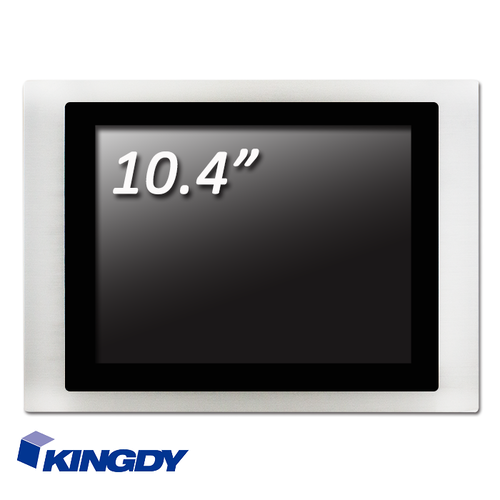

10.4 " True Flat Touch Monitor-Front IP65 PCAP 5W
