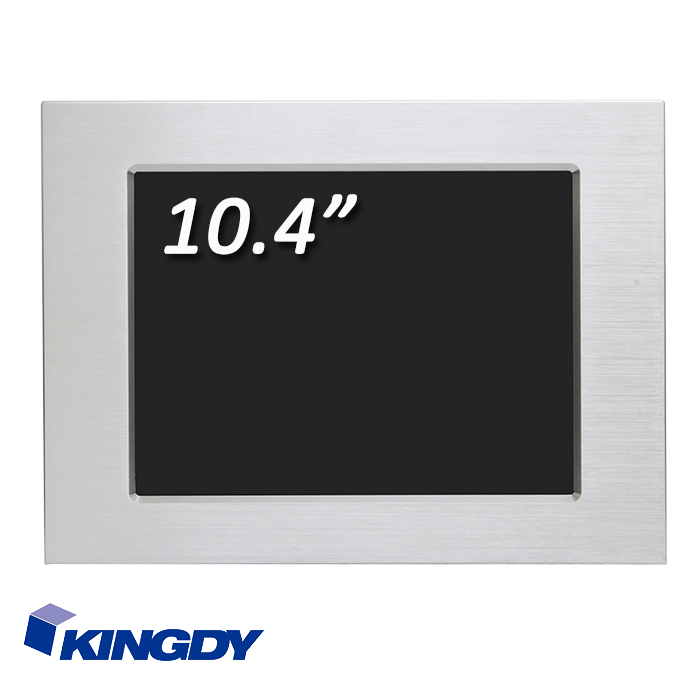

10.4" Touch Monitor

● Fanless and rugged design
● 5 Wires Resistive touch solution
● IP65 Silver aluminum front bezel
● 304 316 stainless steel front bezel
● Resolution 1024 x 768 dpi
● VESA mount & Panel mount & Clip mount
● RS232 for remote control function optional
● Optical bonding, high brightness sunlight readable solution
Model : SM105RS03, SM105RS04

Model No.

SM105RS03

SM105RS04

Display

Size

10.4" TFT (4:3)

Resolution

1024 x 768

Colors

16.7M

Luminance

350 cd/m2

Contrast Ratio

900 : 1

View Angle (H/V)

150°/150°

High Brightness (Optional)

Resolution

1024 x 768

Colors

16.7M

Luminance

1000 cd/m2

Contrast Ratio

900 : 1

Viewing Angle (H/V)

150°/150°

I/O Ports

VGA

V

V

DVI

V

HDMI

V

DP

V

USB (for touch screen)

V

V

Power Requirement

Power Requirement

DC in 12V ( 60W )

Touch Screen

Touch Screen

5 Wires Resistive (one touch)

OS support

OS support

Win Pro 7.8.1, 10 / embedded Win 7, 8, 10

Mechanical & Environmental

Operation Temp.

0 ~ 45°C

Storage Humidity

10 ~ 90%, non-condensing

Mounting

VESA mount ( 75 x 75 mm) & Panel mount & Clip mount

Dimension (WxHxD)

302 x 224 x 71 mm

Weight

TBD

Optional

P/N: 302A17005A

1600 cd/m2  10.4” LCD panel 1024 x 768

P/N: 2320000001

Optical Bonding

P/N: 3080108001

HMDI 2m cable

P/N: 3080109001

DP 2m cable

P/N: 239SP17002

8pcs x Clips

P/N: 3120600002

RS232 touch screen for 10.4” and 12.1” monitor

P/N: 3011100020

Waterproof sponge

Ordering Information

Standard

SM105RS03

10.4” display, 5W resistive, 1 x VGA, 1 x DVI, 1 x USB, 1 x 1.8m VGA cable, 1 x 1.8m USB cable,
DC in power adapter

SM105RS04

10.4” display, 5W resistive, 1 x VGA, 1 x DP, 1 x HDMI, 1 x USB, 1 x 1.8m VGA cable, 1 x 1.8m USB cable,
DC in power adapter

High Brightness

SM105RJ03

10.4” display, 5W resistive, 1 x VGA, 1 x DVI, 1 x USB, 1 x 1.8m VGA cable, 1 x 1.8m USB cable,
DC in power adapter, 1000 cd/m2

SM105RJ04

10.4” display, 5W resistive, 1 x VGA, 1 x DP, 1 x HDMI, 1 x USB, 1 x 1.8m VGA cable, 1 x 1.8m USB cable,
DC in power adapter, 1000 cd/m2

**Specifications are subject to change without notice.





Related Products

15" Touch Monitor

15" Touch Monitor

17" Touch Monitor

17" Touch Monitor

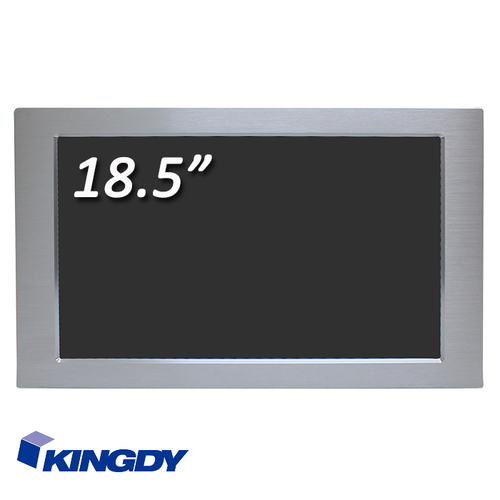

18.5" Touch Monitor
