Display for 3:4 Ratio

Size

10.1" TFT

12.1" TFT

15" TFT

17" TFT

19" TFT

Resolution

1280 x 800

1024 x 768

1024 x 768

1280 x 1024

1280 x 1024

Colors

16.7M

16.7M

16.7M

16.7M

16.7M

Luminance

500 cd/m2

350 cd/m2

300 cd/m2

350 cd/m2

250 cd/m2

Contrast Ratio

800:1

800:1

2500:1

1000:1

1000：1

View Angle (H/V)

170°/170°

160°/160°

176°/176°

170°/160°

170°/160°

Display for 16:9 Ratio

Size

15.6" TFT

17.3" TFT

18.5" TFT

21.5" TFT

24" TFT

Resolution

1366 x 768

1920 x 1080

1980 x 1080

1366 x 768

1920*1080

1920*1080

1920*1080

Colors

16.7M

16.7M

16.7M

16.7M

16.7M

16.7M

16.7M

Luminance

400 cd/m²

400 cd/m²

400 cd/m²

250 cd/m²

350 cd/m²

250 cd/m²

250 cd/m²

Contrast Ratio

500:1

700:1

600:1

1000：1

1000：1

3000：1

1000：1

View Angle (H/V)

170°/160°

160°/140°

160°/140°

170°/160°

178°/178°

176°/176°

170°/160°

SYSTEM

CPU

Intel® IOTG Alder Lake-N Processor N97, QC, 12W / Core i3-N305, OC, 9W up to 15W

Memory

Single Channel for DDR5 4800MT/s Up to 16GB

Storage

1 x SATA 3.0

OS Support

Windows 10 IoT Enterprise LTSC (64-bit, 21H2)

Windows 11 IoT Enterprise LTSC (64-bit, 24H2)

Linux (Support by request)

I/O Ports

⁕ The I/O interface shown may vary depending on the selected motherboard.

RS232

2

USB3.2 Gen1

4

HDMI

1

USB3.2 Gen2

2

DP

1

GLAN

AUDIO

Expansion Slot

M.2

1 x M.2 B key (SATA/PCIe x1), 2242/3042/2280

1 x M.2 E key (PCIe x1, USB 2.0), 2230

MECHANICAL & ENVIRONMENTAL

Operation Temp.

0 ~ 45°C

Storage Humidity

10 ~ 90%, non-condensing

Form Factor

Touch Screen

True flat PCT / 5 wires resistive / no touch screen

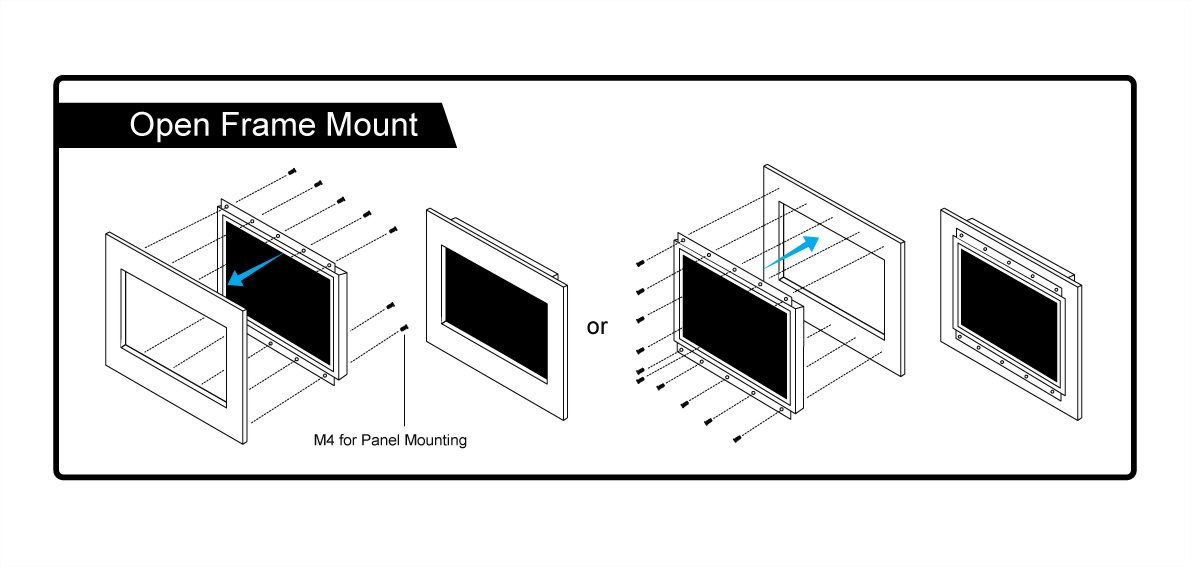

Mounting

Open frame mount Installation

Power adaptor

2 or 3 Pin Power Terminal Block for DC-in 9~36V (Comes with 12/24 power supply, Varies depending on the model)
