Model No. |
IM215PW03 |
IM215PW04 |
|
Display |
|||
Size |

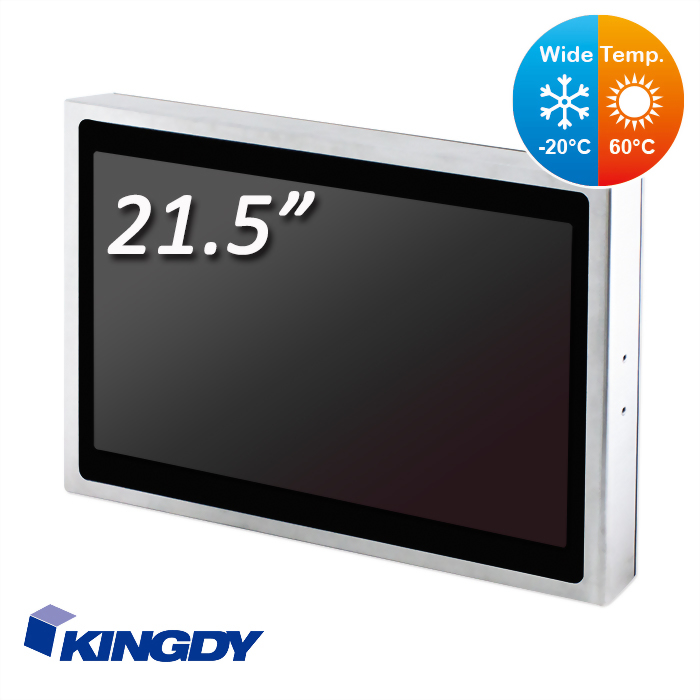

21.5" TFT (16:9) |
||
Resolution |
1920 x 1080 dpi |
||
Colors |
16.7M |
||
Luminance |
350nit |
||
Contrast Ratio |
1000 : 1 |
||
View Angle (H/V) |
178° / 178° |
||
High Brightness (Optional) |
|||
Resolution |
1920 x 1080 dpi |
||
Color |
16.7M |
||
Luminance |
1000nit |
||
Contrast Ratio |
1000 : 1 |
||
Viewing Angle (H/V) |
178° / 178° |
||
I/O Ports |
|||
VGA |
V |
V |
|
HDMI |
|
V |
|
USB (for touch screen) |
V |
V |
|
Power Requirement |
|||
Power Requirement |
DC in 12V |
||
Touch Screen |
|||
Touch Screen |
True flat PCT |
||
OS support |
|||
OS support |
Win Pro 10 / Embedded Win 7, 8, 10 / Win 10 IoT |
||
Mechanical & Environmental |
|||
Operation Temp. |
-20 ~ 60°C |
||
Storage Humidity |
10 ~ 90%, non-condensing |
||
Mount |
VESA mount ( 75 x 75 mm) & Yoke mount |
||
Dimension (WxHxD) |
607 x 400 x 65 mm |
||
Weight |
TBD |
||
Optional |
|||
P/N: 2351206003 |
Full IP65 Waterproof Power adaptor with European power cord ( 60W / 90 ~ 295V AC input / 12V DC output) |
||
P/N: 2352406011 |
Full IP65 Waterproof Power adaptor with European power cord (60W / 90 ~ 295V AC input / 24V DC output) |
||
P/N: 2351206004 |
Full IP65 Waterproof Power adaptor with US power cord ( 60W / 90 ~ 295V AC input / 12V DC output) |
||
P/N: 2352406012 |
Full IP65 Waterproof Power adaptor with US power cord (60W / 90 ~ 295V AC input / 24V DC output) |
||
P/N: 2320000001 |
Optical Bonding |
||
P/N: 302A17005A |
1500 cd/m2 21.5” LCD panel 1920 x 1080 dpi |
||
P/N: 309M106004 |
DC in 9 ~ 36V |
||
Order information |
|||
Standard |
|||
IM215PW03 |
21.5” wide temp full IP65 display, true flat PCT, 1 x VGA, 1 x USB, 1 x 1.8M VGA cable, 1 x 1.8M USB cable, 1 x DC in external power adapter |
||
IM215PW04 |
21.5” wide temp full IP65 display, 1 x VGA ,1 x USB, 1 x HDMI,1 x 1.8M VGA cable, 1 x 2M HDMI cable, 1 x 1.8m USB cable, 1 x DC in external power adapter |
||
High Brightness |
|||
IM215PK03 |
21.5” wide temperature full IP65 display, true flat PCT, 1 x VGA, 1 x USB, 1 x 1.8M VGA cable, 1 x 1.8M USB cable, 1 x DC in external power adapter, 1000 cd/m2 |
||
IM215PK04 |
21.5” wide temperature full IP65 display, 1 x VGA ,1 x USB, 1 x HDMI, 1 x 1.8M VGA cable, 1 x 2M HDMI cable, 1 x 1.8m USB cable, 1 x DC in external power adapter, 1000 cd/m2 |
||
**Specifications are subject to change without notice. |
