SYSTEM

CPU

Intel® IOTG Alder Lake-N Core i3-N305, QC, 9W up to 15W

Frequency

i3-N305, 1.8GHz, up to 3.8GHz

Storage

1 x SATA 3.0

Memory

Max. Capacity

Up to 16GB

Socket

1 x 262-pin DDR5 SO-DIMM

Display

HDMI

1

DisplayPort

1

Audio

Realtek® ALC897 Audio Codec (Co-lay ALC888S)

H/W Monitor

256-level Watchdog Timer

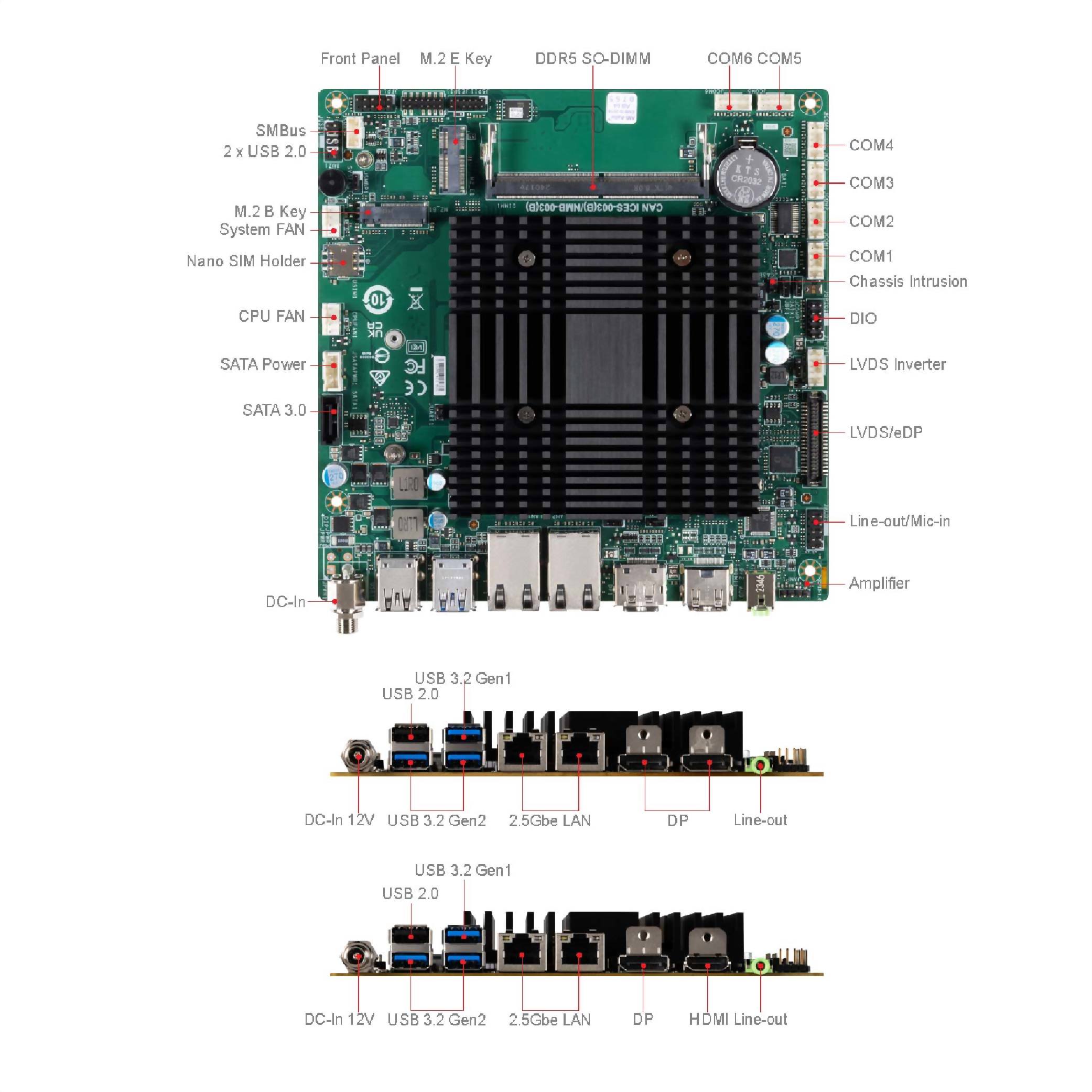

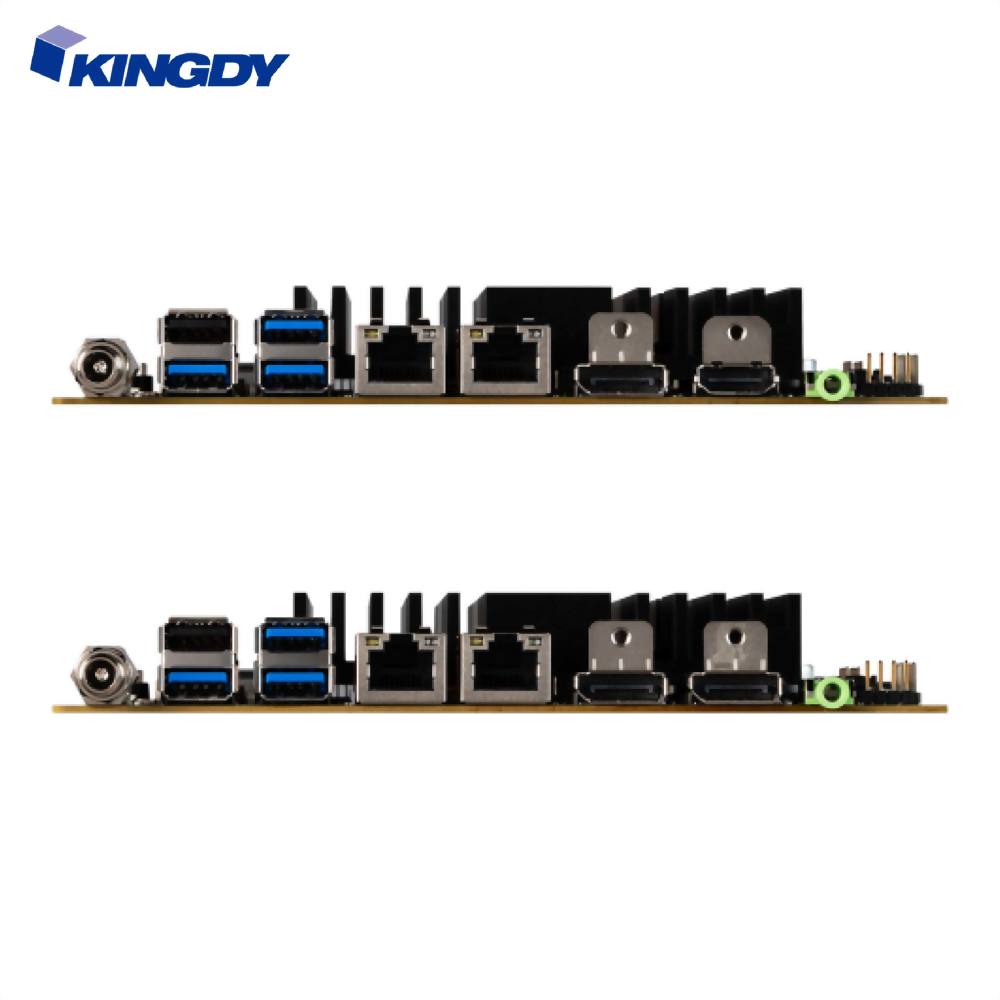

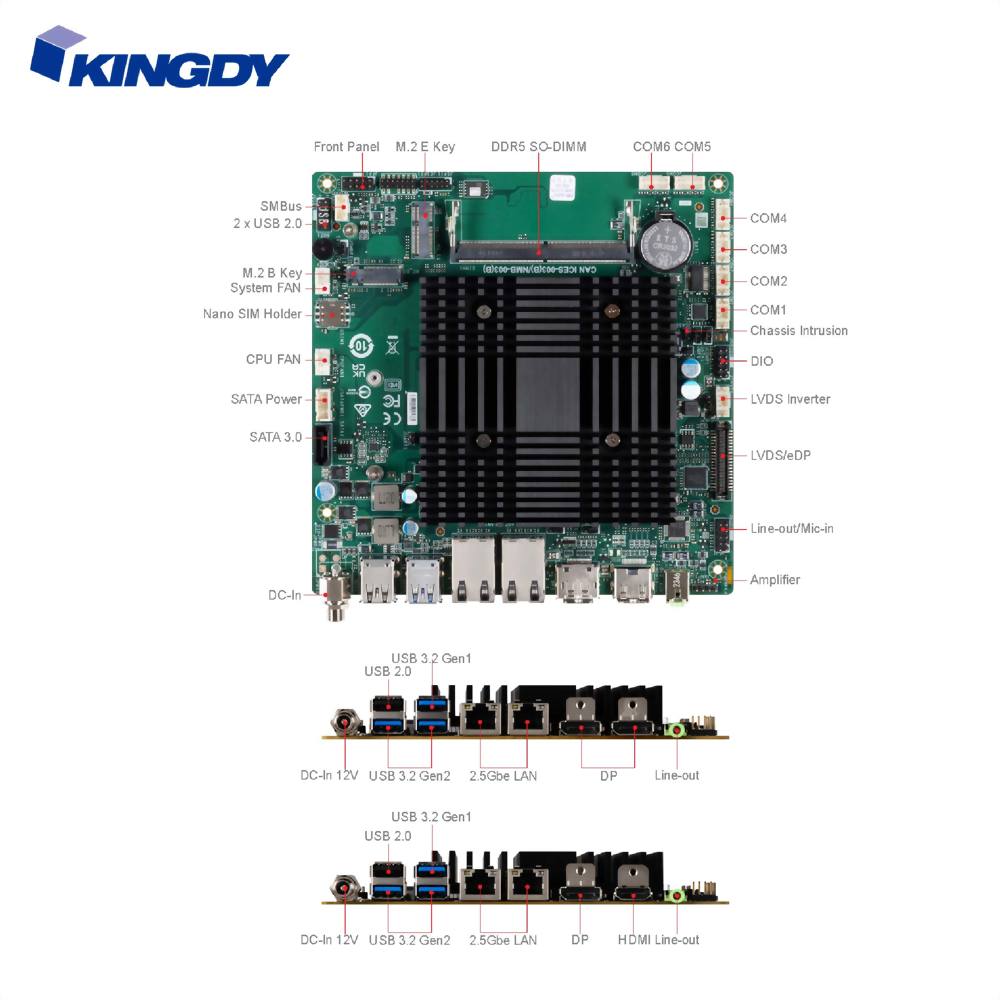

I/O Interface

USB

2 x USB 3.2 Gen 2 (rear)

1 x USB 3.2 Gen 1 (rear)

1 x USB 2.0 (rear)

2 x USB 2.0 (internal)

Serial

6 x COM ports (internal)

COM1: RS-232/422/485, 0V/5V/12V

COM2~6: RS-232

GPIO

8-bit (4 x GPI; 4 x GPO), 5V

Expansion Slot

M.2

1 x M.2 B key (SATA/PCIe x1, USB 3.2 Gen 2 x 1, USB 2.0 w/NANO SIM-Holder), 2242/3042/2280

1 x M.2 E key (PCIe x1, USB 2.0), 2230

MECHANICAL & ENVIRONMENTAL

Operation Temp.

0 ~ 60°C

Storage Humidity

10 ~ 90%, non-condensing

Form Factor

Dimensions

170 x 170 mm (Mini-ITX)

Weight

0.51 kg

OS Support

Windows 10 IoT Enterprise 2021 LTSC (64-bit, 21H2)

Windows 11 IoT Enterprise (64-bit, 23H2, pre-scan)

Linux (Support by request)

Power Supply

DC-in 12V
