Q1: What are the advantages of Intel® Alder Lake-N N97 processors in industrial panel PCs?
A1: The Intel® N97 (12th Gen Alder Lake-N) delivers a perfect balance of low power consumption (12W TDP) and efficient quad-core performance. It provides faster data processing, better multitasking, and improved graphics compared to previous Celeron® or Atom® platforms — ideal for industrial automation and HMI applications.
Q2: What operating systems are supported by N97-based panel PCs?
A2: Kingdy’s N97 panel PCs are compatible with Windows 10/11 IoT and Linux operating systems, providing flexibility for different industrial software environments.
Q3: Is the N97 platform suitable for fanless operation?
A3: Yes. The Intel® N97 is designed for energy-efficient and fanless thermal performance, allowing stable operation in silent, dust-free, and vibration-prone industrial environments.
Q4: Can the N97 Touch Panel PC support multiple connectivity options?
A4: Absolutely. It supports dual LAN, multiple COM ports, USB 3.2, and optional Wi-Fi/4G/5G modules, ensuring reliable communication for field devices and network integration.
Q5: What display and touch technologies are available for N97-based models?
A5: Models are available in sizes from 15” to 24”, featuring 5-wire resistive or True Flat projected capacitive (PCT) touch screens, depending on the application needs.
Q6: Can these N97 panel PCs operate in harsh industrial environments?
A6: Yes. The front panel is IP65-rated for dust and water resistance, with a wide operating temperature and robust aluminum chassis, making it suitable for factory automation, kiosks, and smart manufacturing.
Q7: Is customization available for N97 models?
A7: Yes. Kingdy offers OEM/ODM customization, including logo branding, I/O layout modification, and mounting options (VESA/panel mount) to fit various project requirements.
|

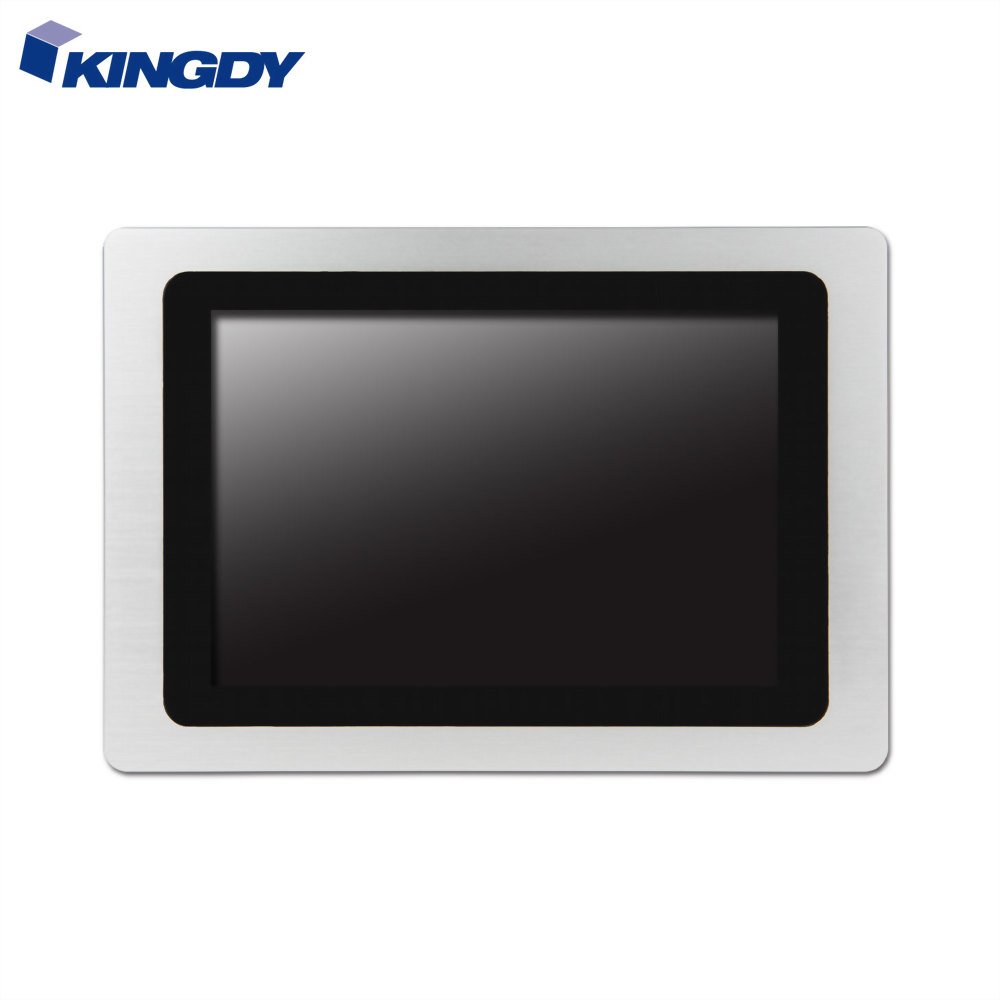

Display for 3:4 Ratio |
|
||||||||||
|
Size |
15" TFT |
17" TFT |
19" TFT |
|
|||||||
|
Resolution |
1024 x 768 |
1280 x 1024 |
1280 x 1024 |
|
|||||||
|
Colors |
16.7M |
16.7M |
16.7M |
|
|||||||
|
Luminance |
300 cd/m2 |
350 cd/m2 |
250 cd/m2 |
|
|||||||
|
Contrast Ratio |
2500:1 |
1000:1 |
1000：1 |
|
|||||||
|
View Angle (H/V) |
176°/176° |
170°/160° |
170°/160° |
|
|||||||
|
Model NO. |
TP150R116S TP170R116S TP190R116S |
TP150R117S TP170R117S TP190R117S |
|
||||||||
|
SYSTEM |
|
||||||||||
|
CPU |
Intel® IOTG Alder Lake-N Processor N97, QC, 12W |
Intel® IOTG Alder Lake-N Core i3-N305, OC, 9W up to 15W |
|
||||||||
|
Memory |
DDR5 4800 MT/s SODIMM Slot up to 16GB |
DDR5 4800 MT/s SODIMM Slot up to 16GB |
|
||||||||
|
Storage |
1 x SATA 3.0 |
1 x SATA 3.0 |
|
||||||||
|
OS Support |
Windows 10 IoT Enterprise LTSC (64-bit, 21H2) Windows 11 IoT Enterprise LTSC (64-bit, 24H2) Linux (Support by request) |
|
|||||||||
|
TPM |
Infineon SLB9672VU2.0 |
|
|||||||||
|
I/O Ports |
⁕ The I/O interface shown may vary depending on the selected motherboard. |
|
|||||||||
|
RS232/422/485 |
1 |
GLAN |
2 |
|
|||||||
|
RS232 |
1 |
AUDIO |
1 |
|
|||||||
|
HDMI |
1 |
USB 3.2 Gen1 |
2 |
|
|||||||
|
DP |
1 |
USB 3.2 Gen2 |
2 |
|
|||||||
|
Expansion Slot |
|
||||||||||
|
M.2 |
1 x M.2 B key (SATA/PCIe x1), 2242/3042/2280 1 x M.2 E key (PCIe x1, USB 2.0), 2230 |
|
|||||||||
|
MECHANICAL & ENVIRONMENTAL |
|
||||||||||
|
Operation Temp. |
0 ~ 45°C |
|
|||||||||
|
Storage Humidity |
10 ~ 90%, non-condensing |
|
|||||||||
|
Form Factor |
|
||||||||||
|
Touch Screen |
15"/ 17"/ 19"：PCT / 5W ( Single touch ) 15"/ 15.6"/ 17"/ 19"/ 21.5"/ 24"：Projected Capacitive Multi-Touch Panel |
|
|||||||||
|
Mounting |
VESA mount (100x100mm) & Panel mount & Clip mount |
|
|||||||||
|
Power Supply |
DC-in 9~36V 3P Power terminal block |
|
|||||||||
|
WIFI Optional |
External Antenna (Wi-Fi): Supports M.2 Wi-Fi module with external antenna connection for enhanced signal performance |
|
|||||||||
