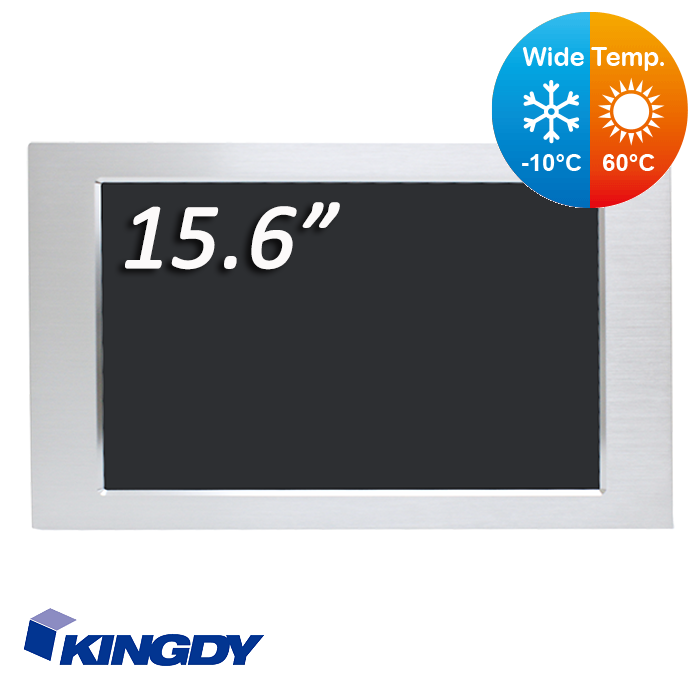

15.6" Touch Monitor (WT)

● Fanless and rugged design
● Wide temperature : -10~60°C
● 5 Wires Resistive touch solution
● IP65 Silver aluminum front bezel
● 304 316 stainless steel front bezel
● Resolution 1920 x 1080 dpi
● VESA mount & Panel mount & Clip mount
● RS232 for remote control function optional
● Optical bonding, high brightness sunlight readable solution
Model : SM157RW03, SM157RW04

Model No.

SM157RW03

SM157RW04

Display

Size

1920 x 1080

Resolution

16.2M

Colors

400 cd/m2

Luminance

500 : 1

Contrast Ratio

140°/120°

View Angle (H/V)

1920 x 1080

I/O Ports

VGA

V

V

DVI

V

HDMI

V

DP

V

USB (for touch screen)

V

V

Power Requirement

Power Requirement

DC in 12V ( 60W )

Touch Screen

Touch Screen

5 Wires Resistive (one touch)

OS support

OS support

Win Pro 7.8.1,10 / embedded Win 7, 8, 10

Mechanical & Environmental

Operation Temp.

-10~60°C

Storage Humidity

10 ~ 90%, non-condensing

Mounting

VESA mount (100X100mm) & Panel mount & Clip mount

Dimension (WxHxD)

454 x 272 x 74 mm

Weight

TBD

Optional

P/N: 2320000001

Optical Bonding

P/N: 3080108001

HMDI 2m cable

P/N: 3080109001

DP 2m cable

P/N: 239SP17002

10pcs x Clips

P/N: 3120600002

RS232 touch screen

P/N: 3011100020

Waterproof sponge

P/N: 309M106004

DC in 9V ~ 36V

Ordering Information

SM157RW03

15.6” wide temperature display, 5W resistive, 1 x VGA, 1 x DVI, 1 x USB, 1 x 1.8m VGA cable,
1 x 1.8m USB cable, DC in power adapter

SM157RW04

15.6” wide temperature display, 5W resistive, 1 x VGA, 1 x DP, 1 x HDMI, 1 x USB, 1 x 1.8m VGA cable,
1 x 1.8m USB cable, DC in power adapter

**Specifications are subject to change without notice.
