Q1: What is the operating
temperature range of the CF17 Wide Temp IP series?
A1:It supports extended
temperature operation suitable for outdoor and extreme industrial environments
(e.g., sub-zero or high-heat conditions).
Q2: Is the wide temperature performance available for all display sizes?
A2:Yes, all sizes from 12.1” to 24” support
the wide temperature CF17 configuration.
Q3: Does the wide temp model remain fully IP65 waterproof?
A3:Yes, the
stainless chassis and M12 connectors maintain IP65 protection on all six sides.
Q4: Are sunlight-readable displays supported?
A4:Yes, high brightness options are available
for outdoor and high-illumination applications.
Q5: Can I choose between resistive and PCT touch?
A5:Yes, both 5-Wire Resistive and True Flat
PCT are supported.
Q6: Is fanless operation still reliable under wide temperature conditions?
A6:Yes, the design ensures stable fanless
thermal performance even in extreme temperatures.
Q7: Can the device be used for marine, transportation, and outdoor kiosks?
A7:Absolutely. It is designed specifically for
harsh, vibration-prone, or weather-exposed installations.
Q8: Is wide voltage DC input supported?
A8:Yes, wide voltage input ensures
compatibility with diverse industrial power systems.
|

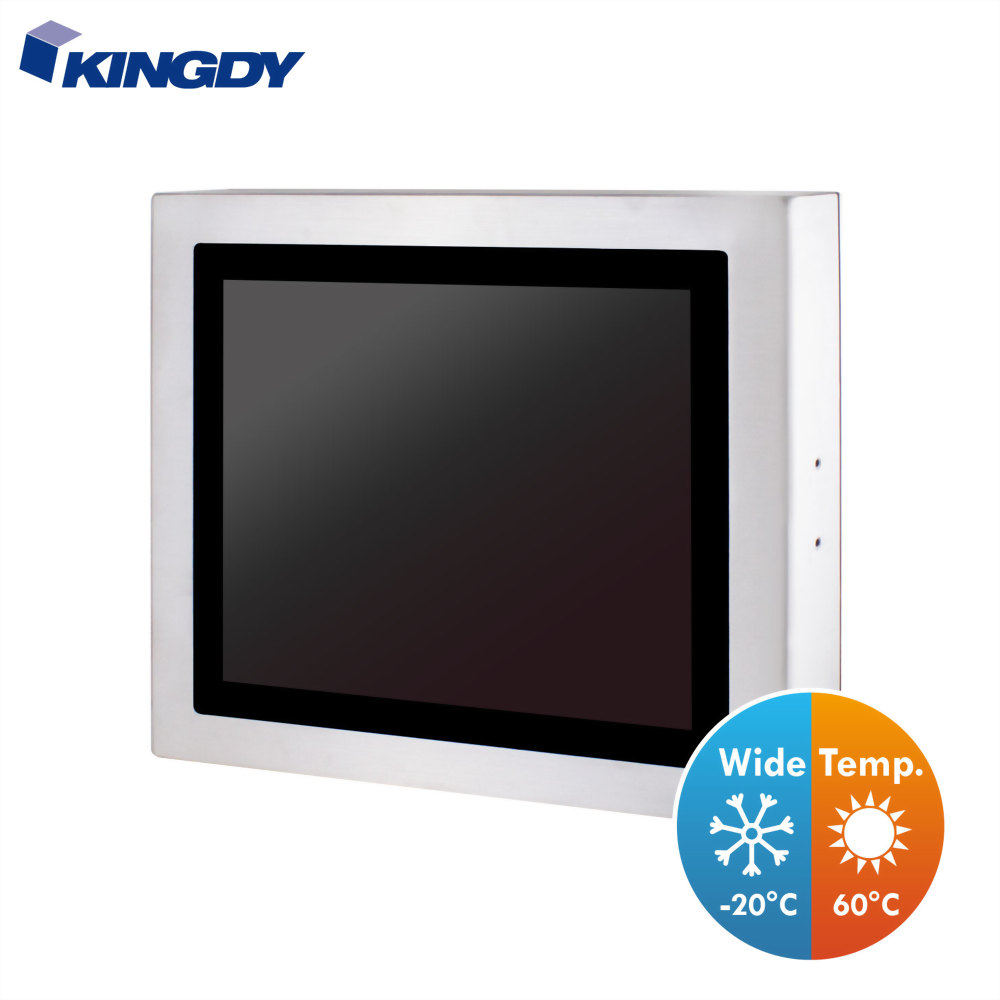

Display for 3:4 Ratio |
|
||||||
|
Size |
12.1" TFT |
|
|||||
|
Resolution |
1024 x 768 |
|
|||||
|
Colors |
16.7M |
|
|||||
|
Luminance |
350 cd/m2 |
|
|||||
|
Contrast Ratio |
800:1 |
|
|||||
|
View Angle (H/V) |
160°/160° |
|
|||||
|
Model NO. |
IP121R124S IP121R125S IP121R126S |
|
|||||
|
SYSTEM |
|
||||||
|
CPU |
Intel® Mobile 13th Core™ i7-1365URE(124)/ i5-1345URE(125)/ i3-1315URE(126) , 28W |
|
|||||
|
Memory |
Single-channel DDR5 5200 MHz Up to 32 GB |
|
|||||
|
Storage |
1 x SATA 3.0 |
|
|||||
|
OS Support |
Windows 10 IoT Enterprise 2021 LTSC (64-bit, 21H2) Windows 11 IoT Enterprise (64-bit, 23H2, Pre-scan) Linux (Support by request) |
|
|||||
|
I/O Ports |
⁕ The I/O interface shown may vary depending on the selected motherboard. |
|
|||||
|
M12 RS232 |
2 |
M12 USB 2.0 |
2 |
|
|||
|
M12 GLAN |
2 |
|
|||||
|
Expansion Slot |
|
||||||
|
M.2 |
1 x M.2 M key (PCIe Gen4 x4 NVMe), 2280 1 x M.2 B key (PCIe x1, USB 2.0, w/NANO SIM-Holder), 2242/3042 1 x M.2 E key (PCIe x1, USB 2.0, w/CNVi), 2230 |
|
|||||
|
MECHANICAL & ENVIRONMENTAL |
|
||||||
|
Operation Temp. |
-20 ~ 60°C |
|
|||||
|
Storage Humidity |
10 ~ 90%, non-condensing |
|
|||||
|
Form Factor |
|
||||||
|
Touch Screen |
15"/17"/19"：PCT / 5W ( Single touch ) 12"/15"/17"/19"/21.5"/24"：Projected Capacitive Multi-Touch Panel |
|
|||||
|
Mounting |
VESA mount (100x100mm) & Yoke mount |
|
|||||
|
Power Supply |
Full IP67 Waterproof Power adaptor : Specifications may vary by country ( 150W / 100 ~ 305V AC input / 12V DC output) / (150W / 100 ~ 305V AC input / 24V DC output) |
|
|||||
|
WIFI Optional |
External Antenna (Wi-Fi): Supports M.2 Wi-Fi module with external antenna connection for enhanced signal performance |
|
|||||
